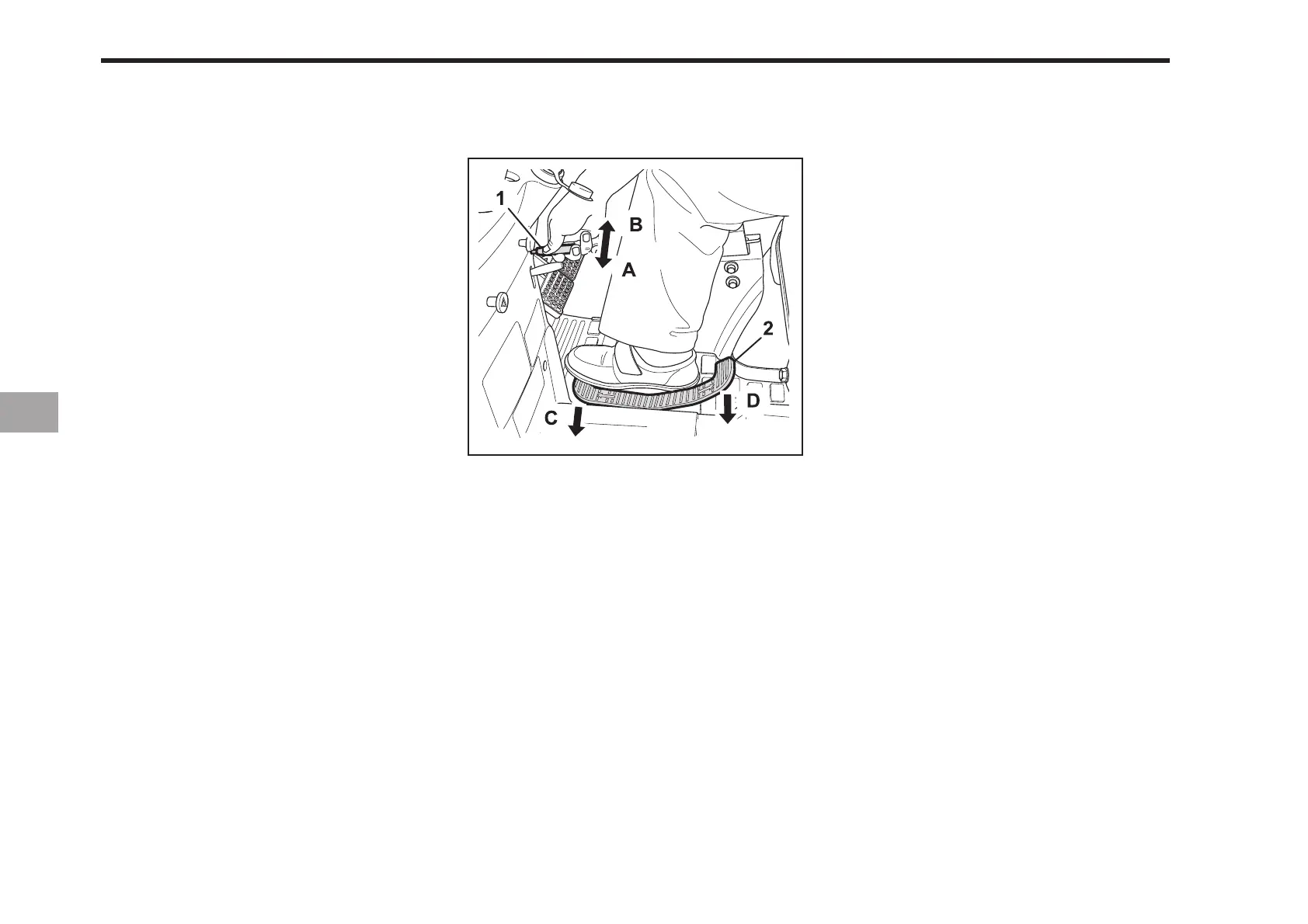

(1) Speed Set Lever
(2) Speed Control Pedal
(A) ON (C) Increase
(B) OFF (D) Decrease
LIVE P.T.O(CK20H)
“Live” P.T.O operation can be obtained
with HST transmission tractor. Depress
clutch and move P.T.O gear shift lever to
“ON” position. Release the clutch end the
P.T.O will be engaged. Forward or Re-
verse movement can now be obtained
with the speed control pedal. To stop the
tractor movement without disengaging
P.T.O, step out the foot from speed con-
trol pedal and set parking brake.
The P.T.O continues running even if you
change the traveling speed or stop the
tractor.
Before dismounting tractor, shift the
range gear shift ever (Hi-Lo) to the neu-
tral position and set parking brake.
SPEED SET DEVICE
The Speed Set Device is designed for
tractor operating efficiency and opera-
tor comfort. This device will provide a
constant forward operating speed by
mechanically holding the speed control
pedal at the selected position.
To Engage Speed Set Device
1. Accelerate speed to desired level us-
ing Speed Control Pedal, and push the
speed set lever down to the “ON”
position.
2. Release Speed Control Pedal and de-
sired speed will be maintained.
To Disengage Speed Set Device
1. Place the lever to the off position.
