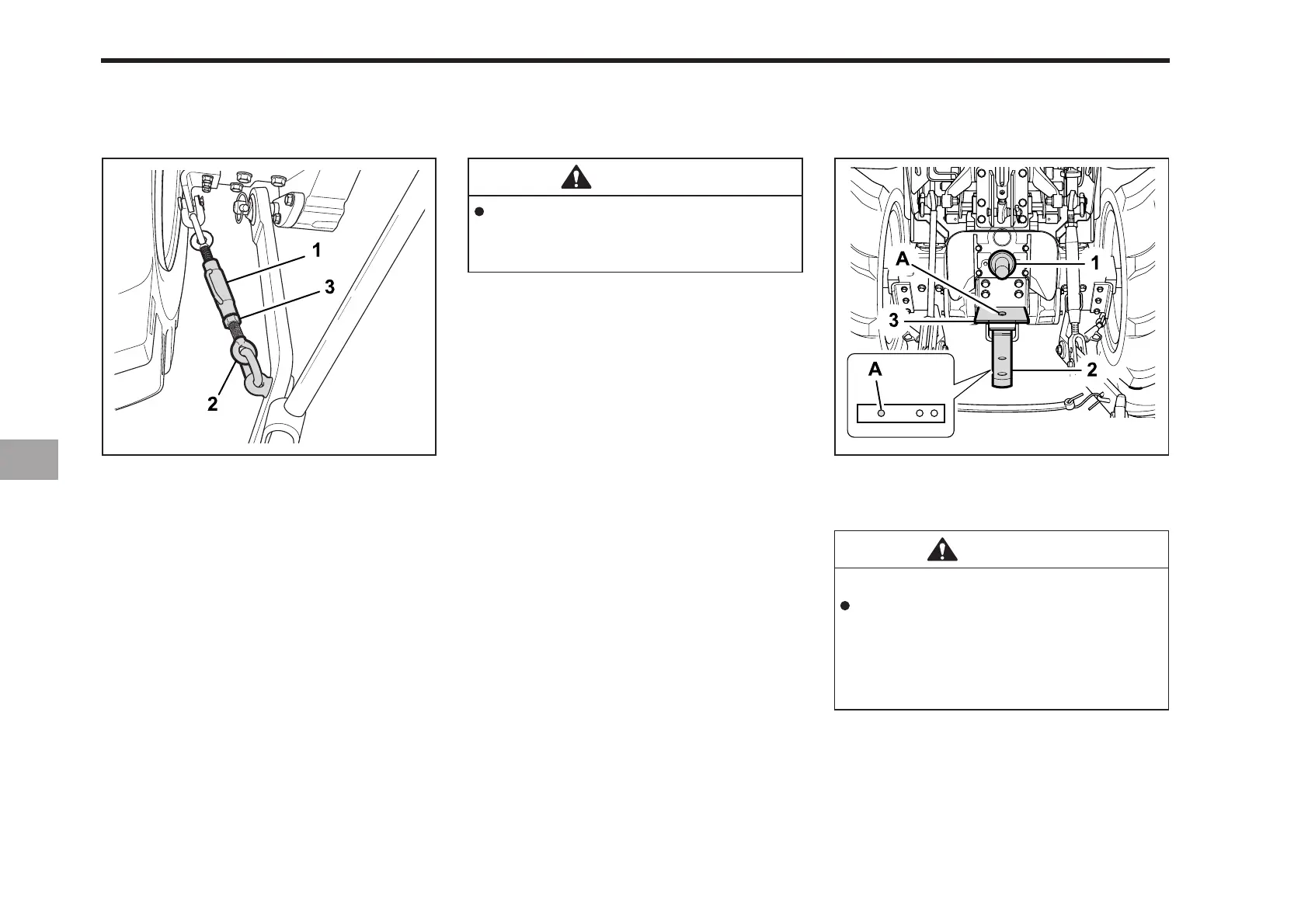

(1) Turn Buckle (3) Check Chains
(2) Nut
WARNING
Use caution when adjusting the
check chains. Heavy implement
can move causing harm.
To adjust the check chains, loosen the
set nuts and twist the turn buckles on
both sides until the desired amount of
sway is reached. (Refer to the table
below). Set the adjustment by tightening
the set nuts against the turn buckles.
DRAWBAR
ADJUSTING DRAWBAR LENGTH
The drawbar load is referred to “IMPLE-
MENT LIMITATIONS” section.
CHECK CHAINS
Check chains are used to adjust the side
sway that your implement has while in
use. Check Chains are also used to cen-
ter the implement on the rear of the
tractor.
(1) P.T.O Shaft (3) Drawbar Pin
(2) Drawbar (A) Holes
WARNING
To avoid personal injury:
Never pull from the top link, the
rear axle or any point above the
drawbar. Doing so could cause
the tractor to tip over rearward
causing personal injury or death.
To Next Page
