OPERATING THE TRACTOR 7-23
196O731A

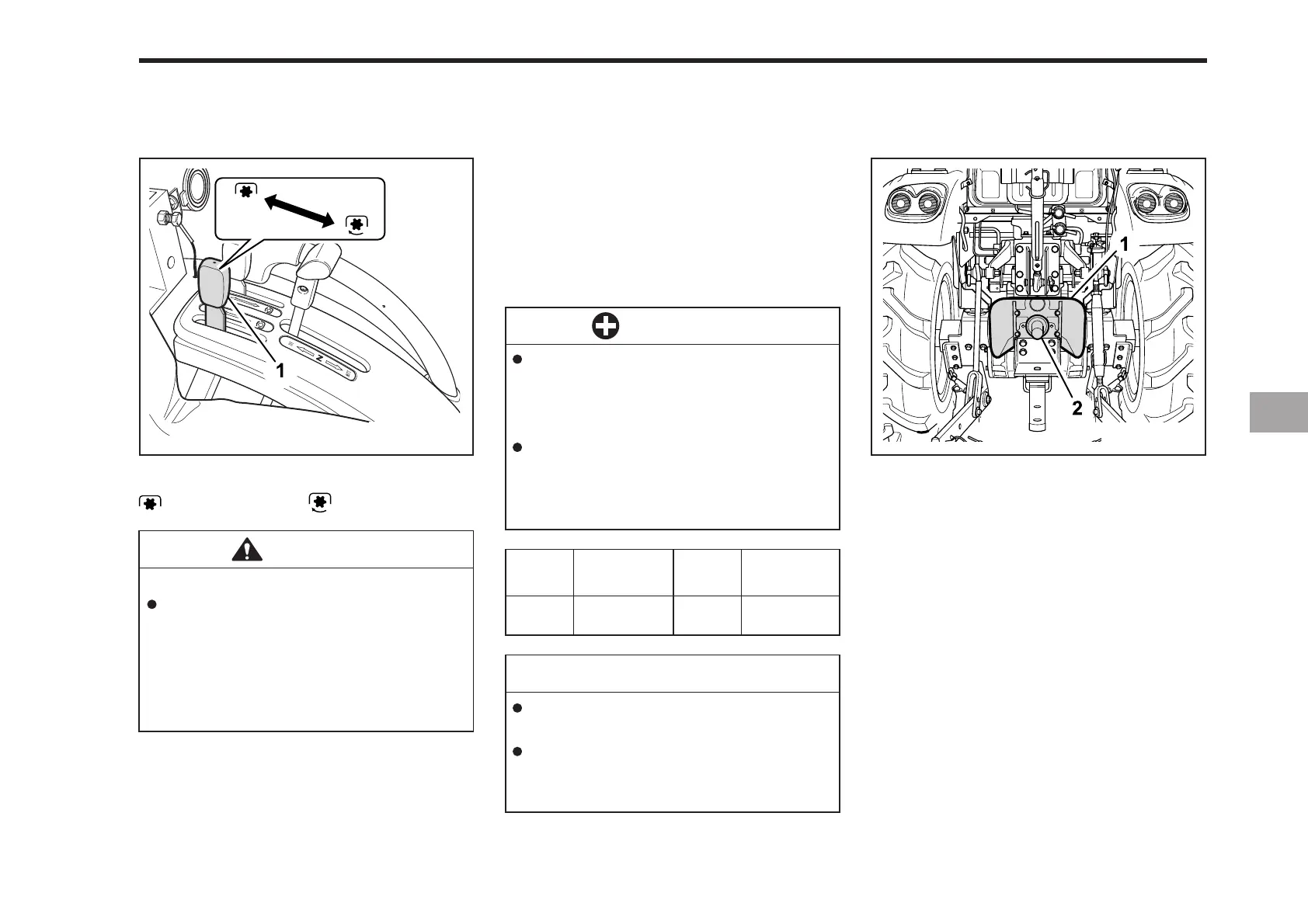

P.T.O OPERATION
P.T.O GEAR SHIFT LEVER
1. The tractor has a 540 rpm speed position.
2. P.T.O shifting needs clutch operation.
Press the clutch pedal down completely
to stop the tractor movement and any P.
T.O driven equipment movement before
shifting the P.T.O gear shift lever.
(1) P.T.O Gear Shift Lever
OFF ON
Model
Engine Speed
min-1 (rpm)
Shaft
6-Spline
P.T.O Speed
min-1 (rpm)
CK20
CK20H
540
2,646
CAUTION
To avoid personal injury:
Disengage P.T.O, stop engine,
and allow all rotating compo-
nents to come to a complete stop
before connecting, disconnecting,
adjusting, or cleaning any P.T.O
driven equipment.
IMPORTANT
To avoid shock loads to the P.T.O,
reduce engine speed when engag-
ing the P.T.O, then open the throttle
to the recommended speed:
To avoid damage of transmission,
before shifting the P.T.O gear
shift lever, fully disengage the
main clutch.
NOTE
There is a P.T.O-1 (540 rpm) indicated
mark on the tachometer board.
Tractor engine will not start if P.T.O
gear shift lever is in the engaged “ON”
position.
196O734A
(1) P.T.O Shaft Cover (2) P.T.O Shaft Cap
P.T.O SHAFT COVER AND SHAFT
CAP
You should keep the P.T.O cover in place
at all times and remember to replace the
cap when the P.T.O shaft is not in use.
To Next Page
