Krone X-Disc 6200 User Manual

Start-up
23
Pos: 12.19 /Üb erschriften/Üb erschriften 3/P-T/P endelrahmen @ 12\mod_1 224680113922_ 78.doc @ 1529 54
4.2.2 Pendulum frame
Pos: 12.20 /BA/I nbetriebnahm e/Vorsätze/X-Disc 6200/Pendelra hmen/Anba u Pendelrah men Bild X-Disc 6 200 @ 12\ mod_12246780977 35_78.doc @ 1 52786
54
2
3
1
6
I
2
EF400131
II

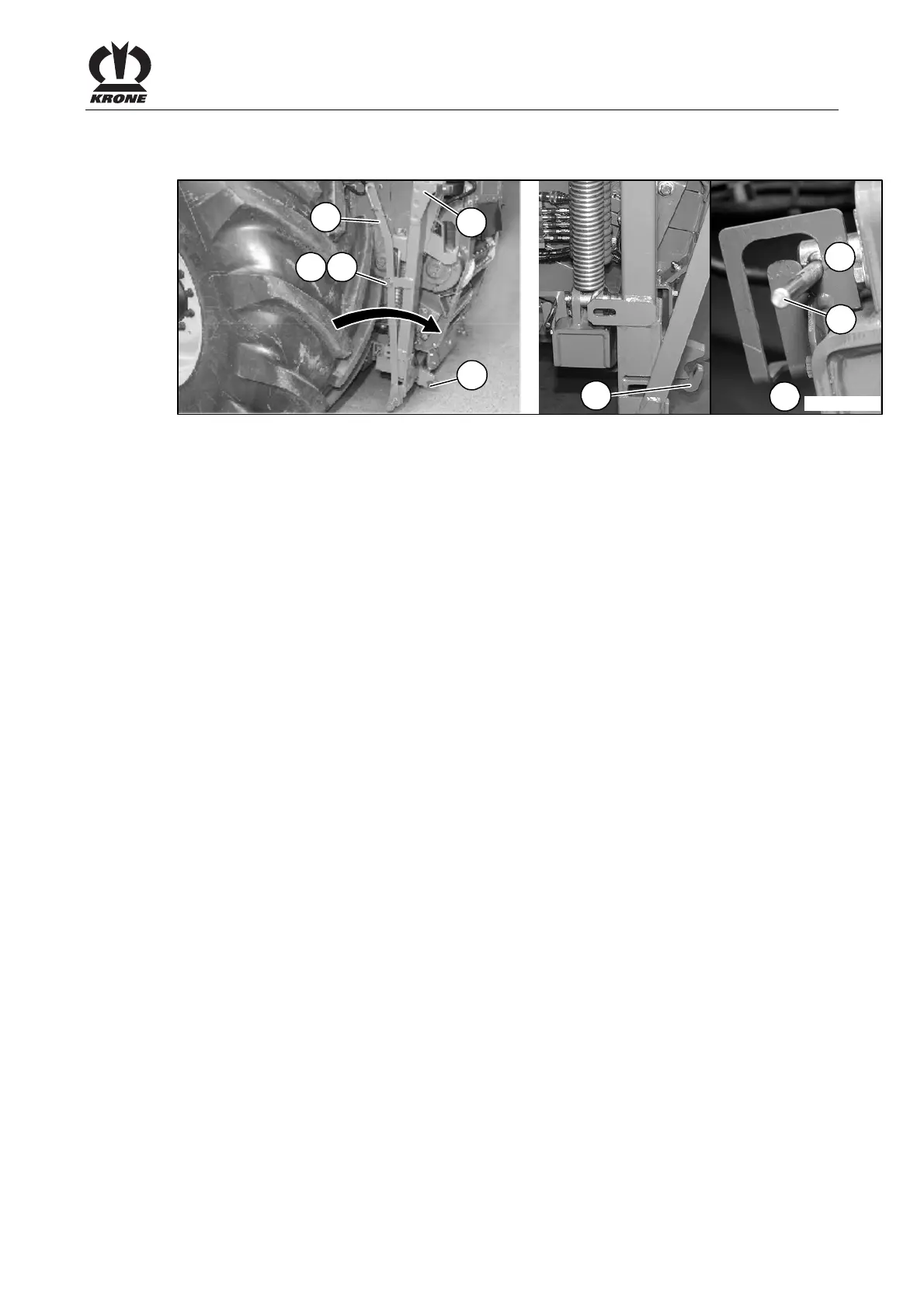

Fig. 7
Pos: 12.21 /BA/I nbetriebnahm e/Vorsätze/X-Disc 6200/Pendelra hmen/Anba u Pendelrah men Feldhäcksler @ 12\mod_122 4677556375_ 78.doc @ 152 722
• Lower the pendulum frame (1) of the forage harvester all the way.
• Align the pendulum frame (1) of the forage harvester horizontally.
• Locking hooks (2) must be opened. If necessary, open them with the locking lever (3).
• Disconnect the spring-loaded plug (5), pull the locking lever (3) from the locking pin (4)
and swing it forwards.
Pos: 12.22 /BA/I nbetriebnahm e/Vorsätze/X-Disc 6200/Pendelra hmen/Pend elrahmen muss verriegelt sein Stellung I @ 12 \mod_1224677 890953_78. doc @ 152764
• The pendulum frame (1) must be locked and the locking pin (6) must be in position I
(locked).
