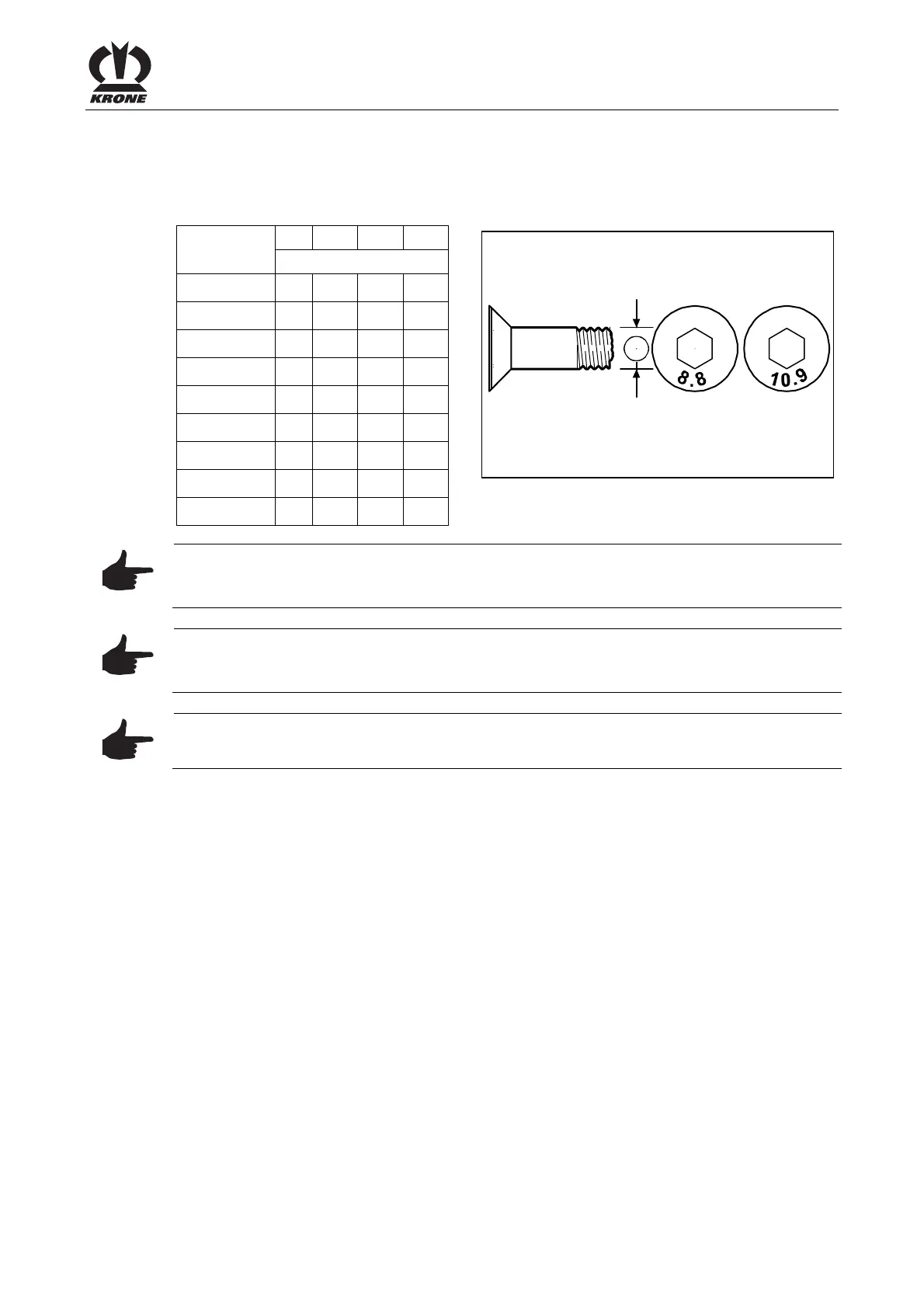

8.4 Torques (Countersunk Screws)
Tightening torque MA is stated in Nm
(unless otherwise indicated).
A = Thread size
(The stability class can be seen on the head of the
screw.)
A
Ø
5.6 8.8 10.9 12.9
MA (Nm)
M 4
2.5 3.5 4.1
M 5
4.7 7 8
M 6
8 12 15
M 8
20 29 35
M 10
23 39 58 67
M 12
34 68 100 116
M 14
108 160 188
M 16
168 248 292
M 20
340 488 568
A
BM 400 0234
Note
The table above applies only to countersunk screws with hexagonal socket heads and metric
threading that are tightened by the hexagonal socket head.
Pos: 20.18 /BA/ Wartung/Mutt ern und Schrau ben (50h) anzieh en @ 0\mod _1196949864 530_78.doc @ 1 5293
Note
Regularly check that nuts and bolts are tightly in place (approx. every 50 hours) and tighten
them if necessary.
Pos: 20.19 /BA/ Wartung/Selbstsic hernde Mutter n grundsätzlic h erneuern @ 1 2\mod_122 4746720607_ 78.doc @ 15347 7
Note
Self-locking nuts must always be replaced.
