4.2.4 Aligning the Cutting System
1
3
2
GPS00019

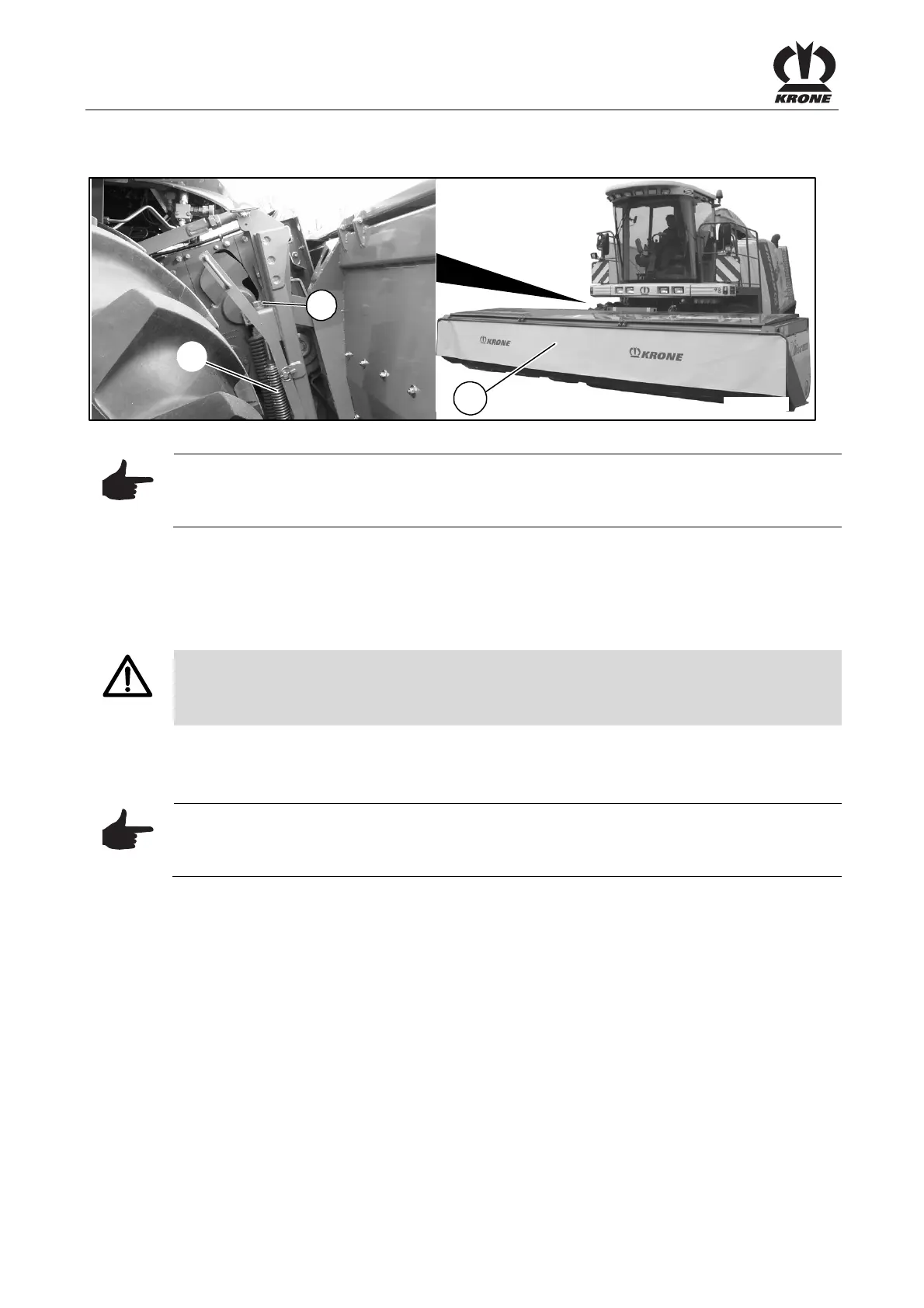

Fig. 11:
Note
When attaching the cutting system for the first time and whenever chaging the forage
harvester, the cutting system must be aligned.
The cutting system (1) must be aligned horizontally to the forage harvester.
• Raise the cutting system (1) with the lifting hydraulics and check that it is aligned
horizontally. If necessary, compensate for any lateral inclination by changing the
pretension on the tension spring (2).
DANGER! – Unexpected actions on the machine.
Effect: Danger to life, injuries or damage to the machine
• Switch off the engine, remove the ignition key, and secure the machine from rolling away.
• Change the pretension of the tension spring (2) by turning the hexagonal nut (3) as
appropriate.
Note
For additional settings to operate the cutting system, see the operating instructions entitled
"Self-propelled forage harvester BiG X".
