Maintenance

Pos: 20.27.1 /Üb erschriften/Üb erschriften 2/K-O/ L-Eckgetrieb e @ 12\mod_ 12247476118 10_78.doc @ 15 3610

8.7 L corner gearbox

Pos: 20.27.2 /B A/Wartung/Ölsta ndskontrolle b ei waagerec hter Stellung vorn ehmen @ 12\m od_122474 6945841_78.doc @ 153501

Note

Perform oil level check and change the oil while the machine is in a horizontal position!

Pos: 20.27.3 /B A/Wartung/Öl kontrolle_Wechsel/ Vorsätze/X-Disc/ Bild L-Ec kgetriebe X-Disc 6200 @ 12\mo d_122474769 4982_78.doc @ 153632

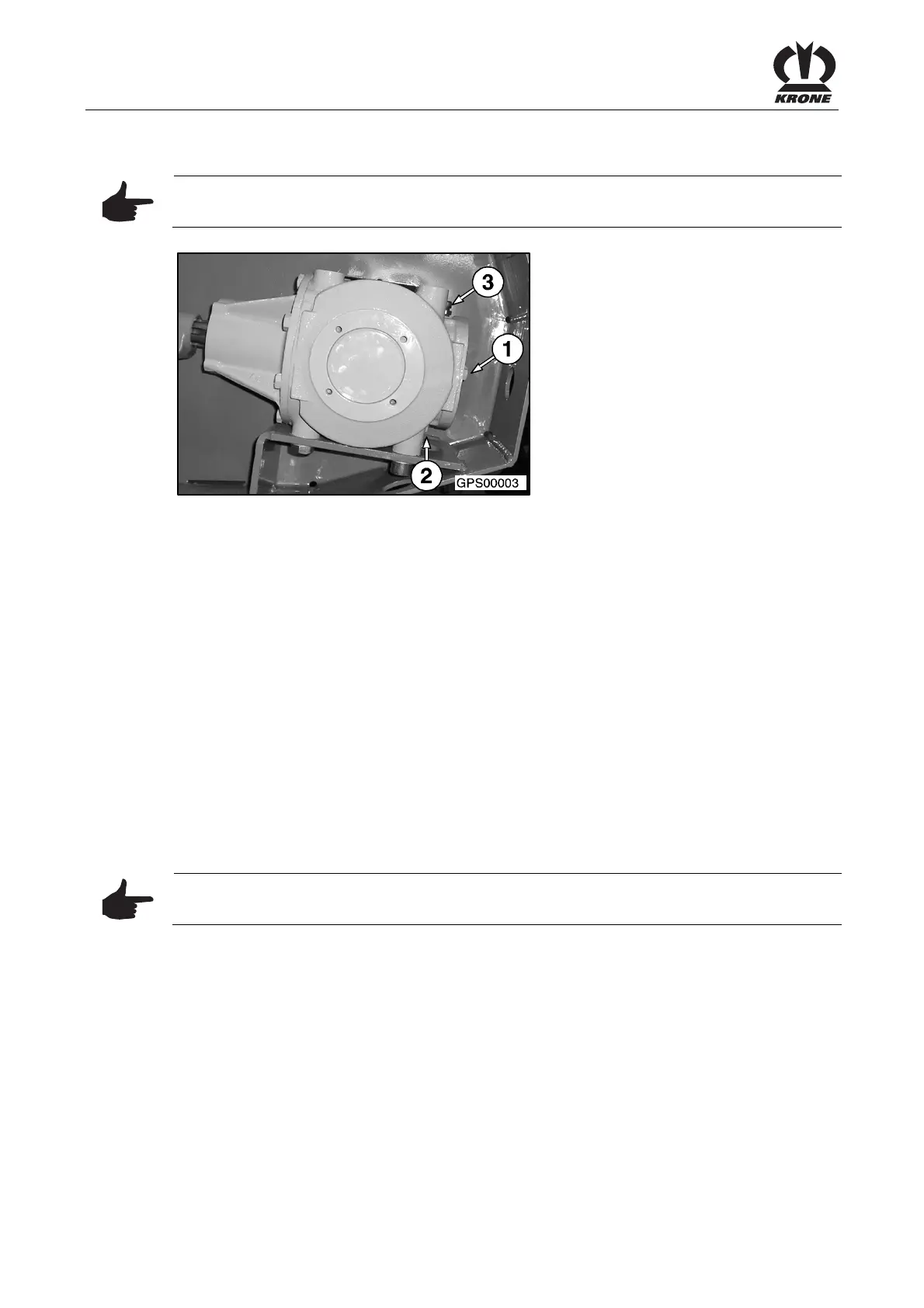

Fig. 17:

Pos: 20.27.4 /B A/Wartung/Öl kontrolle_Wechsel/ Ölkontrolle S AE 90 @ 0\ mod_1197008973 815_78.doc @ 15649

Oil level check:

• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".

• Unscrew the inspection screw (1)

• Oil level up to bore hole (1)

• If necessary, top up the oil (SAE 90)

• Screw the check screw (1) back in.

Pos: 20.27.5 /B A/Wartung/Öl kontrolle_Wechsel/ Ölwechsel Version1 (Belüftu ngsfilter) @ 0\mod_1197010 026283_78.d oc @ 15747

Oil change:

• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".

• Screw out the screw plug (2).

• Collect the used oil in a suitable drip pan

• Screw in the screw plug (2)

• Fill oil (3) (oil level up to hole (1))

• Screw the inspection screw (1) and ventilation filter (3) back in.

Pos: 20.27.6 /B A/Wartung/Öl kontrolle_Wechsel/ Ölqualität /Ölm enge: sieh e Kapitel @ 0\ mod_1197007 859486_78.doc @ 15531

Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for

Gearboxes"

Pos: 20.27.7 /B A/Wartung/Öl kontrolle_Wechsel/ Altöl ordnungsg emäß entsorg en @ 0\m od_1197008117 002_78.doc @ 1 5550

Note

The used oil must be disposed of correctly
