7 Settings
Pos: 18.2 /BA/Sich erheit/Gefahr enhinweise/Vors ätze/Gefahr Wartung allg emein Vorsätze/F eldhäcksler (M esserteller) @ 13\mod_122 5453555895_ 78.doc @ 15638 5
Danger! - When performing repair, maintenance or cleaning work or when making
technical modifications to the machine, drive elements may start moving (caution:
cutting discs continue to run).
Effect: Danger to life, injuries or damage to the machine.
• Move the machine to the working position and lower it to the ground
• Switch off the forage harvester engine and remove the ignition key.
• Secure the forage harvester against accidental start-up and against rolling away.
• Switch off the PTO and disengage it.
• After the repair, maintenance, cleaning work or technical modifications are completed,
mount all protective covers and protective devices properly again.
• Avoid skin contact with oils, greases, cleaning agents and solvents.
• In the event of injuries or burns due to oils, cleaning agents or solvents, contact a doctor
immediately.
• All other safety instructions must also be followed to avoid injuries and accidents.
Pos: 18.3 /Übersc hriften/Übersc hriften 2/A-E/A bstand Abstr eifleisten - Fördersc hnecke einst ellen @ 13\m od_12256925 37051_78.doc @ 156478
7.1 Adjusting the distance between the scraper bars and the auger conveyor
Pos: 18.4 /BA/Eins tellungen/V orsätze/Abstand Abstreifleisten - Fördersch necke einstellen Bild @ 13\mo d_12256926342 07_78.doc @ 1 56502

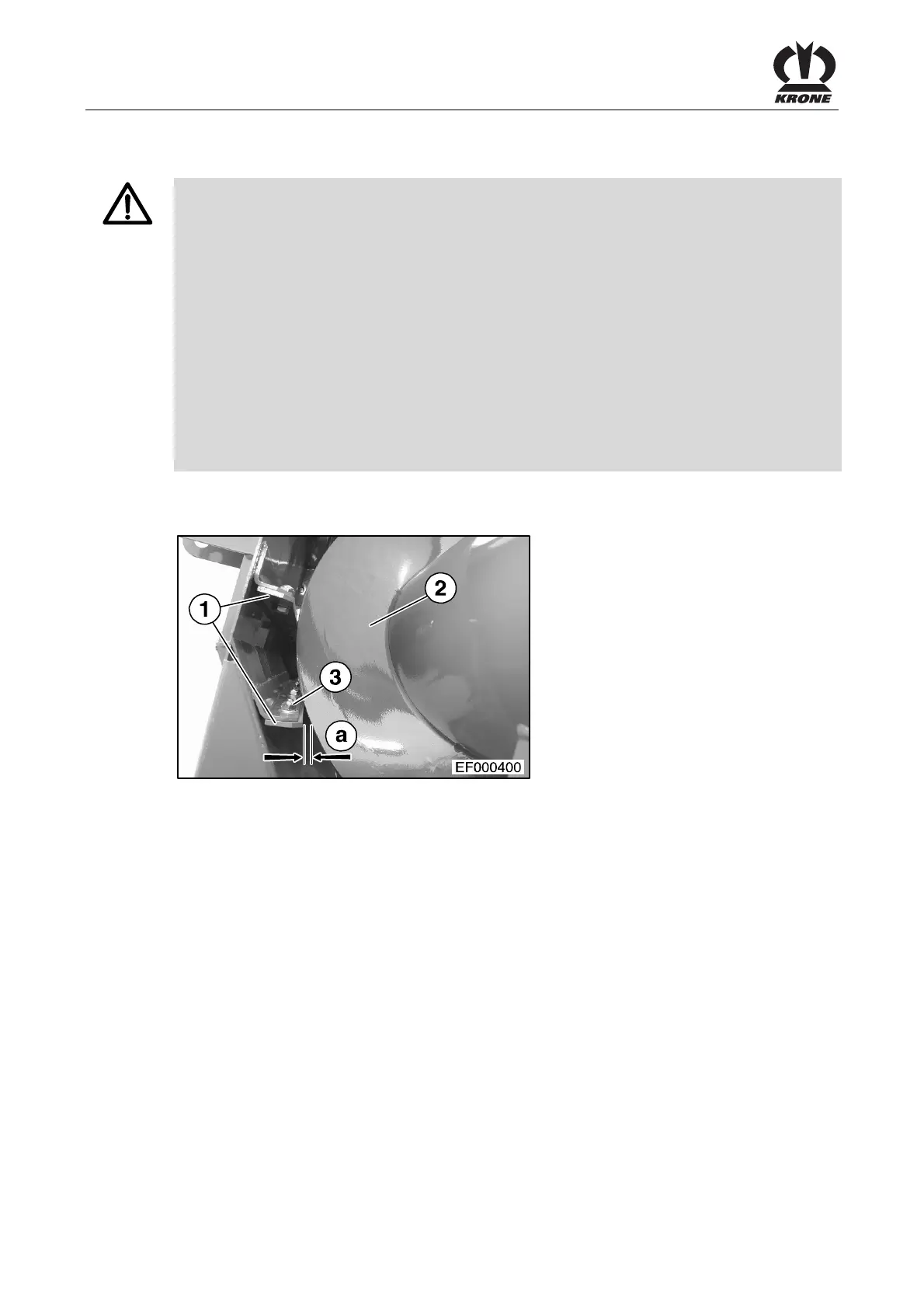

Fig. 15:
Pos: 18.5 /BA/Eins tellungen/V orsätze/Abstand Abstreifleisten - Fördersch necke einstellen @ 13\mod_122 5692284832_ 78.doc @ 156 459
The hopper has two scraper bars (1), one on the right and one on the left of the transfer
opening, which can be adjusted via the oblong holes. The distance between the scraper bars
(1) and the outer coating of the auger (2) should be "a = 3 mm".
• Loosen the screw connections (3) and adjust the distance to the scraper bars (1).
