6.2 Detaching the machine
Pos: 16.11 /BA/Sic herheit/Vorsät ze/Maschine a bstellen X-Di sc @ 12\mod_ 12247429500 45_78.doc @ 15 3301
DANGER! – Unexpected movements of the machine
Effect: Danger to life, serious injuries
• No one is permitted inside the danger zone.
• Place the machine on solid and level ground only and with the parking supports
extended.
• You should not unhitch the machine until the engine has been switched off and the
ignition key has been removed.
• Secure the forage harvester to prevent it from rolling back.
• Use extreme caution when attaching implements to or detaching them from the forage
harvester! The accident prevention regulations must be complied with absolutely.
• When detaching the machine, do not walk between the forage harvester and the
machine!
Pos: 16.12 /BA/B edienung /V orsätze/Schnei dwerk/Abbau T 1 Bild X-Disc 62 00 @ 12\mod_ 12247431854 04_78.doc @ 153325

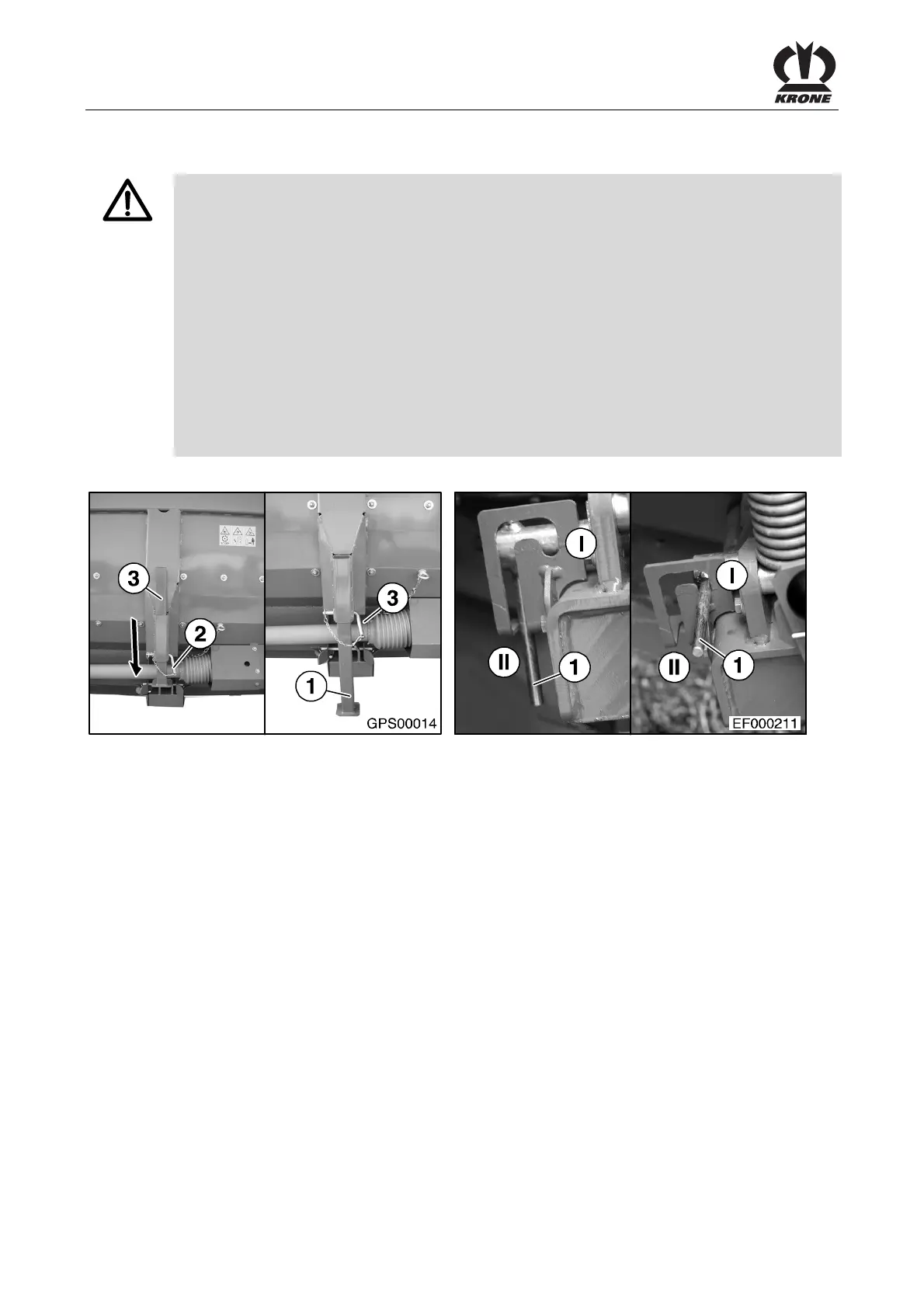

Fig. 13:
Pos: 16.13 /BA/B edienung /V orsätze/Schnei dwerk/Abbau T 1 X-Disc 6200 @ 12\mod_1224 743384216_78. doc @ 15334 6
• Remove bolts (2), pull out parking supports (3) down to the ground.
• Insert bolts (2) and secure in place.
• Lock the pendulum frame and move the locking pin (1) from position II (unlocked) to
position I (locked).
