Maintenance – lubrication chart
58
Pos: 20.37.1 /Üb erschriften/Üb erschriften 1/U-Z/ Wartung - Sc hmierplan @ 0 \mod_1197 359304198_78.doc @ 18232
9 Maintenance – lubrication chart
Pos: 20.37.2 /Üb erschriften/Üb erschriften 2/P-T /Spezielle Sich erheitshinweis e @ 0\mod_1 19666049576 0_78.doc @ 9 134
9.1 Special Safety Instructions
Pos: 20.37.3 /B A/Sicherheit/Ge fahrenhinweise /Vorsätze/Gef ahr Wartung allg emein Vorsä tze/Feldhäcksler (M essertell er) @ 13\mod_1 225453555895_ 78.doc @ 1563 85
Danger! - When performing repair, maintenance or cleaning work or when making
technical modifications to the machine, drive elements may start moving (caution:
cutting discs continue to run).
Effect: Danger to life, injuries or damage to the machine.
• Move the machine to the working position and lower it to the ground
• Switch off the forage harvester engine and remove the ignition key.
• Secure the forage harvester against accidental start-up and against rolling away.
• Switch off the PTO and disengage it.
• After the repair, maintenance, cleaning work or technical modifications are completed,
mount all protective covers and protective devices properly again.
• Avoid skin contact with oils, greases, cleaning agents and solvents.
• In the event of injuries or burns due to oils, cleaning agents or solvents, contact a doctor
immediately.
• All other safety instructions must also be followed to avoid injuries and accidents.
Pos: 20.37.4 /Üb erschriften/Üb erschriften 2/F-J/ Gelenkwelle @ 0\mod_11 99781879794 _78.doc @ 3454 2
9.2 PTO shaft
Pos: 20.37.5 /B A/Wartung/Vorsä tze/Abschmier en Gelenkwelle n X-Disc 6200 @ 12\mod_ 12248406024 16_78.doc @ 15 3895
GPS00015
100 h
250 h
25 h

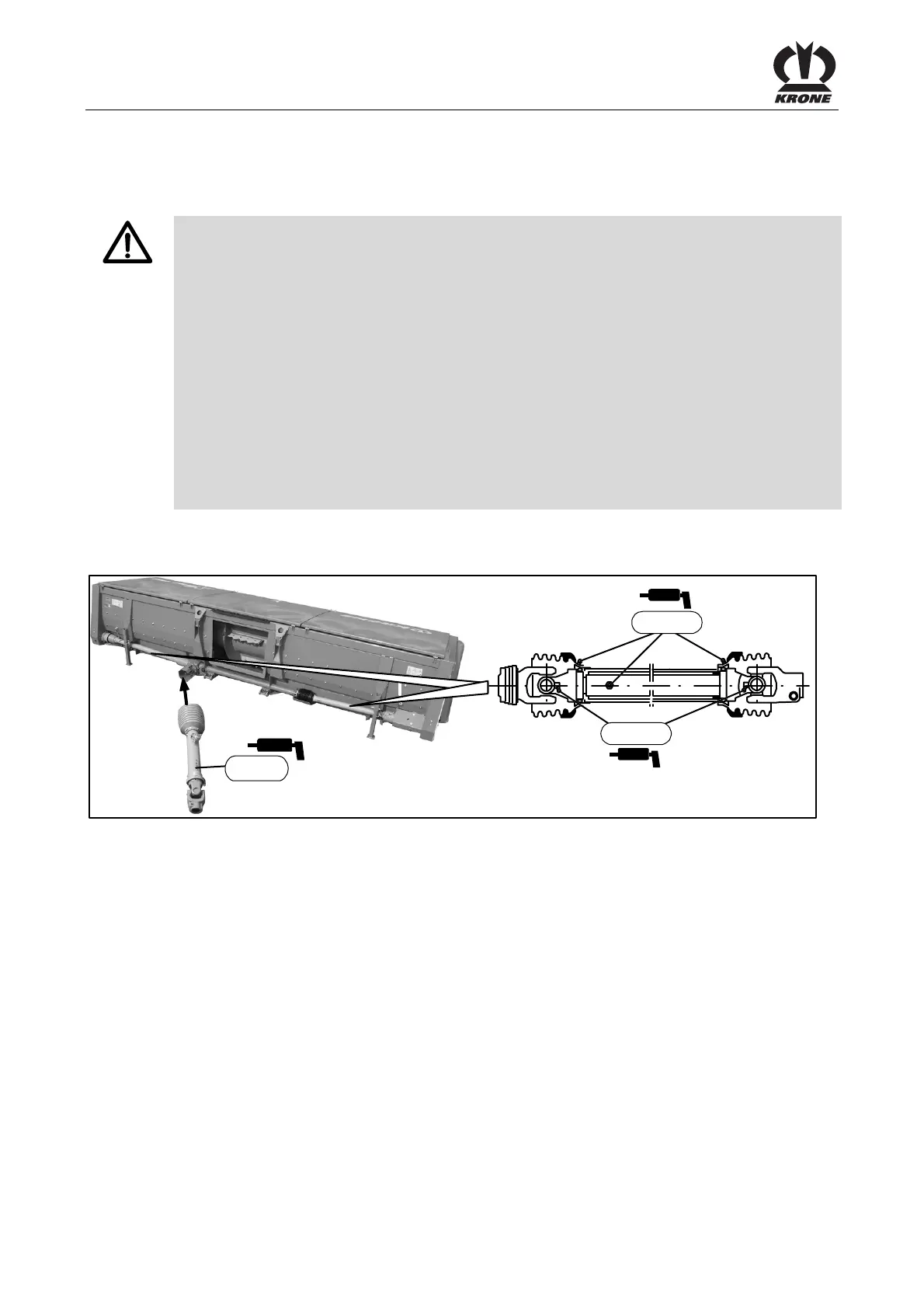

Fig. 33:
Lubricate the PTO shafts at the intervals indicated in the drawing with a multi-purpose grease.
Follow the operating instructions of the PTO shaft manufacturer.
