8.9.2 Checking the oil level
Pos: 20.31.7 /B A/Sicherheit/Ge fahrenhinweise /Mähwerke/Sc hnell rotierend e Messerteller/M essertrommel _2 @ 0\mod_ 11970225692 52_78.doc @ 16 165
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
Lower guards. Nobody should be in the danger zone around the machine.
Pos: 20.31.8 /B A/Sicherheit/Ge fahrenhinweise /Mähwerke/Sc hnell rotierend e Messerteller/M essertrommel n_1 @ 0\mod _1197017696 736_78.doc @ 1 6001
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
• Switch off the engine and remove the ignition key.
• The cutting discs/blade drums continue to run!
• Do not leave the driver’s cab until the cutting discs/blade drums have come to a complete
stop.
Pos: 20.31.9 /B A/Wartung/Mäh werke/Ölkontrolle Mähholm Eas ycut @ 3\ mod_1204723206 930_78.doc @ 72428
Allow the machine to run briefly. Do not leave the driver’s cab until the cutting discs/blade drums
have come to a complete stop.
EC-0-003

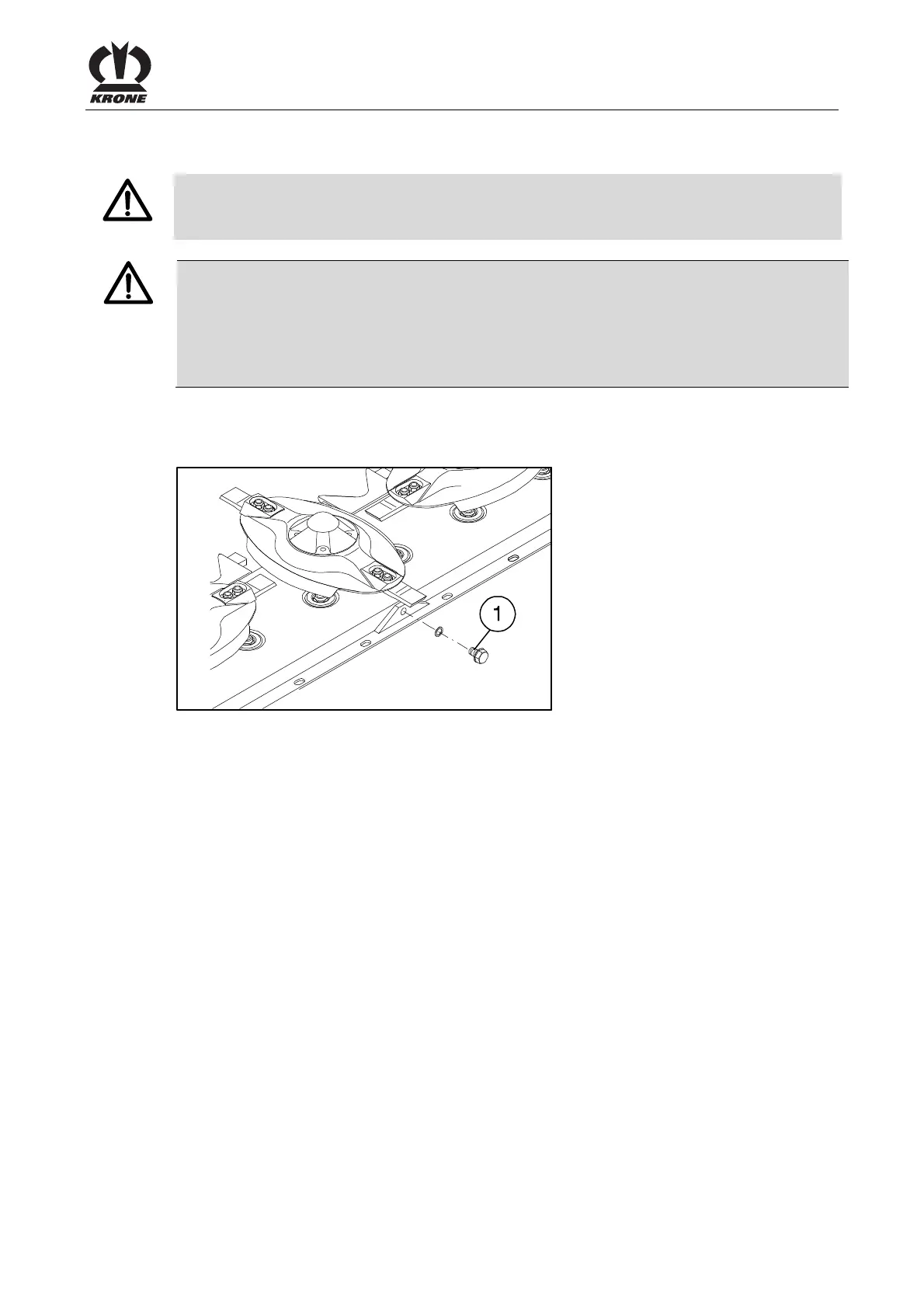

Fig. 20
Check the oil level before every use
• Remove the oil level inspection screw (1) from the cutting disc hub.
• The oil level must be up to the bore hole. If required, top up the oil (SAE 90)
• Screw in the oil level inspection screw (1) again and tighten securely.
