8.10 Checking the Cutter Blades and Blade Holder
Pos: 20.33.2 /B A/Sicherheit/Ge fahrenhinweise /Mähwerke/Fe hlende und besc hädigte M ähklingen und M ähklingenhalteru ngen @ 0\m od_11972657 22813_78.doc @ 16342
Warning! - Missing and damaged cutter blades and cutter blade retainers.
Effect: Danger to life, serious injuries or damage to the machine
• Check cutter blades at least once per day and
• check retaining bolts every time you change the blades or after contact with foreign
objects.
• Immediately replace missing or damaged cutter blades and cutter blade retainers
Pos: 20.33.3 /Üb erschriften/Üb erschriften 3/K-O/M ähklingen @ 0\mod_11 97265959110 _78.doc @ 1636 1
8.10.1 Cutter Blades
Pos: 20.33.4 /B A/Wartung/Mäh werke/Die Bohru ng der Mäh klingen kann sich durch Verschleiß aufweiten. @ 10\mod_122 1048982715_ 78.doc @ 131 675
The borehole on the cutter blades may spread due to wear.
Pos: 20.33.5 /B A/Sicherheit/Ge fahrenhinweise /Mähwerke/Zu g eringe Materials tärke an de n Mähklingen_ neu @ 3\mod_ 12047271678 98_78.doc @ 72588
Danger! - Insufficient thickness of material on the cutter blades.
Effect: Danger to life or serious injuries.
• The cutter blades must be replaced at the latest when the wear limit is reached (see
mark (1) on the cutter blade; dimension a less than or equal to 7 mm).
Pos: 20.33.6 /B A/Wartung/Mäh werke/Mäh klingen beidseitig verwenbar_n eu @ 3\mod_120 4728012601_ 78.doc @ 726 08

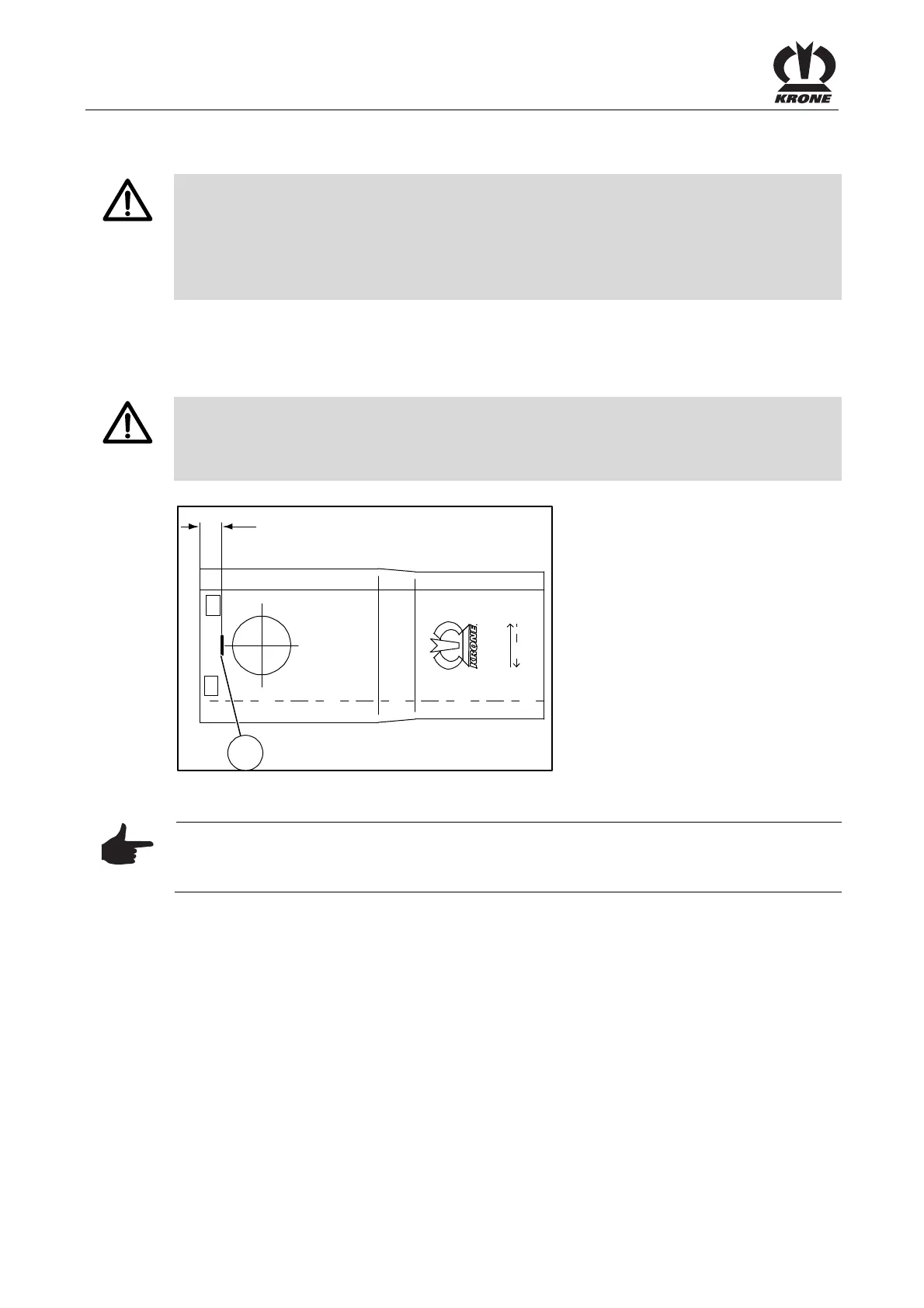

a
EC 253 0
1
Fig. 21
Note - The cutter blades can be turned around and used on both sides.
• When cutter blades are missing or damaged, they must be replaced as a complete set.
This prevents dangerous unbalanced rotation
