Maintenance
41
Pos: 20.29.1 /Üb erschriften/Üb erschriften 2/K-O/M ähholm-An triebsgetriebe @ 12\mod_1 224750940357_ 78.doc @ 1536 76
8.8 Cutter bar drive gear
Pos: 20.29.2 /B A/Wartung/Ölsta ndskontrolle b ei waagerec hter Stellung vorn ehmen @ 12\m od_122474 6945841_78.doc @ 153501
Note
Perform oil level check and change the oil while the machine is in a horizontal position!
Pos: 20.29.3 /B A/Wartung/Öl kontrolle_Wechsel/ Vorsätze/X-Disc/M ähhol m-Antriebsgetreibe X-Disc 6200 @ 12\mod_1 22475191071 6_78.doc @ 153 741

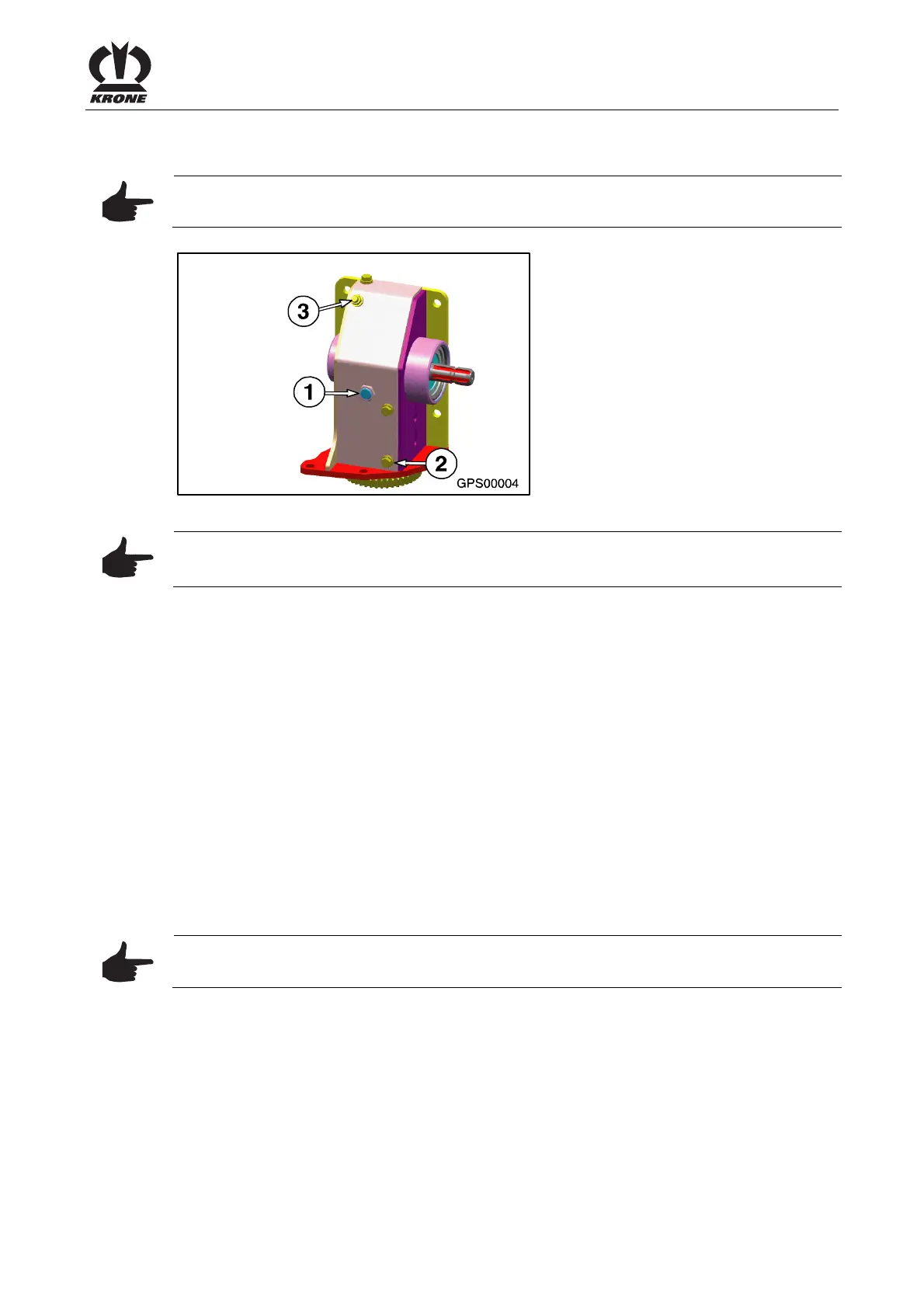

Fig. 18:
Pos: 20.29.4 /B A/Wartung/Öl kontrolle_Wechsel/ Vorsätze/Hin weis Ölkontr olle täglich durchfü hren @ 12\ mod_1224751 833482_78.doc @ 153722
Note
Check the oil level daily
Pos: 20.29.5 /B A/Wartung/Öl kontrolle_Wechsel/ Ölkontrolle Sc hauglas X-Disc 6200 @ 12\ mod_1224751 072388_78.doc @ 153698
Oil level check:
• Check hydraulic oil level of the cutter bar drive gear on the inspection window (1). The oil
level must be visible at least halfway up the inspection window (1).
• If required, top up the oil (3) (SAE 90)
Pos: 20.29.6 /B A/Wartung/Öl kontrolle_Wechsel/ Ölwechsel Schauglas X-Disc 6200 @ 12\m od_12248378 98010_78.doc @ 153785
Oil change:
• For time intervals, see Chapter entitled "Oil Level Check and Oil Change Intervals
(Gearboxes)".
• Screw out the oil drain plug (2)
• Collect the used oil in a suitable drip pan
• Screw in the oil drain plug (2)
• Top up the oil (3) (the oil level must be visible at least halfway up the inspection window
(1)).
Pos: 20.29.7 /B A/Wartung/Öl kontrolle_Wechsel/ Ölqualität /Ölm enge: sieh e Kapitel @ 0\ mod_1197007 859486_78.doc @ 15531
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 20.29.8 /B A/Wartung/Öl kontrolle_Wechsel/ Altöl ordnungsg emäß entsorg en @ 0\m od_1197008117 002_78.doc @ 1 5550
Note
The used oil must be disposed of correctly
Pos: 20.30 /BA/-- ---Seitenum bruch------ @ 0\mo d_119617531 1226_0.doc @ 4165
