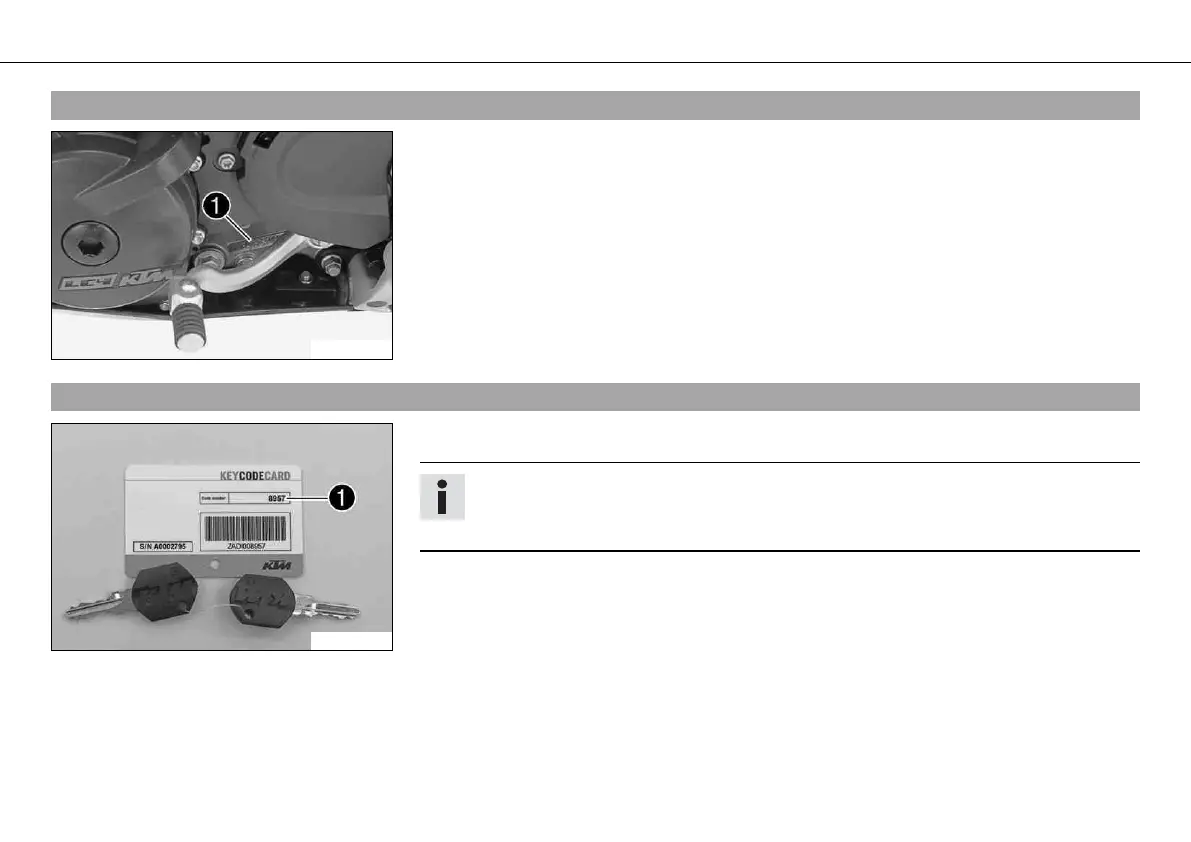

SERIAL NUMBERS 17

4.3Engine number

100211-10

The engine number  is stamped on the left side of the engine under the engine sprocket.

4.4Key number

100179-10

The key number  can be found on the KEYCODECARD.

Info

You need the key number to order a spare key. Keep the KEYCODECARD in a safe

place.

Table of Contents5
Table of Contents8
Means of Representation9
Important Information10
View of Vehicle14
- View of Vehicle, Front Left (Example)14
- View of Vehicle, Rear Right (Example)16
Serial Numbers18
- Chassis Number18
- Type Label18
- Engine Number19
- Key Number19
- Fork Part Number20
- Shock Absorber Part Number20
Controls21
- Clutch Lever21
- Hand Brake Lever21
- Throttle Grip22
- Light Switch22
- Turn Signal Switch23
- Horn Button23
- Emergency off Switch24
- Electric Starter Button24
- Ignition/Steering Lock25
- Combination Instrument25
- Combination Instrument - Function Buttons26
- Combination Instrument - Indicator Lamps26
- Combination Instrument - Display27
- Combination Instrument - Speedometer28
- Setting Kilometers or Miles28
- Combination Instrument - Time29
- Setting the Clock29
- Combination Instrument - Display ODO30
- Combination Instrument - Setting/Resetting TRIP 130
- Combination Instrument - Setting/Resetting TRIP 231
- Combination Instrument - TRIP F Display32
- Combination Instrument - Coolant Temperature Indicator32
- Opening the Filler Cap33
- Closing Filler Cap34
- Seat Release34
- Handrails35
- Passenger Footrests35
- Shift Lever36
- Foot Brake Lever37
- Side Stand37
Putting into Operation38
- Advice on First Use38
- Running in the Engine39
- Loading the Vehicle40
Riding Instructions42
- Performing Checks and Vehicle Care When Preparing for Use42
- Starting43
- Starting off44
- Shifting, Riding44
- Braking48
- Stopping, Parking49
- Refueling50
Service Schedule53
Tuning the Chassis56
- Fork/Shock Absorber56
- Adjusting the Compression Damping of the Fork56
- Adjusting the Rebound Damping of the Fork57
- Compression Damping of the Shock Absorber58
- Adjusting the Low-Speed Compression Damping of the Shock Absorber58
- Adjusting the High-Speed Compression Damping of the Shock Absorber59
- Adjusting the Rebound Damping of the Shock Absorber60
- Measuring the Unloaded Rear Wheel Sag61
- Checking the Static Sag of the Shock Absorber62
- Checking the Riding Sag of the Shock Absorber63
- Adjusting the Spring Preload of the Shock Absorber63
- Handlebar Position65
- Adjusting Handlebar Position65
Service Work on the Chassis67
- Raising the Motorcycle with the Lift Stand67
- Removing the Motorcycle from the Lift Stand67
- Bleeding the Fork Legs68
- Cleaning the Dust Boots of the Fork Legs68
- Loosening the Fork Protection69
- Positioning the Fork Protection70
- Checking the Steering Head Bearing Play70
- Adjusting the Play of the Steering Head Bearing71
- Removing the Seat72
- Mounting the Seat73
- Removing the Air Filter73
- Installing the Air Filter74
- Checking the Chain for Dirt75
- Cleaning the Chain75
- Checking the Chain Tension77
- Adjusting the Chain Tension78
- Check the Chain, Rear Sprocket, Engine Sprocket and Chain Guide80
- Adjusting Chain Guide85
- Adjusting Basic Position of Clutch Lever86
- Checking/Rectifying the Fluid Level of the Hydraulic Clutch86
- Removing the Engine Guard87
- Installing the Engine Guard88
Brakes89
- Checking the Free Travel of the Hand Brake Lever89
- Adjusting the Free Travel of the Hand Brake Lever89
- Checking the Brake Discs90
- Checking the Front Brake Fluid Level91
- Adding Front Brake Fluid92
- Checking the Front Brake Linings93
- Changing the Front Brake Linings94
- Checking the Free Travel of Foot Brake Lever98
- Adjusting the Basic Position of the Foot Brake Lever98
- Checking Rear Brake Fluid Level99
- Adding Rear Brake Fluid100
- Checking the Rear Brake Linings102
- Changing the Rear Brake Linings102
Wheels, Tires106
- Removing the Front Wheel106
- Installing the Front Wheel107
- Removing Rear Wheel109
- Installing the Rear Wheel110
- Checking the Rear Hub Rubber Dampers111
- Checking the Tire Condition112
- Checking the Tire Air Pressure114
- Checking the Spoke Tension115
Electrical System117
- Removing the Battery117
- Installing the Battery118
- Recharging the Battery118
- Changing the Main Fuse120
- Changing Fuses of Individual Power Consumers122
- Removing the Headlight Mask with the Headlight124
- Installing the Headlight Mask with the Headlight126
- Changing the Headlight Bulb127
- Changing the Parking Light Bulb128
- Changing the Turn Signal Bulb129
- Checking the Headlight Setting130
- Adjusting the Headlight Range131
Cooling System132
- Checking the Antifreeze and Coolant Level132
- Checking the Coolant Level134
- Draining the Coolant136
- Filling the Cooling System137
Tuning the Engine139
- Checking the Play in the Throttle Cable139
- Adjusting the Play in the Throttle Cable140
- Adjusting the Engine Characteristic140
Service Work on the Engine142
- Checking the Engine Oil Level142
- Changing the Engine Oil and Filter, Cleaning the Oil Screens143
- Draining the Engine Oil X143
- Removing the Oil Filter144
- Cleaning the Oil Screens146
- Installing the Oil Filter148
- Filling up with Engine Oil148
- Adding Engine Oil149
Cleaning, Care151
- Cleaning the Motorcycle151
- Protective Treatment for Winter Operation153
Storage154
- Preparing for Use after Storage155
Troubleshooting156
Blink Code159
Technical Data - Engine164
- Capacity - Engine Oil165
- Capacity - Coolant165
Technical Data - Engine Tightening Torques166
Technical Data - Chassis169
- Lighting Equipment170
- Tires171
- Capacity - Fuel171
Technical Data - Fork172
Technical Data - Shock Absorber173
Technical Data - Chassis Tightening Torques175
Substances178
Auxiliary Substances182
Standards184
Index185
