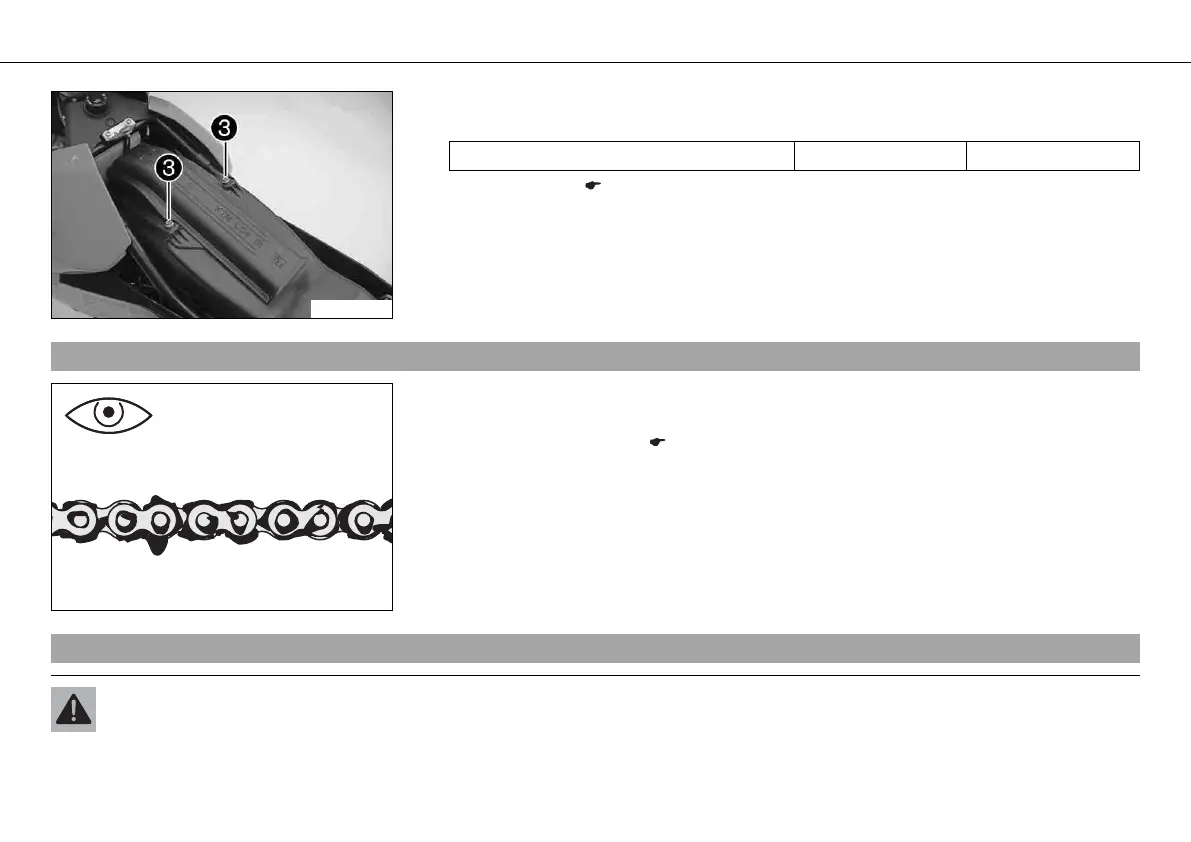

SERVICE WORK ON THE CHASSIS 73

100285-11

– Mount and tighten screws .

Guideline

Screw, air filter box top M6 2 Nm (1.5 lbf ft)

– Mount the seat. ( p. 71)

10.13Checking the chain for dirt

400678-01

– Check the chain for heavy soiling.

» If the chain is very dirty:

– Clean the chain. ( p. 73)

10.14Cleaning the chain

Warning

Danger of accidents Oil or grease on the tires reduces their grip.

– Remove oil and grease with a suitable cleaning material.
