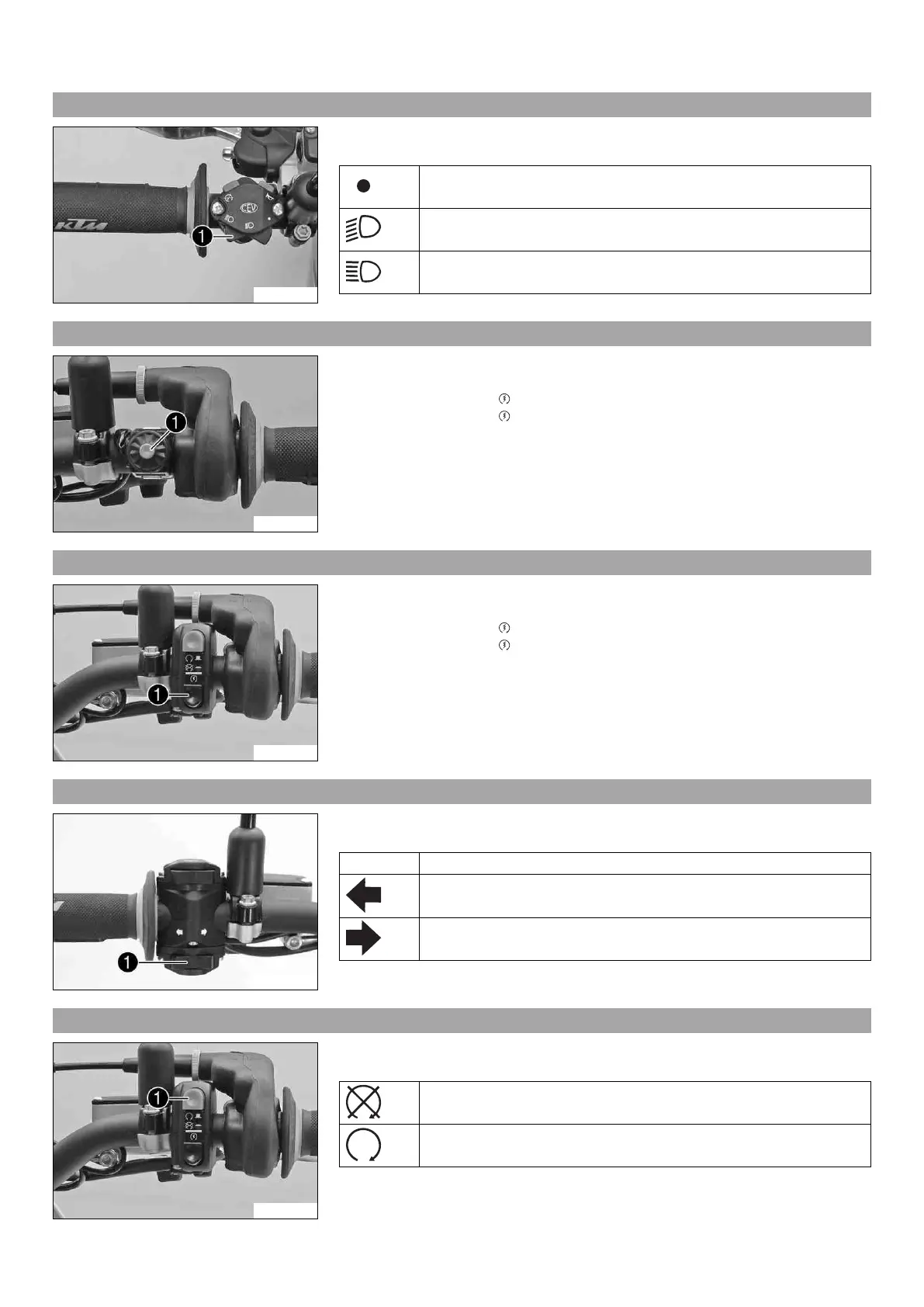

6 CONTROLS 13
6.6 Light switch
B01658-12
The light switch 1 is fitted on the left side of the handlebar.
Possible states
Light off – Light switch is turned to the right. In this position, the light
is switched off.
Low beam on – Light switch is in the central position. In this position,
the low beam and tail light are switched on.
High beam on – Light switch is turned to the left. In this position, the
high beam and the tail light are switched on.
6.7 Electric starter button (Freeride 250 R EU)
B01659-10
Electric starter button 1 is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
6.8 Electric starter button (Freeride 250 R AUS)
B01663-11
Electric starter button 1 is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
6.9 Turn signal switch
602801-10
Turn signal switch 1 is fitted on the left side of the handlebar.
Possible states
Turn signal light off – Turn signal switch is in the central position.
Turn signal light, left, on – Turn signal switch is turned to the left.
Turn signal light, right, on – Turn signal switch is turned to the right.
6.10 Emergency OFF switch (Freeride 250 R AUS)
B01663-10
The emergency OFF switch 1 is fitted on the right side of the handlebar.
Possible states
Ignition off – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
Ignition on – In this position, the ignition circuit is closed and the
engine can be started.
