15 ELECTRICAL SYSTEM 76
B01041-11

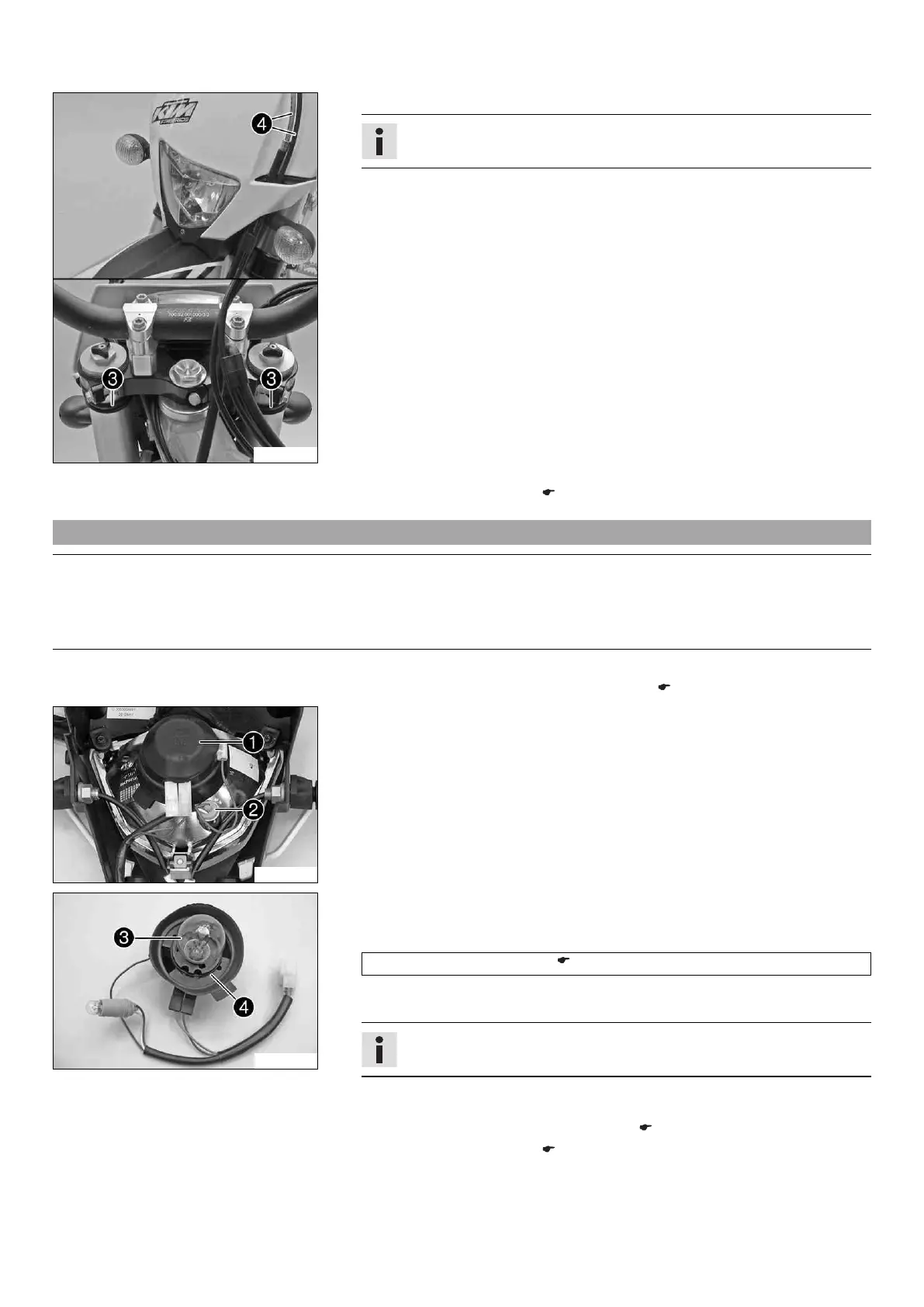

– Position the headlight mask and fix it with the rubber band 3.
Info
Make sure that the holding lugs engage in the fender.
– Position the brake line and wiring harness 4.
Finishing work
– Check the headlight setting. ( p. 77)
15.8 Changing the headlight bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 75)
602813-10
Main work
– Turn rubber cap 1 together with the underlying bulb socket counterclockwise all
the way and remove it.
– Pull bulb socket 2 of the parking light out of the reflector.
100862-10
– Press headlight bulb 3 lightly into the bulb socket, turn it counterclockwise, and
pull it out.
– Insert the new headlight bulb.
Headlight (S2/socket BA20d) ( p. 96)
– Insert the rubber cap with the bulb socket into the reflector and turn it clockwise
all the way.
Info
Ensure that O-ring 4 is seated properly.
– Insert the bulb socket of the parking light into the reflector.
Finishing work
– Refit the headlight mask with the headlight. ( p. 75)
– Check the headlight setting. ( p. 77)
