15 ELECTRICAL SYSTEM 74
– Mount the protection cap.
Finishing work
– Lock the seat. ( p. 45)

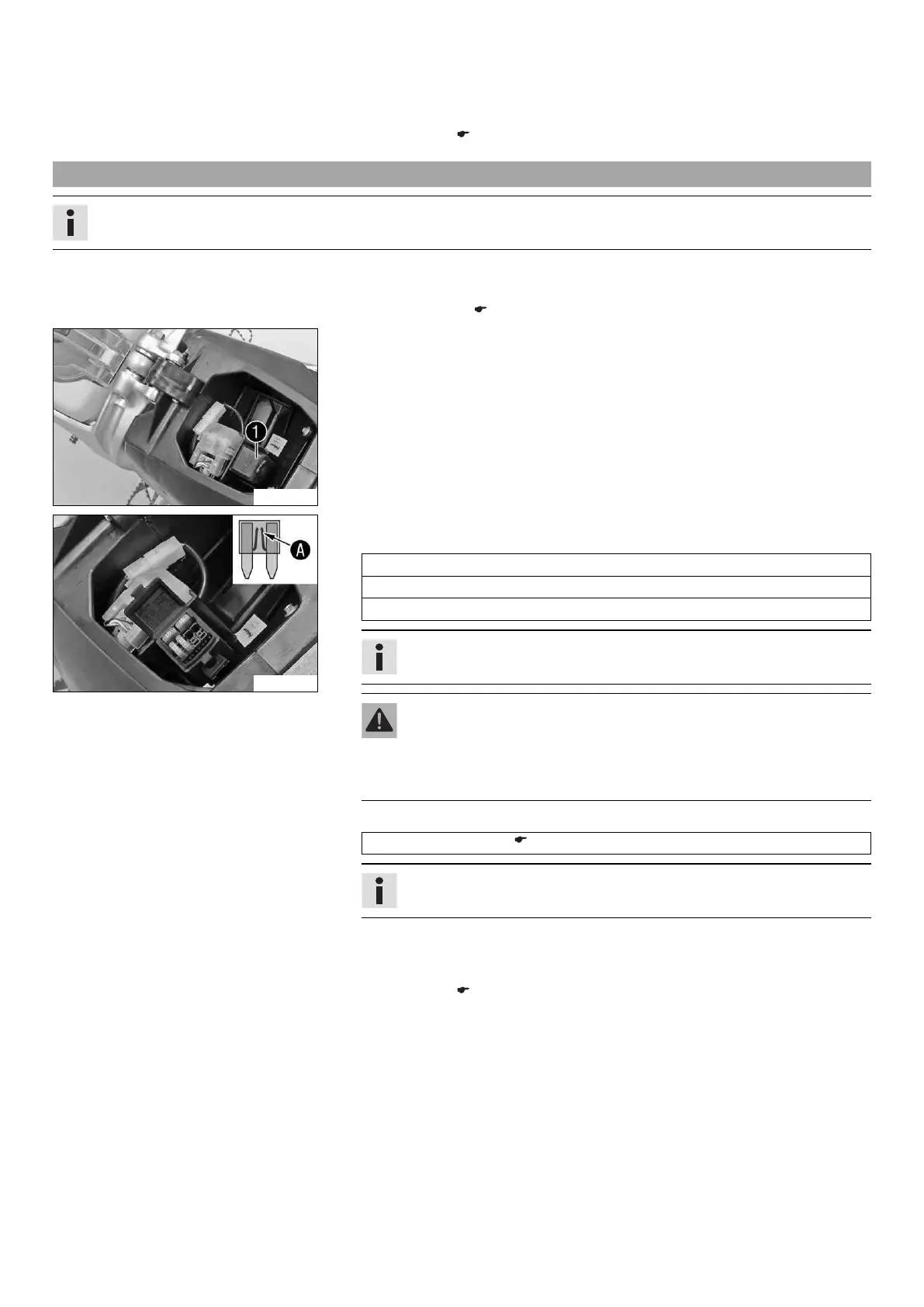

15.5 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Fold the seat up. ( p. 45)
B01682-10
Main work
– Open fuse box cover 1.
B01683-01
– Remove the defective fuse.
Guideline
Fuse 1 - 10 A - horn, brake light, turn signal
Fuse 2 - 10 A - radiator fan
Fuses res - 10 A - spare fuses
Info
A defective fuse is indicated by a burned-out fuse wire A.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never by-pass or repair
fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088010) ( p. 96)
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
Finishing work
– Lock the seat. ( p. 45)
