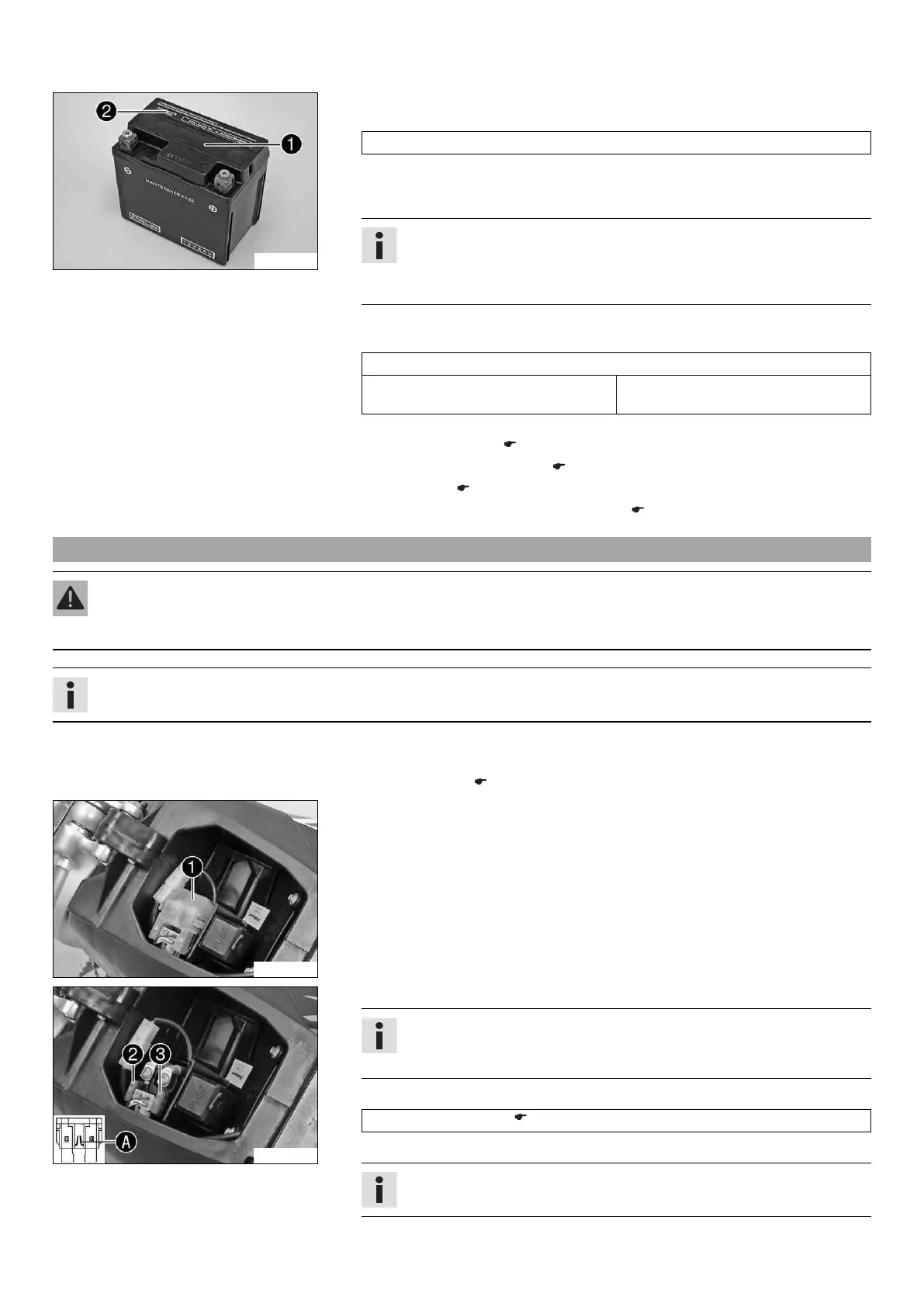

15 ELECTRICAL SYSTEM 73
400240-10
Main work
– Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (58429074000)
You can also use the battery charger to test the rest potential and starting ability of
the battery, and to test the alternator. With this device, you cannot overcharge the
battery.
Info
Never remove lid 1.
Charge the battery with a maximum of 10% of the capacity specified on the
battery housing 2.
– Switch off the charger after charging. Disconnect the battery.
Guideline
The charging current, charging voltage, and charging time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use
3 months
Finishing work
–
Install the battery. x ( p. 71)
–
Install the shock absorber. x ( p. 44)
– Lock the seat. ( p. 45)
– Remove the motorcycle from the lift stand. ( p. 37)
15.4 Changing the main fuse
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
Info
The main fuse protects all power consumers of the vehicle. It is located in the starter relay housing under the seat.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Fold the seat up. ( p. 45)
B01684-10
Main work
– Remove protection cap 1.
B01685-10
– Remove the faulty main fuse 2.
Info
A defective fuse is indicated by a burned-out fuse wire A.
A reserve fuse 3 is located in the starter relay.
– Install a new main fuse.
Fuse (58011109110) ( p. 96)
– Check that the electrical equipment is functioning properly.
Tip
Insert the spare fuse so that it is available if needed.
