12 SERVICE WORK ON THE CHASSIS 39

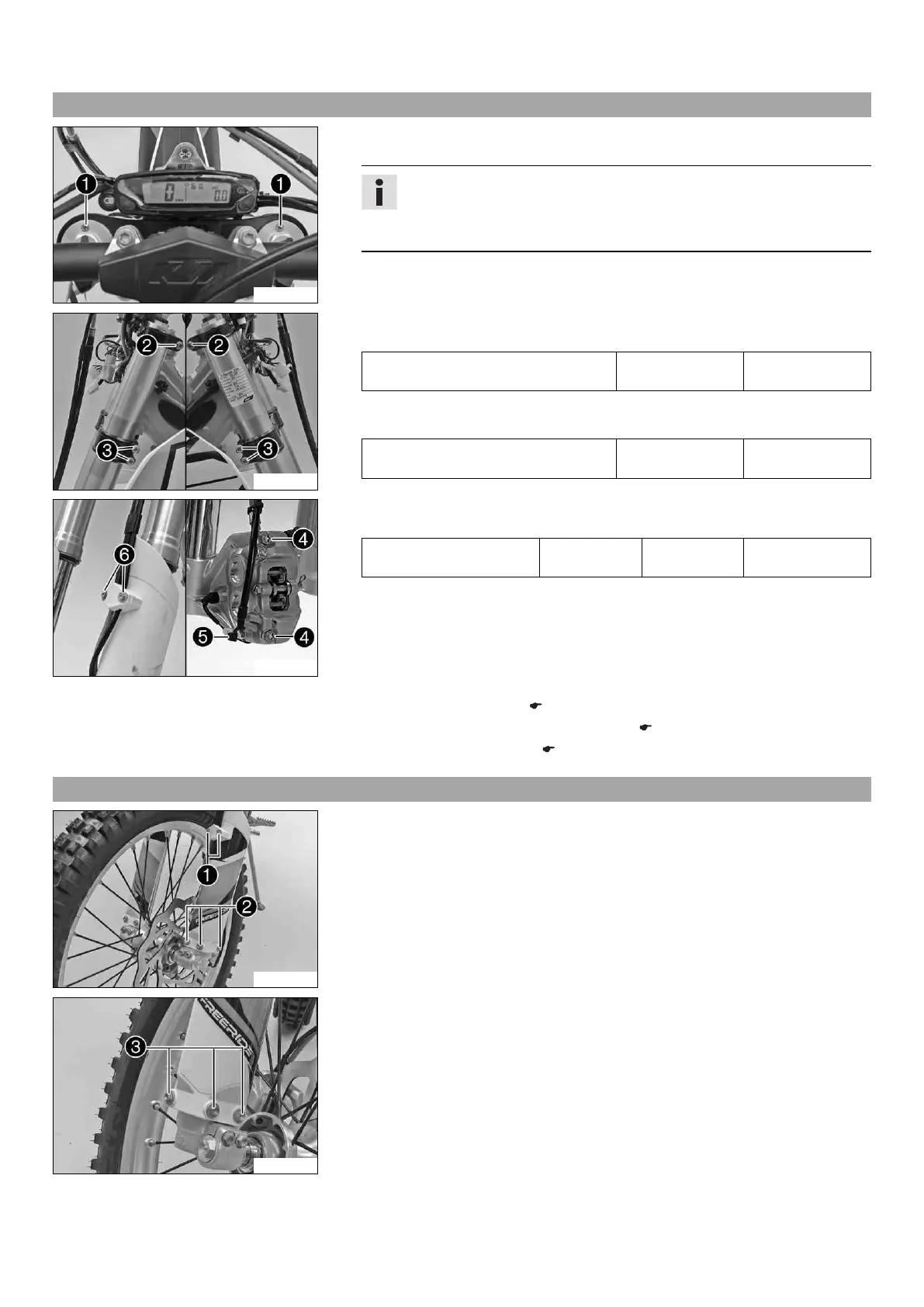

12.6 Installing the fork legs x
B01737-10
Main work
– Position the fork legs.
Info
The upper milled groove in the fork leg must be flush with the upper edge of
the upper triple clamp.
Position bleeder screws 1 toward the front.
B01054-11
– Tighten screws 2.
Guideline
Screw, top triple clamp M8 22 Nm
(16.2 lbf ft)
– Tighten screws 3.
Guideline
Screw, bottom triple clamp M8 18 Nm
(13.3 lbf ft)
602805-11
– Position brake caliper, and mount and tighten screws 4.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Mount cable binder 5.
– Position the brake line, wiring harness, and clamp. Mount and tighten screws 6.
Finishing work
–
Install the front wheel. x ( p. 67)
– Refit the headlight mask with the headlight. ( p. 75)
– Check the headlight setting. ( p. 77)
12.7 Removing the fork protector x
B01734-10
– Remove screws 1. Take off the clamp.
– Remove screws 2 on the left fork leg. Take off the fork protector.
B01735-10
– Remove screws 3 on the right fork leg. Take off the fork protector.
