12 SERVICE WORK ON THE CHASSIS 53
B01715-10

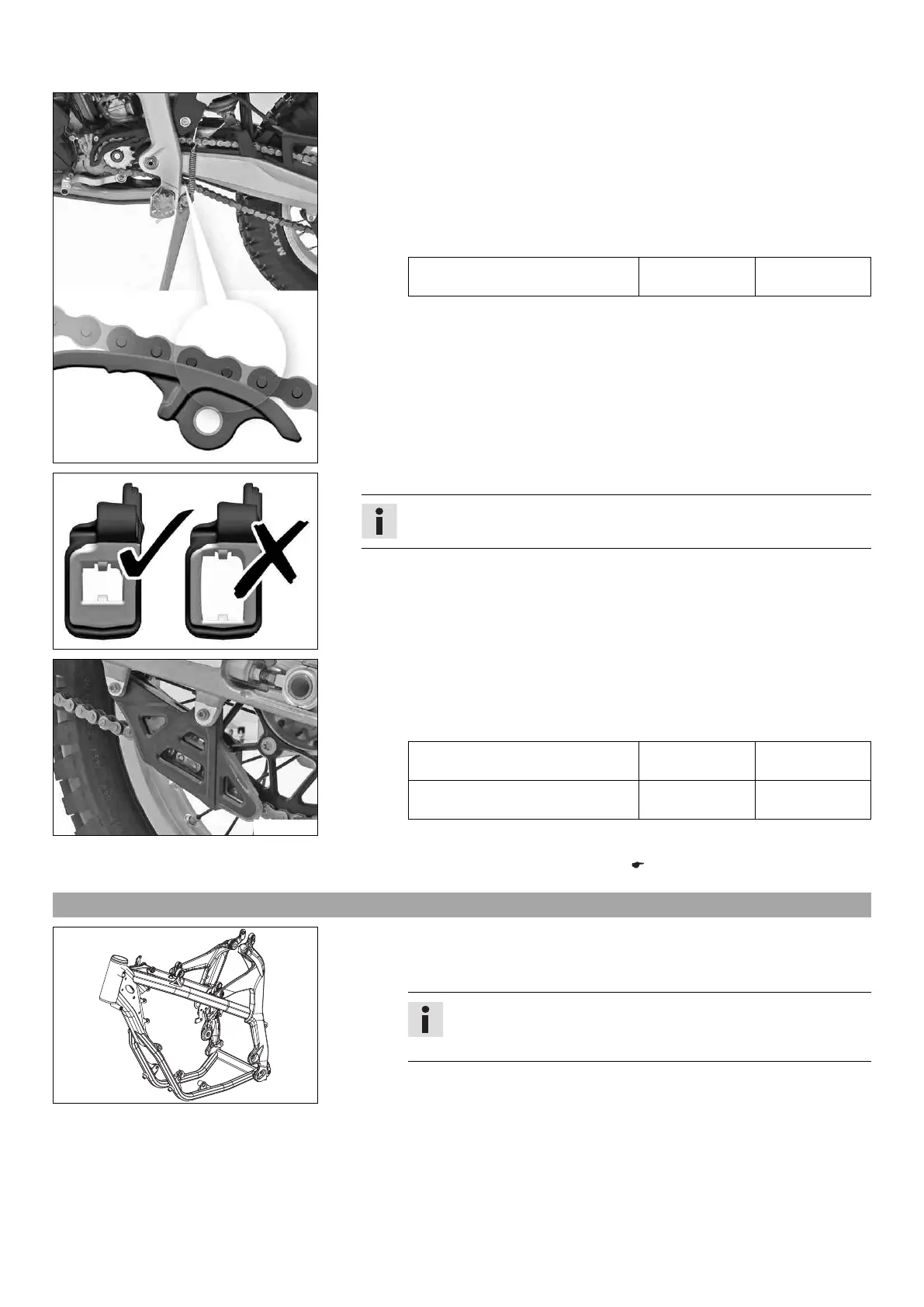

– Check the chain sliding piece for wear.
» If the bottom edge of the chain bolt is in line with or below the chain sliding
piece:
–
Change the chain sliding piece. x
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
400985-01
– Check the chain guide for wear.
Info
Wear can be seen on the front of the chain guide.
» If the light part of the chain guide is worn:
–
Change the chain guide. x
B01713-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 37)
12.35 Checking the frame x
B01723-10
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a mechanical impact:
–
Change the frame. x
Info
A frame that has been damaged due to a mechanical impact must
always be changed. Repair of the frame is not authorized by KTM.
