12 SERVICE WORK ON THE CHASSIS 57

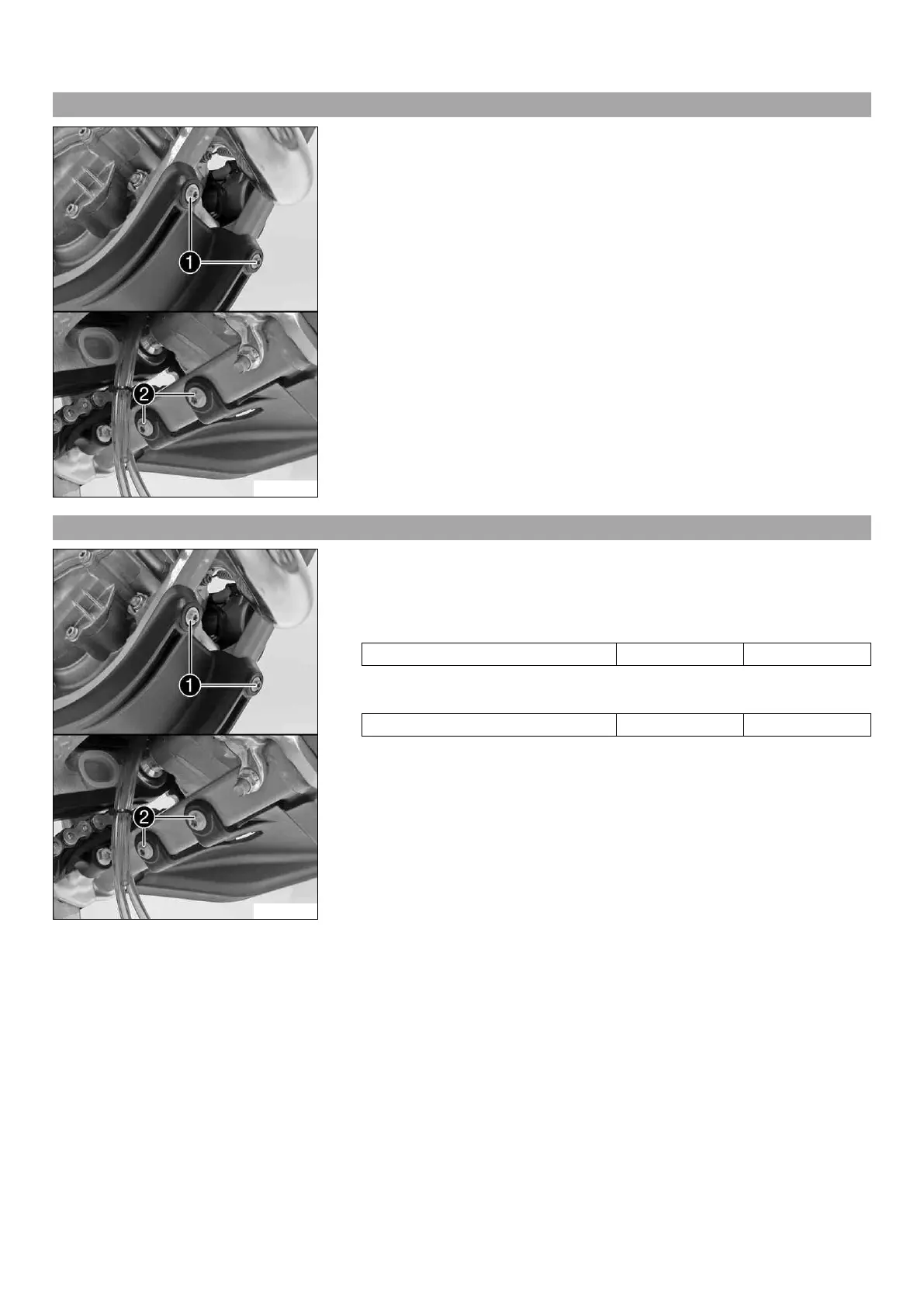

12.44 Removing the engine guard
B01706-10
– Remove screws 1 and 2.
– Lower the engine guard at the rear and remove it toward the front.
12.45 Installing the engine guard
B01706-10
– Position the engine guard on the frame at the front and mount screws 1 but do not
tighten yet.
– Position the engine guard on the frame at the rear and mount and tighten
screws 2.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
