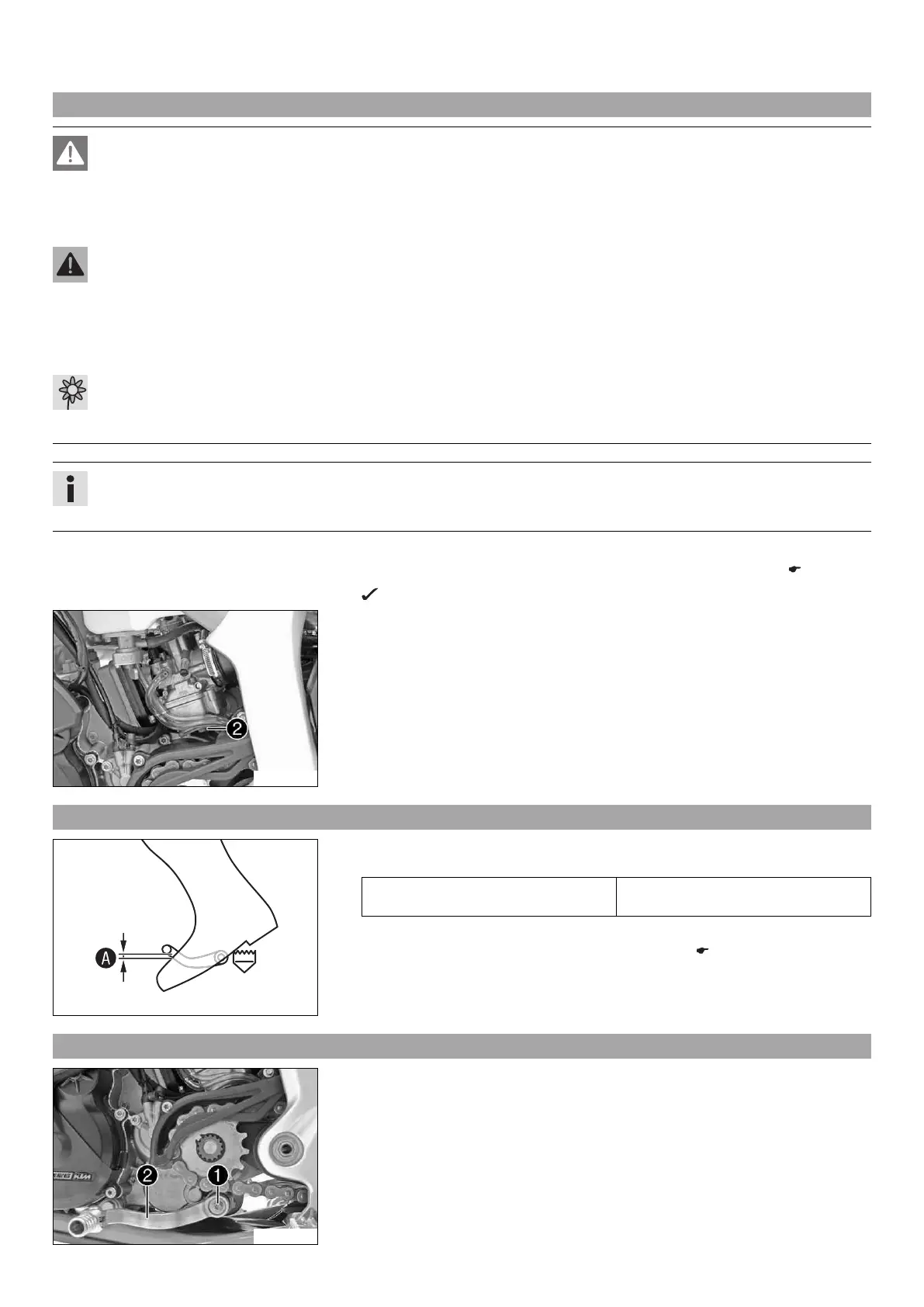

17 TUNING THE ENGINE 84
17.5 Emptying the carburetor float chamber x
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
Info
Carry out this work with a cold engine.
Water in the float chamber results in malfunctioning.
Preparatory work
– Turn handle 1 of the fuel tap to the OFF position. (Figure B01660-10 p. 15)
Fuel no longer flows from the fuel tank to the carburetor.
B01672-10
Main work
– Place a cloth under the carburetor to capture the draining fuel.
– Remove fitting 2.
– Fully drain the fuel.
– Mount and tighten the screw plug.
17.6 Checking the basic position of the shift lever
400692-10
– Sit on the vehicle in the riding position and determine distance A between the
upper edge of your boot and the shift lever.
Distance between shift lever and upper
edge of boot
10… 20 mm (0.39… 0.79 in)
» If the distance does not meet specifications:
–
Adjust the basic position of the shift lever. x ( p. 84)
17.7 Adjusting the basic position of the shift lever x
B01673-10
– Remove screw 1 and remove shift lever 2.
