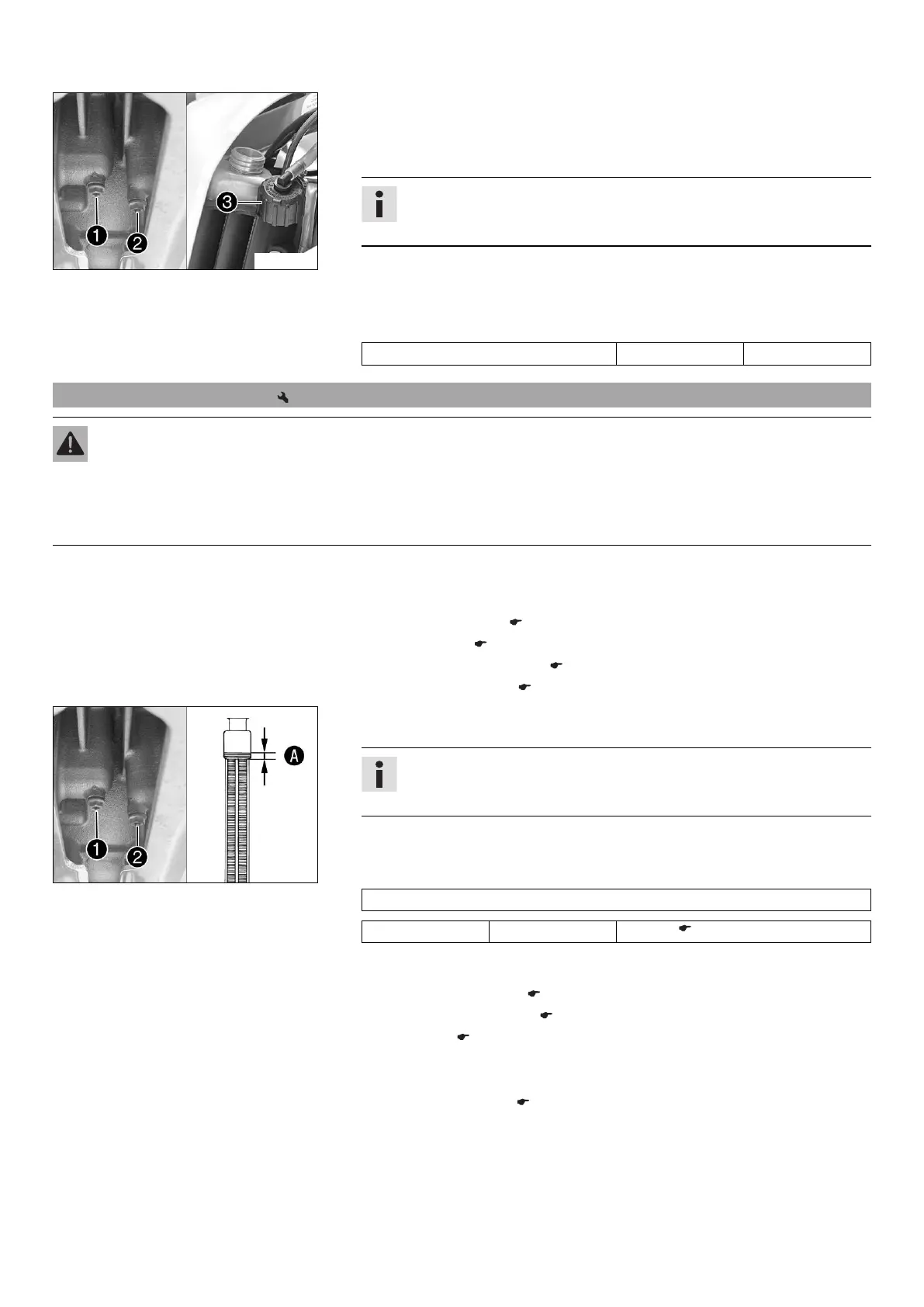

17 COOLING SYSTEM 106
C00744-10
Main work
– Position the motorcycle upright.
– Place a suitable container under the motorcycle.
–
Remove screws
and
.
Info
The screws are located under the electric motor and can be accessed
through a recess in the motor guard.
–
Remove radiator cap
.
– Completely drain the coolant.
–
Mount screws
and
with a new seal ring and tighten.
Guideline
Coolant drain plug M6 10 Nm (7.4 lbf ft)
17.5 Refilling with coolant
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swal-
lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of
children.
Condition
The motor is cold.
Preparatory work
– Deactivate the vehicle. ( p. 37)
– Fold the seat up. ( p. 63)
– Remove the KTM PowerPack. ( p. 96)
– Mount the covering cap. ( p. 64)
C00744-11
Main work
–
Ensure that the screws
and
are tightened.
Info
The screws are located under the electric motor and can be accessed
through a recess in the motor guard.
– Position the motorcycle upright.
–
Pour coolant in up to measurement
above the radiator fins.
Guideline
10 mm (0.39 in)
Coolant 0.7 l (0.7 qt.) Coolant ( p. 121)
– Mount the radiator cap.
Finishing work
– Remove the covering cap. ( p. 65)
– Install the KTM PowerPack. ( p. 96)
– Lock the seat. ( p. 63)
– Go for a short test ride.
– Check the cooling system for leaks.
– Check the coolant level. ( p. 105)
