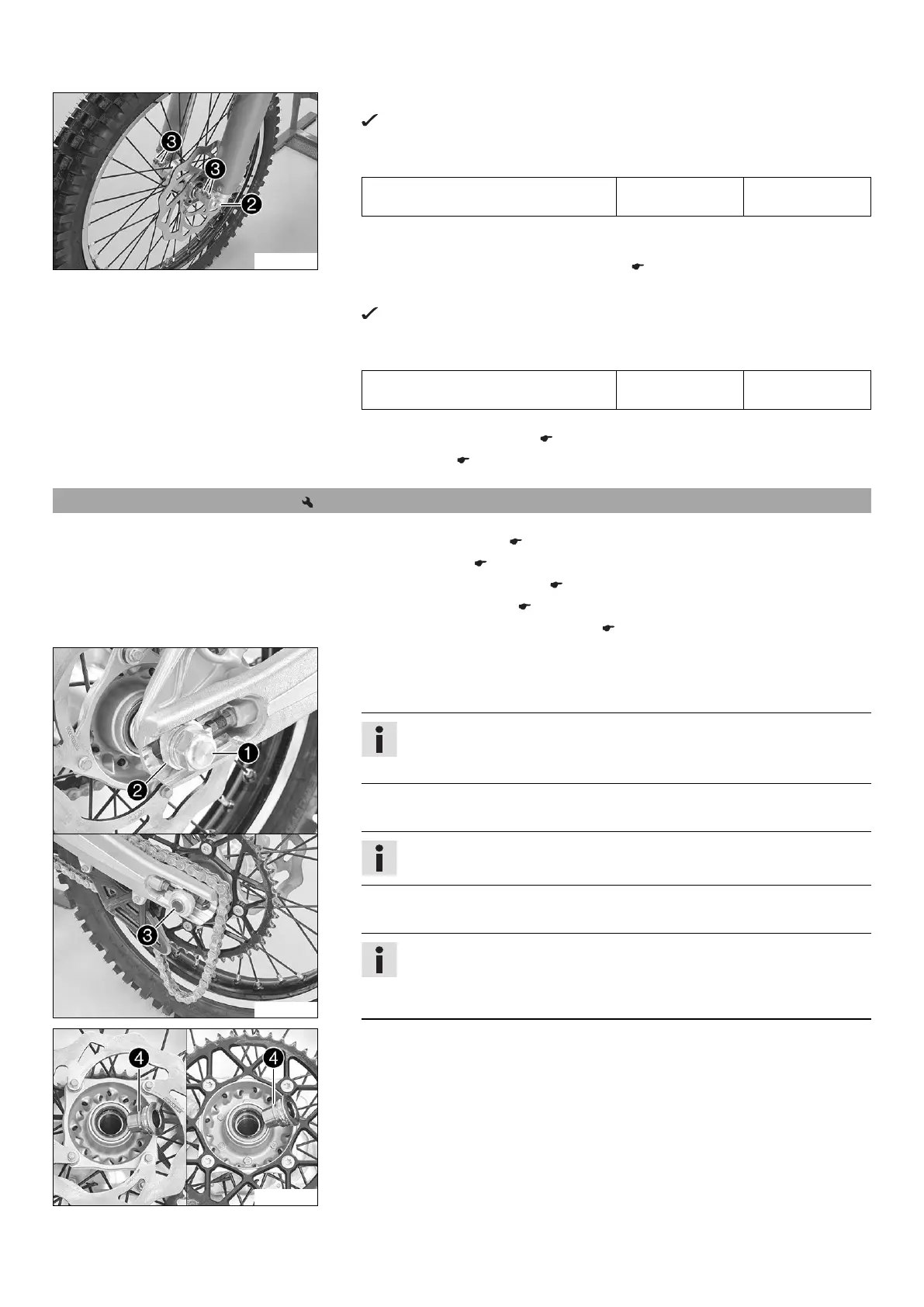

14 WHEELS, TIRES 84
C00711-11
– Position the front wheel and insert the wheel spindle.
The brake linings are correctly positioned.
–
Mount and tighten screw
.
Guideline
Screw, front wheel spindle M20x1.5 35 Nm
(25.8 lbf ft)
– Operate the front brake lever several times until the brake linings are in contact
with the brake disc.
– Remove the motorcycle from the lift stand. ( p. 49)
– Operate the front brake and compress the fork a few times firmly.
The fork legs straighten.
–
Tighten screws
.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
Finishing work
– Install the KTM PowerPack. ( p. 96)
– Lock the seat. ( p. 63)
14.3 Removing the rear wheel
Preparatory work
– Deactivate the vehicle. ( p. 37)
– Fold the seat up. ( p. 63)
– Remove the KTM PowerPack. ( p. 96)
– Mount the covering cap. ( p. 64)
– Raise the motorcycle with a lift stand. ( p. 49)
C00735-10
Main work
–
Remove nut
.
–
Remove chain adjuster
.
Info
Withdraw wheel spindle
only enough to allow the rear wheel to be
pushed forward.
– Push the rear wheel forward as far as possible. Remove the chain from the rear
sprocket.
Info
Cover the components to protect them against damage.
– Holding the rear wheel, withdraw the wheel spindle. Take the rear wheel out of the
swing arm.
Info
Do not operate the rear brake lever when the rear wheel is removed.
Always lay the wheel down in such a way that the brake disc is not dam-
aged.
C00736-10
–
Remove spacers
.
