KTM Freeride E-XC User Manual

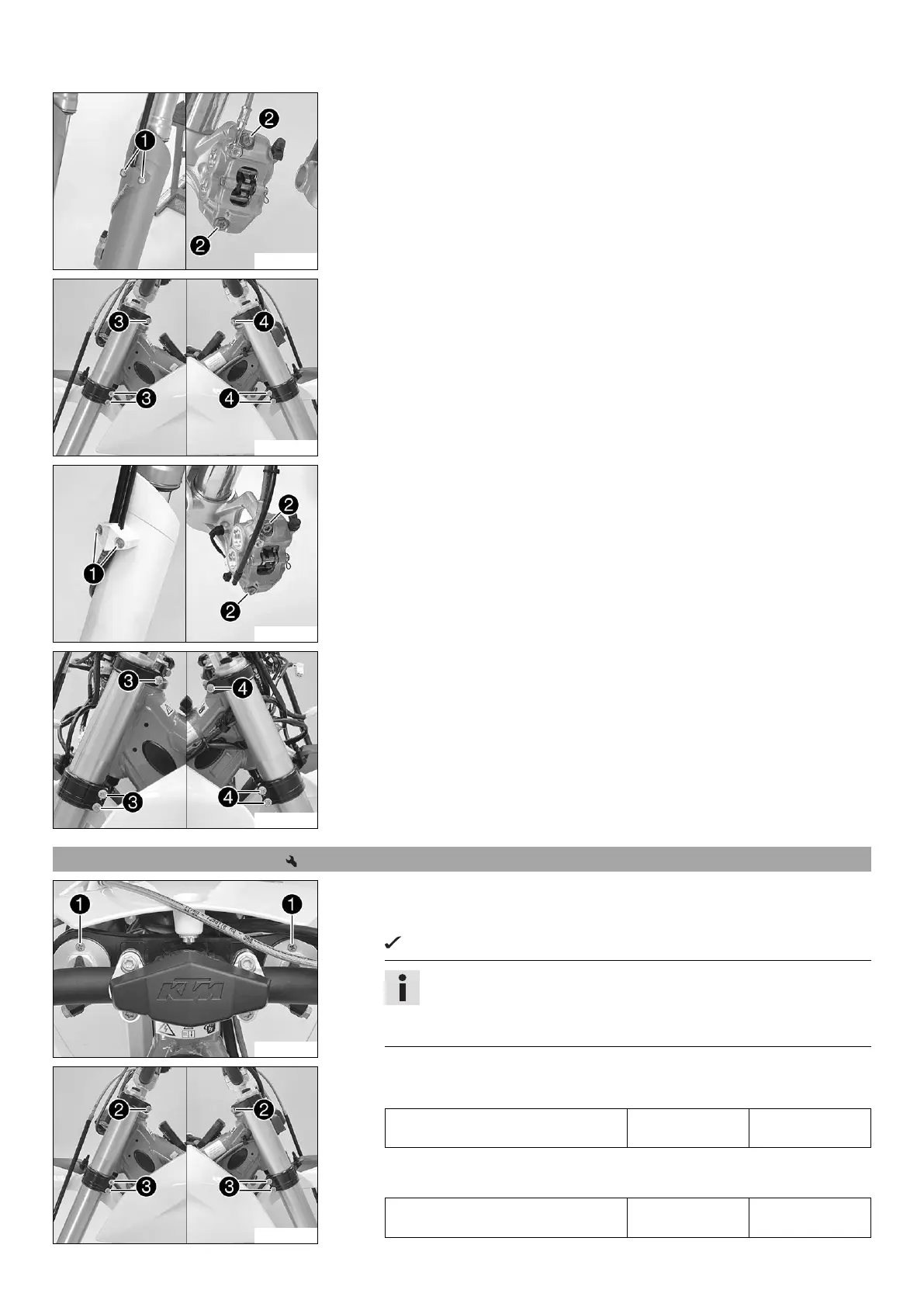

12 SERVICE WORK ON THE CHASSIS 51
C00689-10
Main work
(Freeride E‑SX)
–
Remove screws

and take off the clamp.
–
Remove screws

and the spacers and take off the brake caliper.
– Allow the brake caliper and brake line to hang tension-free to the side.
C00690-10
–
Release screws

. Take out the left fork leg.
–
Release screws

. Take out the right fork leg.
C00797-10
(Freeride E‑XC)
–
Remove screws

and take off the clamp.
– Remove the cable tie(s) and detach the plug-in connector of the speedometer
sensor.
–
Remove screws

and the spacers and take off the brake caliper.
– Allow the brake caliper and brake line to hang tension-free to the side.
C00798-10
–
Release screws

. Take out the left fork leg.
–
Release screws

. Take out the right fork leg.
12.6 Installing the fork legs
C00687-10
Main work
(Freeride E‑SX)
– Position the fork legs.
Bleeder screws

face forward.
Info
The lowest milled groove in the fork leg must be flush with the top edge
of the upper triple clamp.
The support for the brake caliper is attached to the left fork leg.
C00690-11
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 22 Nm
(16.2 lbf ft)
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 18 Nm
(13.3 lbf ft)

KTM Freeride E-XC Specifications

General

Battery Capacity	3.9 kWh
Power Output	18 kW (24 hp)
Torque	42 Nm
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	910 mm
Weight	111 kg
Ground Clearance	340 mm
Suspension Front Travel	250 mm
Suspension Rear Travel	260 mm
Motor Type	Permanent magnet synchronous motor
Charging Time 80%	75 minutes
Charging Time 100%	Approx. 110 min
Front Suspension	WP XPLOR 43
Top Speed	80 km/h
Tire Front	80/100-21
Front Brake	260 mm disc, 2-piston floating caliper
