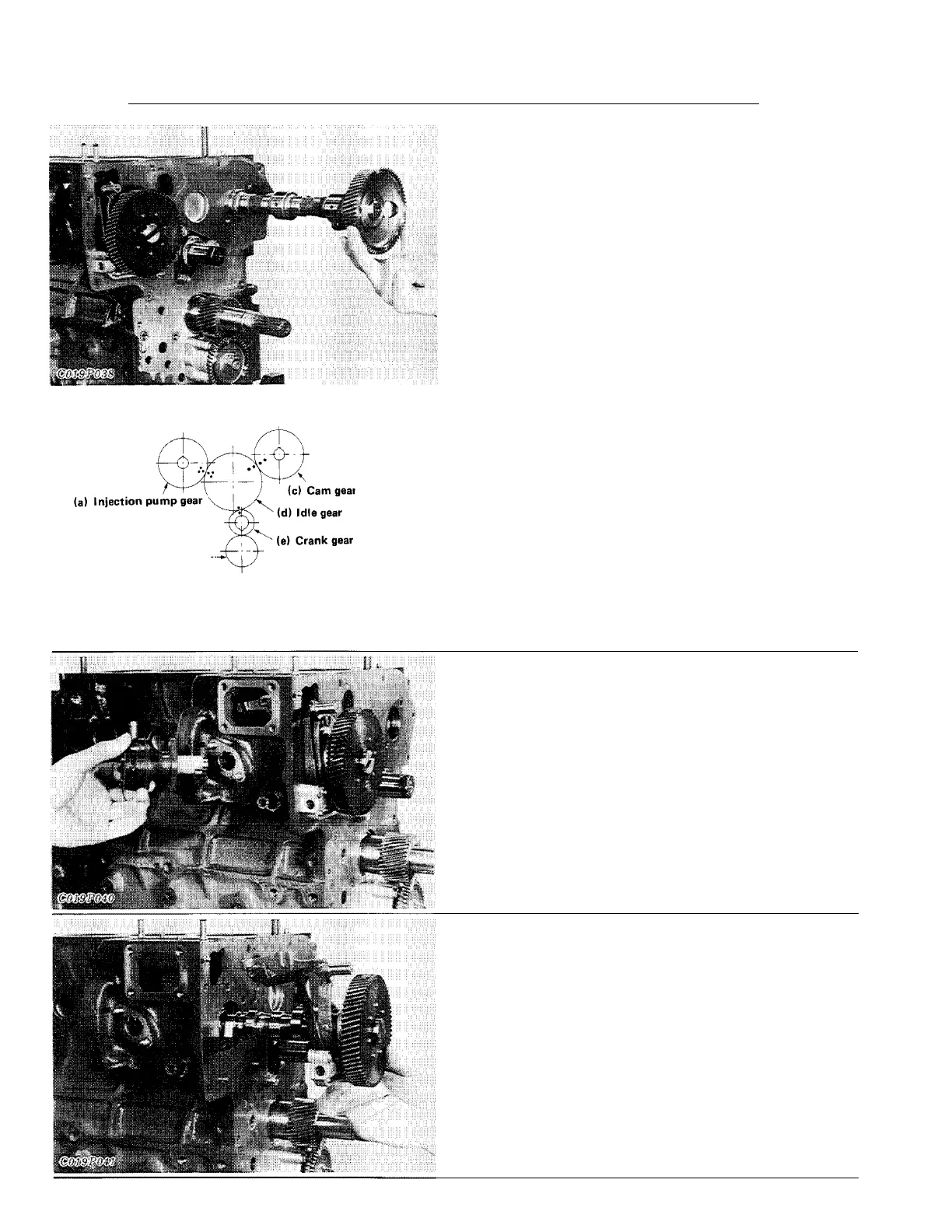

(A) Gear marks
@ Removing Idle Gear and Camshaft
1) Remove the external ci rcl i p and detach the collar 2,
the idle gear and the col lar 1
i n that order.
2) Remove the camshaf t stopper bolt.
3) Detach the camshaft.
( I mportant)
• When install ing the idle gear, be sure to align the al ignment
ma rks on geas.
C019F005
42
Removing Fuel Feed Pump
(V1502-B, V1702-B, V1902-B only)
1
)
Remove the f uel feed
p
um
p
.
Ci
)
Removing Fuel Camshaft and Fork Lever Holder
1) Detach the f uel camshaf
t
cover.
2) R emove the external ci r-cl i p and the col lar ( D1402·B, V1502-
B, V1702-B, V1902·B only).
3) Remove th ree fork lever holder set bolts.
4) Remove the f uel camshaf t and the fork lever shaf t at
the same ti me.
(
b
)
Oil
p
um
p
drive
g
ear
