KiSC issued 09, 2007 A
0

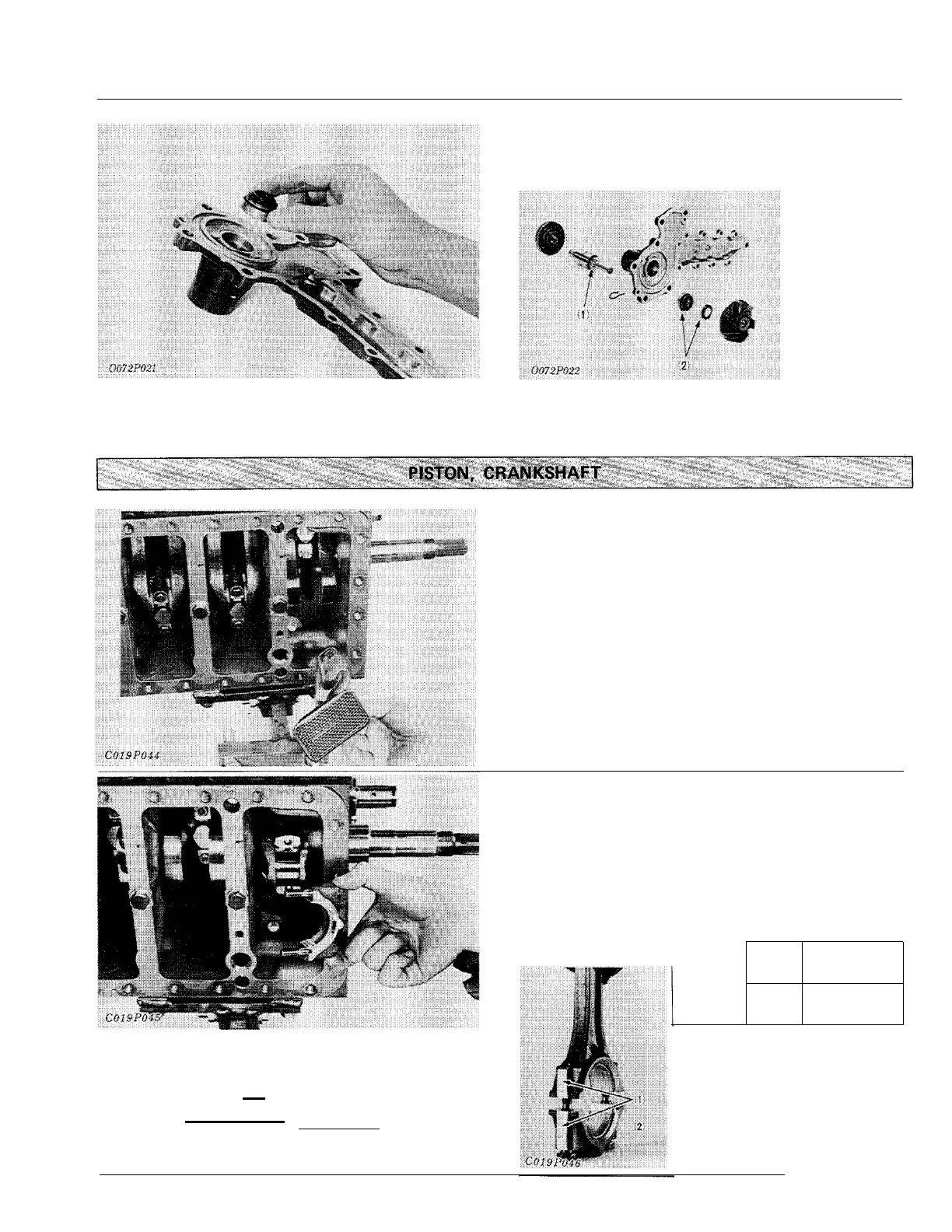

Removing Oil Pan, Oil Filter 1
1)
Detach the oil pan.
2)
Remove the oil filter 1. Be careful of the 0-ring.
f)
Removing Connecting Rod
1)
Detach the connecting rod bolt.
2)
Remove the cap of the large end of the connecting rod.
(Important)
•
When reassembling, apply engine oil to the connect·
ing rod bolts.
A
(3) Removing Seal Set
1)
Remove the seal set.
(1)
Slinger
(2)
Seal set
Tightening
torque
Non
Flange
Bolt
(3)
36.3 to 41.2 N-m
3.7 to 4.2 kgf-m
26.6
to 30.4 ft. lbs
Flange
Bolt (4)
44.1 to 49.0 N-m
4.5 to 5.0 kgf m
32.5
to
36.2
ft.lbs
A069F001
(B)
Connecting rod bolt
(3)
Non flange bolt
(4)
Flange bolt
-
11
,
(A)
Reassembling of connecting rod
(1)
Align the marks with each other.
(2)
Face the marks toward the
injection pump.
45
To Next Page
