5.5 ELECTRICAL SYSTEM
92.4mm STROKE SERIES WSM.01095
Output current
Voltage
Rotational speed

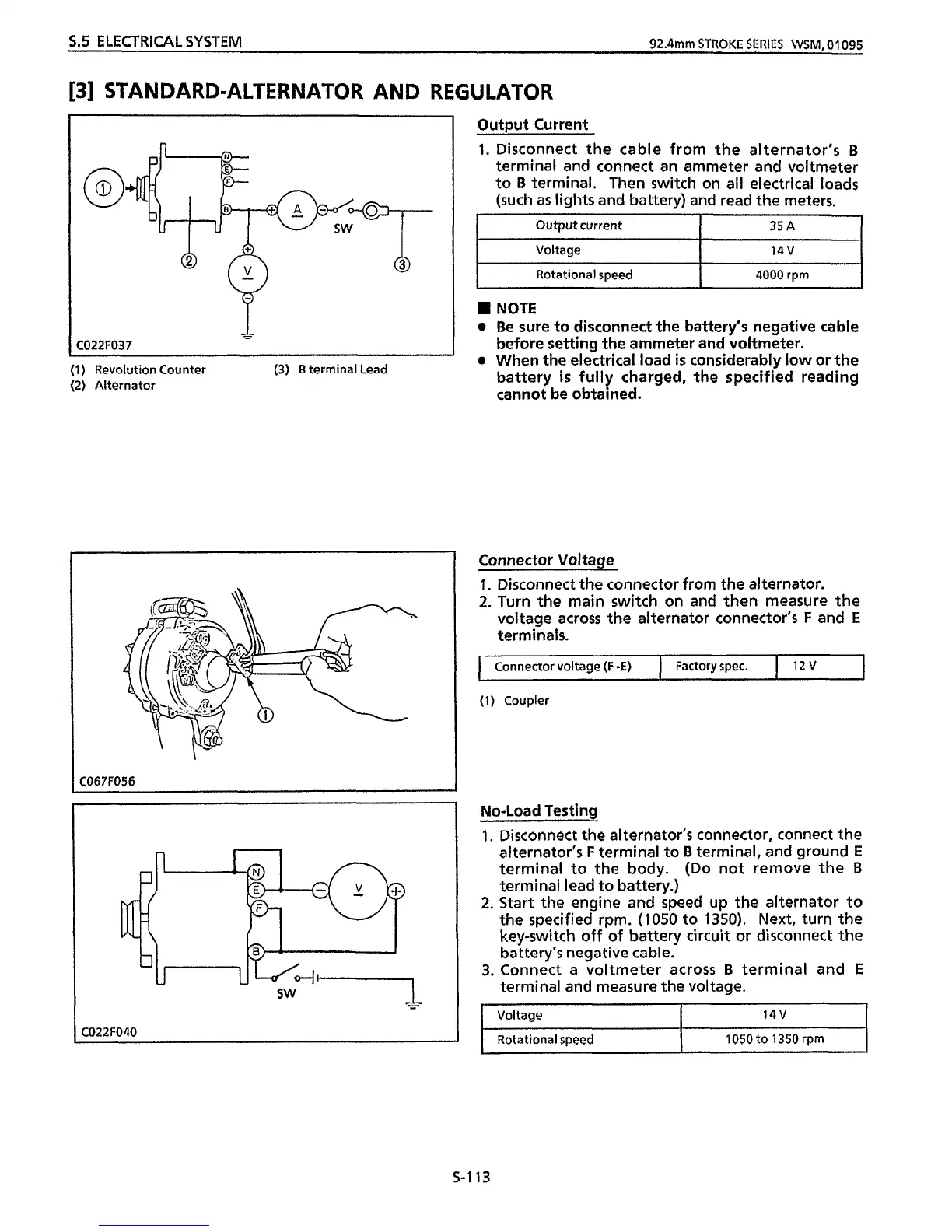

[3] STANDARD-ALTERNATOR AND REGULATOR
35 A
14V
4000 rpm
I Output Current
Voltage
Rotational speed
TI wsw -1
14V
1050 to 1350 rpm
(1) Revolution Counter
(3) B terminal Lead
(2) Alternator
C067F056
I
C022F040
1. Disconnect the cable from the alternator's B
terminal and connect an ammeter and voltmeter
to
B terminal. Then switch on all electrical loads
(such as lights and battery) and read
the meters.
NOTE
0 Be sure to disconnect the battery's negative cable
before setting the ammeter and voltmeter.
0 When the electrical load is considerably low or the
battery
is fully charged, the specified reading
cannot be obtained.
Connector Voltage
1. Disconnect the connector from the alternator.
2. Turn the main switch on and then measure the
voltage across the alternator connector's
F and E
terminals.
Connector voltage (F -E) Factory spec. 12 v
I
(1) Coupler
S-113
