5.5
ELECTRICAL
SYSTEM
92.4mm
STROKE
SERIES
WSM.
01092
SC3OF110
SC3Of

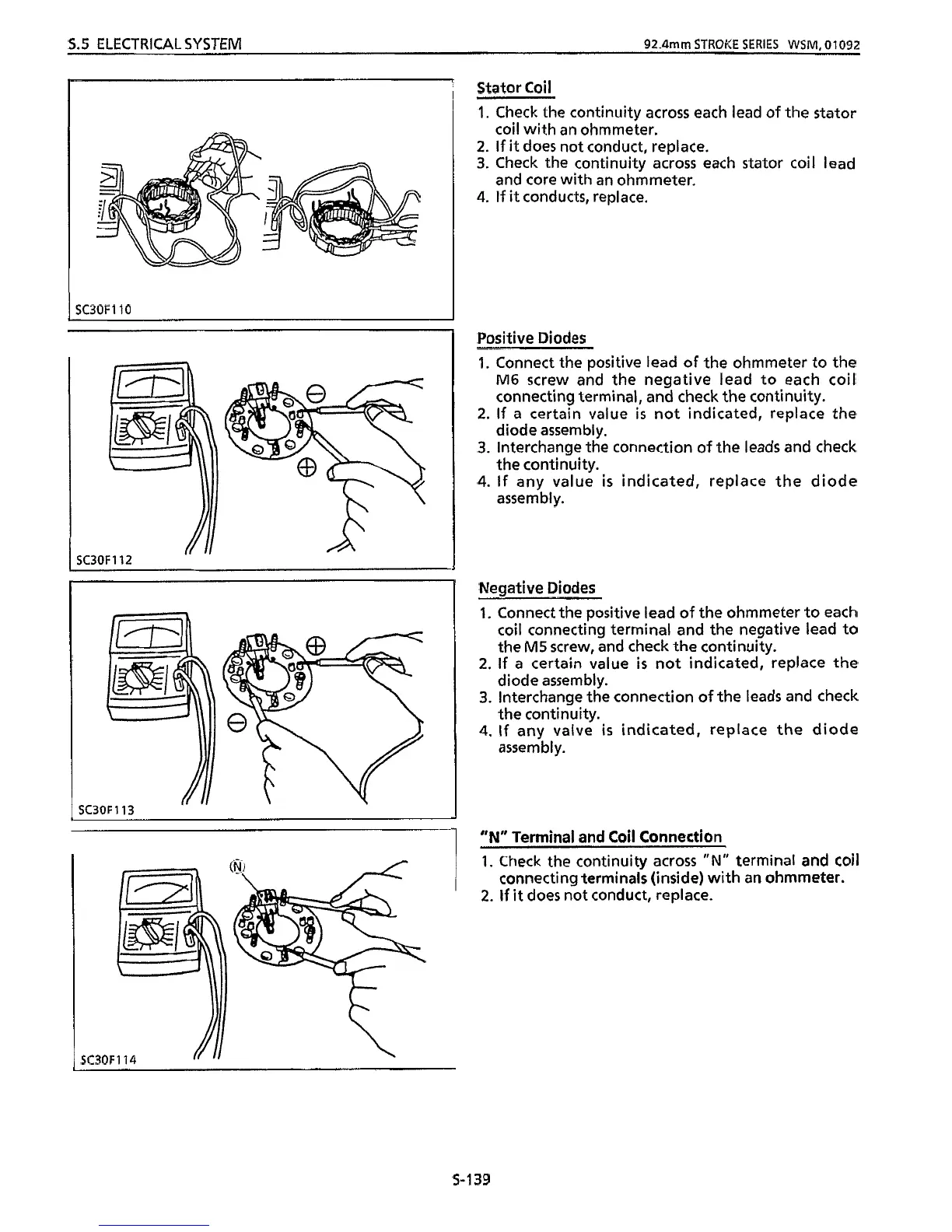

Stator
Coil
1.
Check the continuity across each lead
of
the stator
coil
with
an ohmmeter.
2.
If
it
does not conduct, replace.
3.
Check
the
continuity across each stator coil lead
and core with an ohmmeter.
4.
If
it
conducts, replace.
Positive Diodes
1.
Connect the positive lead
of
the
ohmmeter to the
M6
screw and the negative lead to each coil
connecting terminal, and check the continuity.
2.
If
a
certain value
is
not indicated, replace the
diode assembly.
3.
Interchange
the
connection
of
the leads and check
the continuity.
4.
If
any value
is
indicated, replace the diode
assembly.
Negative Diodes
1.
Connect the positive lead
of
the ohmmeter to each
coil connecting terminal and the negative lead to
the
M5
screw, and check the continuity.
2.
If
a certain value
is
not indicated, replace the
diode assembly.
3.
Interchange the connection
of
the leads and check
the continuity.
4.
If
any valve
is
indicated, replace the diode
assembly.
“N“
Terminal and Coil Connection
1.
Check
the
continuity across
“N”
terminal and coil
connecting terminals (inside)
with
an ohmmeter.
2.
If
it
does not conduct, replace.
5-1
39
