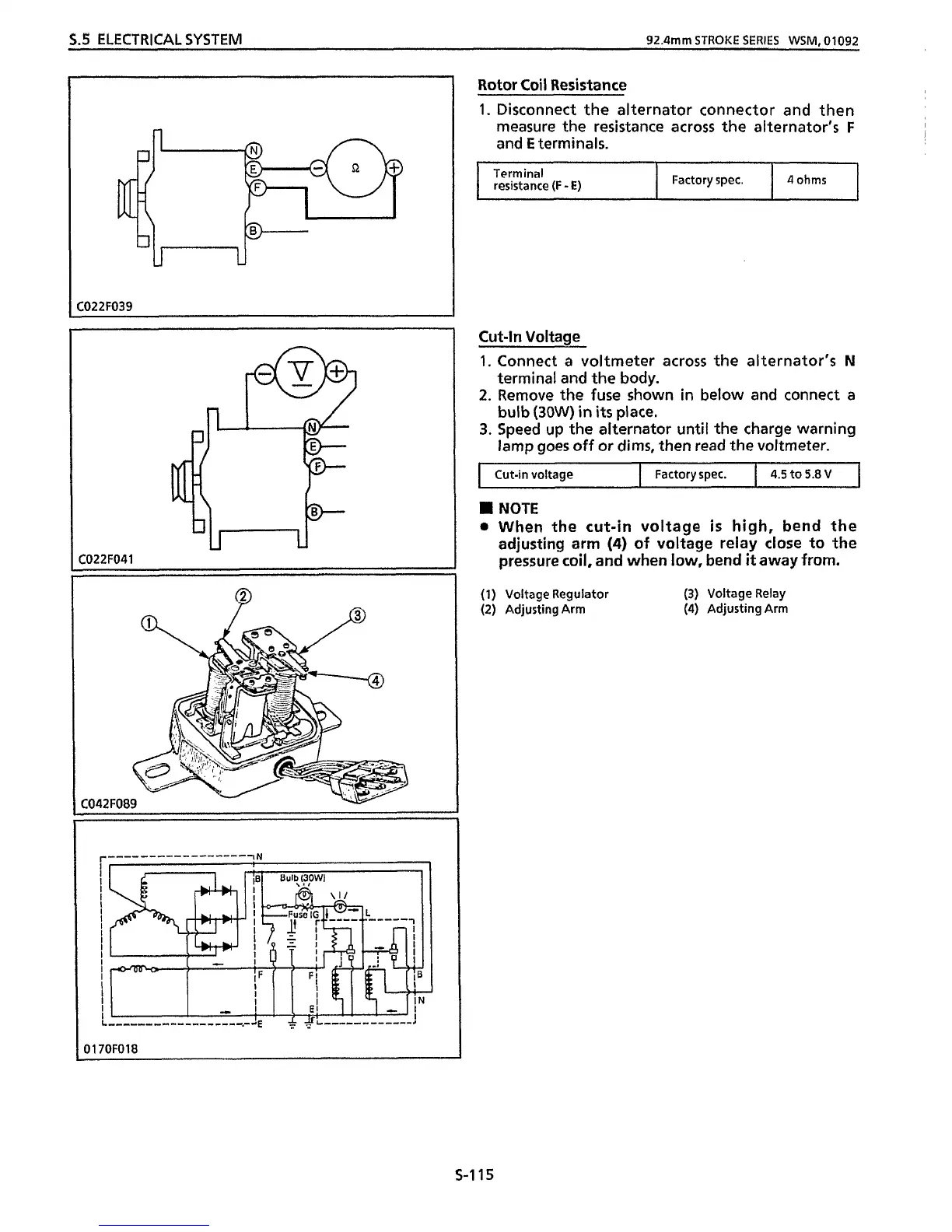

S.5 ELECTRICAL SYSTEM 92.4mm STROKE SERIES WSM, 01092
I C022F039
n
Factory spec.
Terminal
resistance
(F - E)
d
4 ohms
-
1022F041
Q
0 1 70F018
Cut-In Voltaae
1. Connect a voltmeter across the alternator's N
terminal and the body.
2. Remove the fuse shown in below and connect a
bulb
(30W) in its place.
3. Speed up the alternator until the charge warning
lamp goes off or dims, then read the voltmeter.
4.5 to 5.8 v
Cut-in voltage Factory spec.
I NOTE
0 When the cut-in voltage is high, bend the
adjusting arm
(4) of voltage relay close to the
pressure
coil, and when low, bend it away from.
(1) Voltage Regulator (3) Voltage Relay
(2) Adjusting Arm (4) Adjusting Arm
S-115
