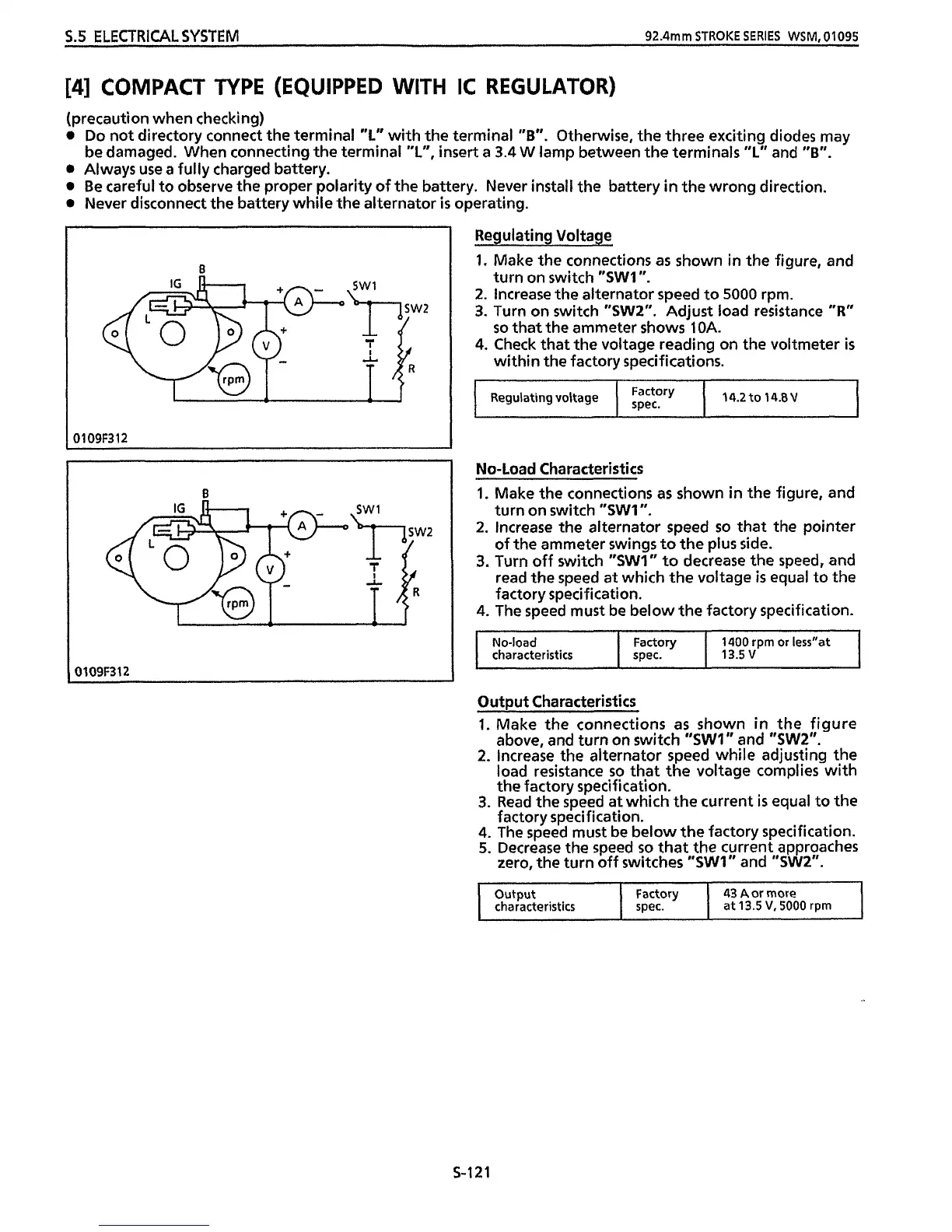

S.5
ELECTRICAL
SYSTEM
92.4mm
STROKE SERIES
WSM,01095
Regulating voltage
[4]
COMPACT
TYPE
(EQUIPPED WITH
IC
REGULATOR)
14.2
to
14.8
V
(precaution when checking)
0
Do
not directory connect the terminal
"L"
with
the terminal
"B".
Otherwise, the three exciting diodes may
be damaged. When connecting the terminal
"L",
insert a 3.4
W
lamp between the terminals
"L"
and
"B".
0
Always use a fully charged battery.
0
Be careful to observe the proper polarity of the battery. Never install the battery
in
the
wrong direction.
0
Never disconnect the battery while the alternator
is
operating.
No-load
characteristics
01
09F3
12
r
Factory
1400
rpm or less"at
spec.
13.5
V
I0109F312
output
characteristics
Factory
43
A
or
more
spec.
at
13.5
V,
5000
rpm
No-Load Characteristics
1.
Make the connections as shown
in
the
figure, and
turn on
switch
"SWI".
2.
Increase the alternator speed
so
that the pointer
of the ammeter swings
to
the plus side.
3.
Turn off
switch
"SWI
"
to
decrease the speed, and
read the speed at which the voltage
is
equal to the
factory specification.
4.
The speed must be below the factory specification.
s-121
