S.1
ENGINE
BODY
92.4mm
STROKE
SERIES
WSM, 0109A
0087F050
I
19OOF10400
01 07FO6l
x
41
09F024
I
PI

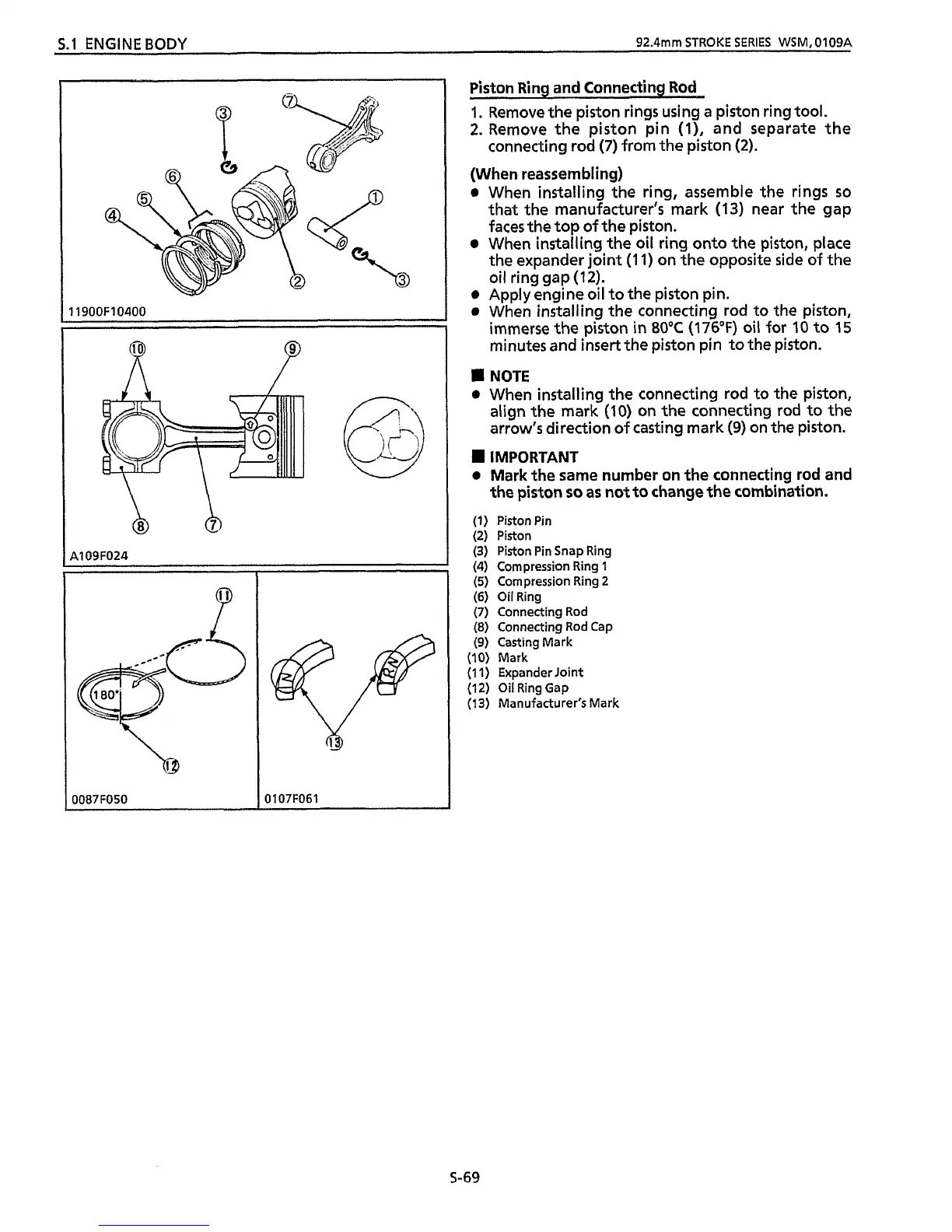

Piston Ring and Connecting Rod
1.
Remove the piston rings using
a
piston ring tool.
2.
Remove the piston pin
(l),
and separate the
(When reassembling)
0
When installing the ring, assemble the rings
so
that the manufacturer's mark
(13)
near the gap
faces
the top
of
the piston.
When installing
the
oil ring onto the piston, place
the expander joint
(1 1)
on the opposite side of the
oil ringgap(l2).
0
Apply engine oil to the piston pin.
0
When installing the connecting rod to the piston,
immerse
the
piston
in
8OoC
(176°F)
oil for 10 to
15
minutes and insert the piston pin to the piston.
NOTE
0
When installing the connecting rod to the piston,
align the mark
(10)
on the connecting rod to the
arrow's direction of casting mark
(9)
on the piston.
0
Mark the same number on the connecting rod and
the piston
so
as
not to change
the
combination.
(1)
Piston Pin
(2) Piston
(3)
Piston Pin Snap Ring
(4) Compression Ring
I
(5)
Compression Ring 2
(6)
OilRing
(7)
Connecting Rod
(8)
Connecting Rod Cap
(9) Casting Mark
(10)
Mark
(1 1) ExpanderJoint
(1 2) Oil Ring Gap
(13)
Manufacturer's Mark
connecting rod
(7)
from the piston (2).
IMPORTANT
S-69
To Next Page
