5-S19
G2160, WSM
STEERING

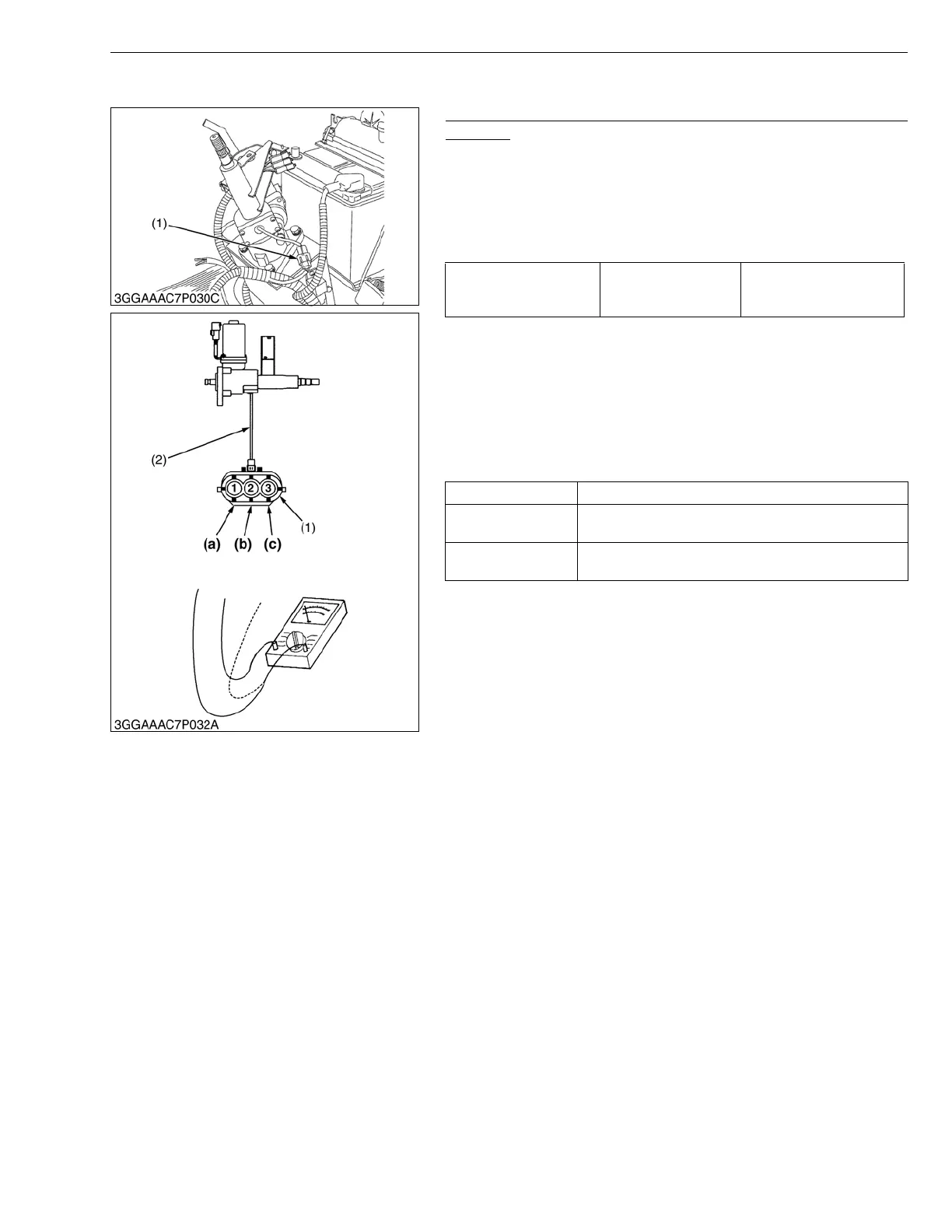

(4) Torque sensor 3P Connector Terminal
Checking the Resistance of the Torque Sensor 3 Connector
Terminal
1. Using a circuit tester, measure the terminal resistance between
the red and black wires, as well as that between the white and
black wires of torque sensor 3P connector (1).
2. If out of specification replace the power steering assembly with
new one. If the resistance is okay, go to “checking the wire
harness”.
• Before measuring the resistance, lightly bend the root of the
cable and gently pull it for easy, reliable checking. Be
careful to keep the circuit tester probes tight at the
terminals.
NOTE
• The steering wheel turns in different directions on the
broken wires.
W1013879
Resistance
red-black
white-black
Factory spec. 13.0 to 15.0 Ω
Problem Defect
Unexpected turn
clockwise
Red or black wire in poor contact
Black/white wire in poor contact (Harness side)
Unexpected turn
counterclockwise
White wire in poor contact
(1) Torque Sensor 3P Connector
(2) Cable
(a) Red
(b) Black
(c) White
To Next Page
