G-26
G2160, WSM
G GENERAL
Checking Hydraulic Hose
CAUTION
• Be sure to stop the engine and remove the key before
checking and replacing hydraulic hose.
• Allow transmission case to cool down sufficiently; oil can be
hot and may cause burns.
Check to see if hydraulic hoses are properly fixed every 200
hours of operation.
1. Check to see that all lines and hose clamps are tight and not
damaged.
2. If hoses and clamp are found worn or damaged, replace or repair
them at once.
W1036641
[7] CHECK POINTS OF EVERY 300 HOURS
Changing Transmission Fluid
CAUTION
• Be sure to stop the engine and remove the key before
changing or checking the oil.
• Allow transmission case to cool down sufficiently; oil can be
hot and may cause burns.
1. Place the machine on level ground.
2. Remove the drain plug (1) and oil inlet plug (2), and drain the
used oil completely.
3. After draining the oil, reinstall the drain plug (1).
4. Fill with new oil up to the upper level (A) on the oil level dipstick
(3).
5. After draining, disassemble and clean the strainers and change
the oil filter cartridge. After reassembling, fill with UDT or SUPER
UDT hydraulic transmission fluid, or its equivalent.
6. After running the engine for a few minutes, stop it and check the
oil level again; add oil to the prescribed level.
IMPORTANT
• Operate only at low RPM’s immediately after changing the
transmission fluid and filter cartridge.
Keep the engine at medium speed for a few minutes to
insure proper lubrication of all parts so there is no damage
to transmission.
W1036772

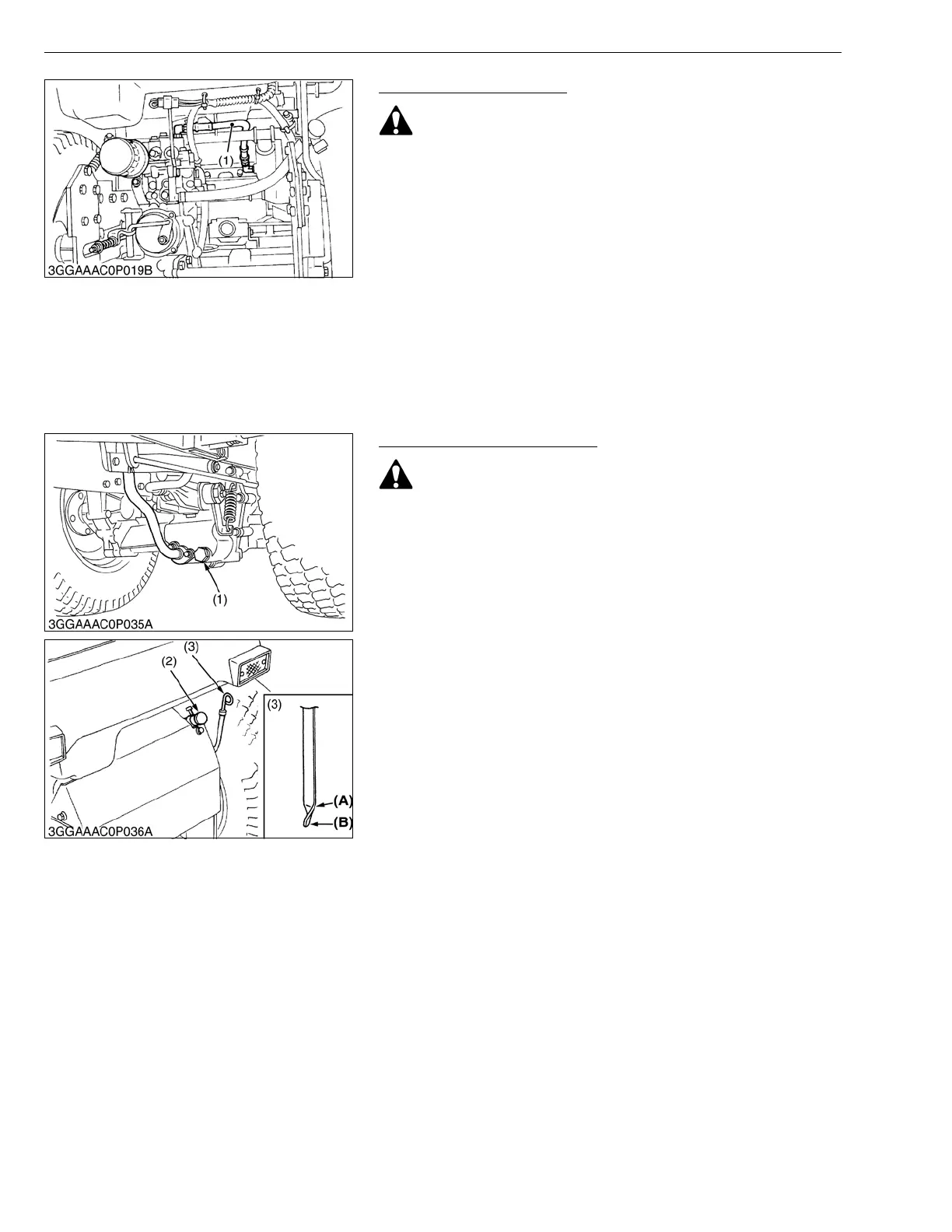

(1) Mower Lift Cylinder Hose
(1) Drain Plug
(2) Oil Inlet Plug
(3) Oil Level Dipstick
(A) Upper Level
(B) Lower Level
