Kubota G2160 User Manual

6-S9
G2160, WSM
HYDRAULIC SYSTEM
[2] CYLINDER
(1) Disassembling and Assembling
(A) Mower Lift Cylinder
Separating Mower Lift Cylinder
1. Disconnect the mower lift cylinder hose (2).
2. Pull out the cotter pins (4).
3. Separate the mower lift cylinder (3) from the frame.
4. Remove the adaptor (1).
(When reassembling)
• Install the adaptor as shown in the figure.
• Keep the clearance between the mower lift cylinder hose and
other parts.
W1017880
Tightening torque
Mower lift cylinder hose
14.7 N·m
1.5 kgf·m
10.8 ft-lbs
Adaptor (Mower lift
cylinder)
35.3 N·m
3.6 kgf·m
26.0 ft-lbs

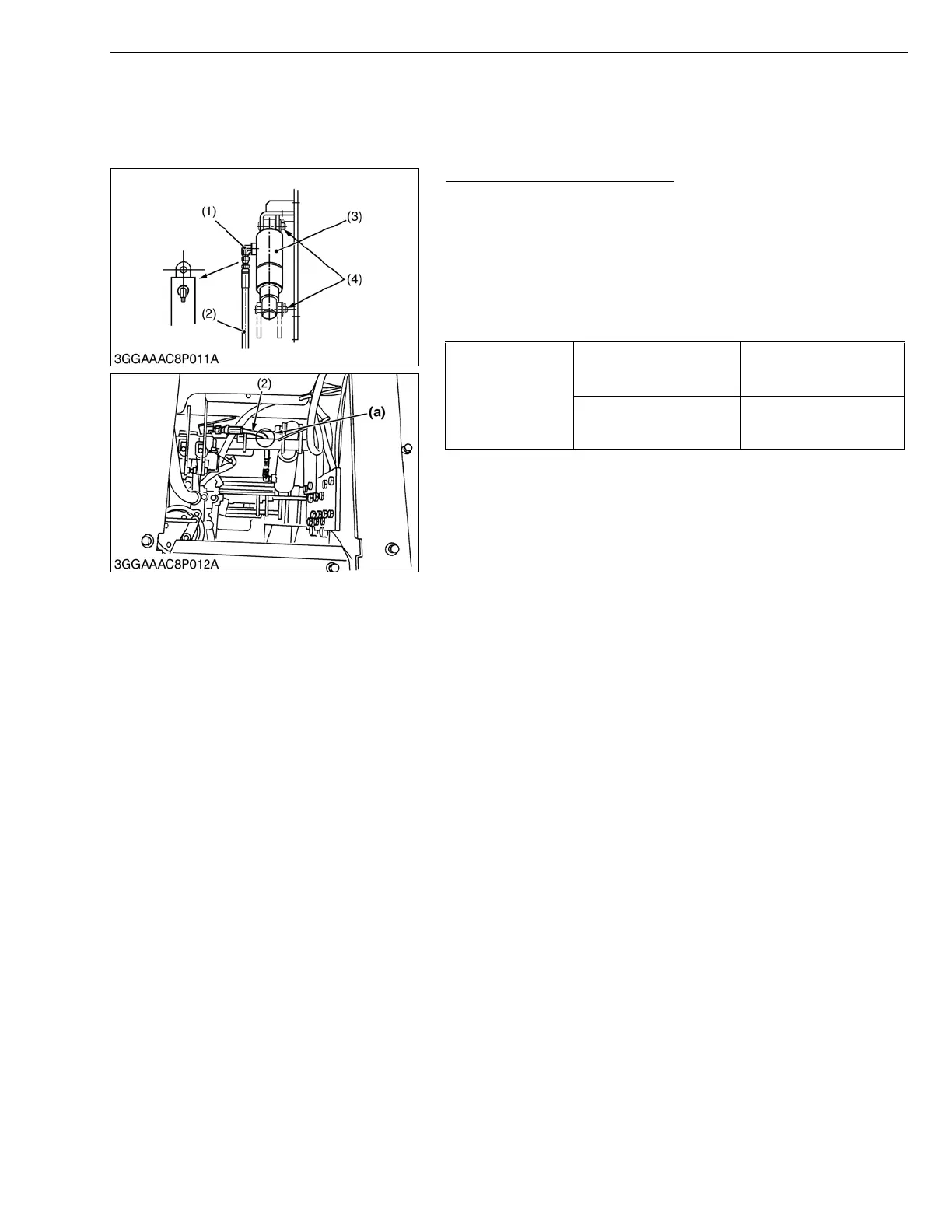

(1) Adaptor (Mower Lift Cylinder)
(2) Mower Lift Cylinder Hose
(3) Mower Lift Cylinder
(4) Cotter Pins
(a) Keep Clearance
KiSC issued 11, 2006 A
