7-S3
G2160, WSM
PTO SYSTEM
3. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING

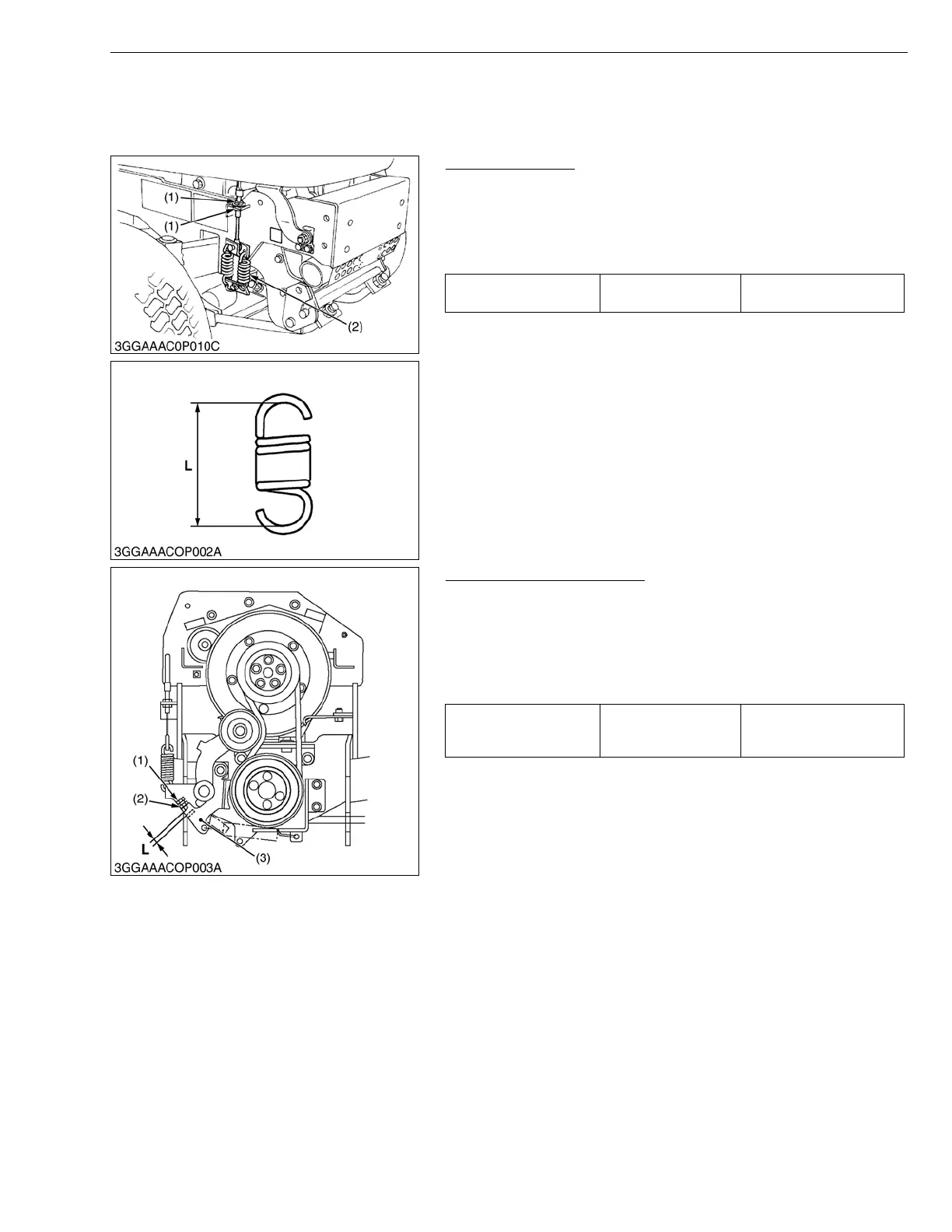

PTO Belt Tension
1. Place the machine on level ground, and stop the engine.
2. Set the PTO clutch lever to “ENGAGE” position.
3. Measure the length (L) of PTO clutch spring (2).
4. If the measurement is not within the factory specifications, adjust
with the adjusting nuts (1).
IMPORTANT■
• When replace the front PTO belts with new ones, the length
(L) of PTO clutch spring (2) should be 91 to 92 mm (3.58 to
3.62 in.).
After working for 50 hours, be sure to readjust the length (L)
to the factory specifications.
W1010891
Adjusting Front PTO Brake
1. Place the machine on level ground, and stop the engine.
2. Set the PTO clutch lever to “DISENGAGE” position.
3. Measure the clearance (L) between the tension arm (3) and tip of
adjusting screw (1).
4. If the measurement is not within the factory specifications, loosen
the lock nut (2) and turn the adjusting screw (1) to adjust.
IMPORTANT
■
• After adjustment, check to see that the PTO brake is
released when the PTO clutch is engaged.
W1011087
Length (L) of PTO clutch
spring
Factory spec.
88.0 to 89.0 mm
3.47 to 3.54 in.
(1) Adjusting Nuts (2) PTO Clutch Spring
Clearance (L) between
the tension arm and tip
of adjusting screw
Factory spec.
3.0 to 4.0 mm
0.12 to 0.16 in.
(1) Adjusting Screw
(2) Lock Nut
(3) Tension Arm
KiSC issued 11, 2006 A
