5-S26
G2160, WSM
STEERING

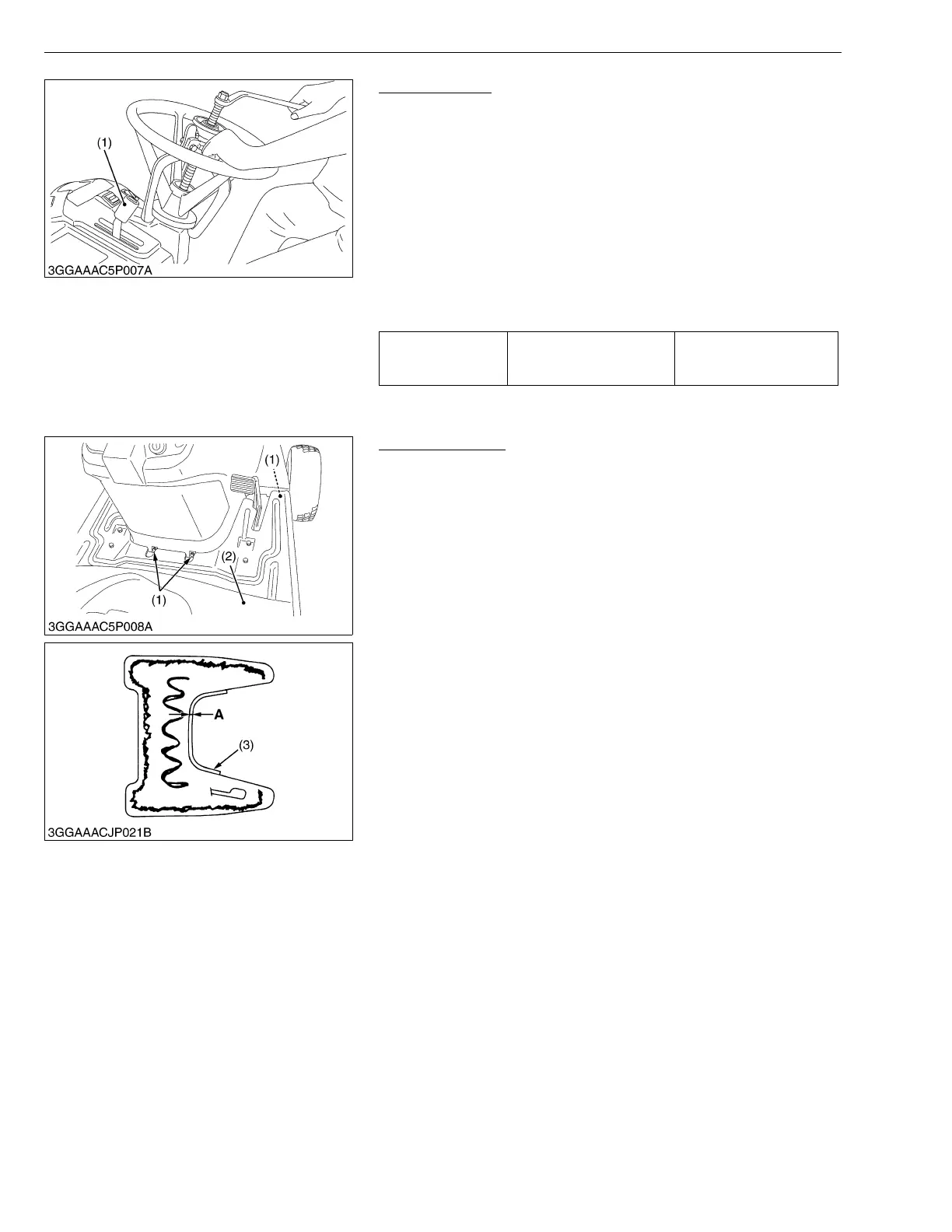

Steering Wheel
1. Remove the grip of the throttle lever (1).
2. Remove the steering pad and remove the steering wheel
mounting nut.
3. Remove the steering wheel using the steering wheel puller
(Code. No. 07916-51090) and steering wheel puller adaptor.
• When removing steering wheel, to use steering wheel puller.
Not to use the hammer to prevent electric power steering
from damaging.
• Remove the steering wheel after setting it to the straight
ahead position.
(When reassembling)
W1020923
Separating Panel
1. Remove the speed change pedal.
2. Peel the step sheet (2) halfway.
3. Remove the panel mounting screws (1).
4. Separate the panel.
(When reassembling)
• Clean up the step sheet and the step. Apply instantaneous
adhesive on the step sheet as shown in the figure.
• Position the step sheet so that the clearance between the step
sheet and the panel is less than 2.0 mm (0.079 in.) as shown in
the figure.
W1022194
Tightening torque
Steering wheel mounting
nut
19.6 to 24.5 N·m
2.0 to 2.5 kgf·m
14.5 to 18.1 ft-lbs
(1) Throttle Lever
(1) Panel Mounting Screw
(2) Step Sheet
(3) Panel
A : Less than 2.0 mm (0.079 in.)
To Next Page
