HYDRAULIC SYSTEM

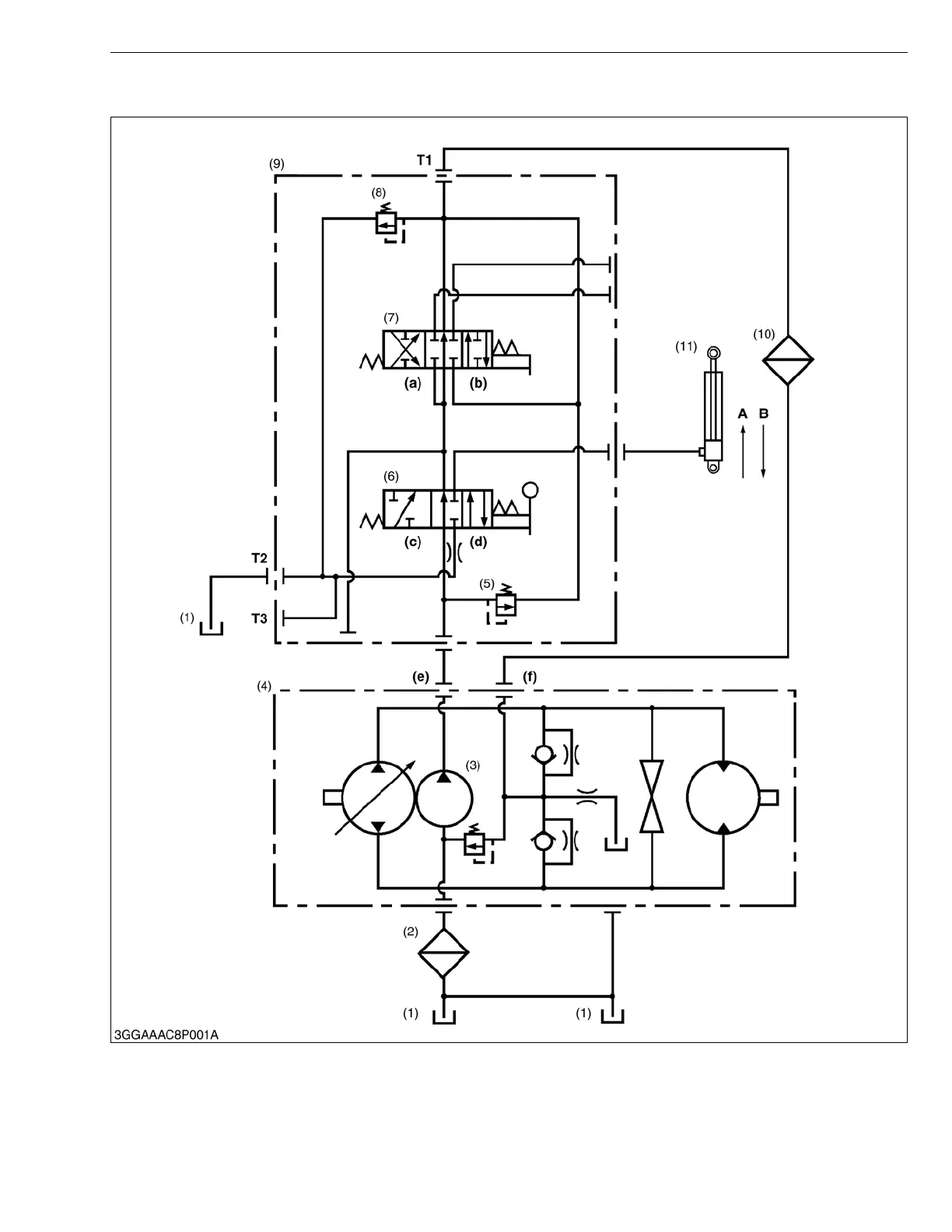

1. HYDRAULIC CIRCUIT (LOW DUMP)
(1) Transmission Case
(2) Oil Strainer
(3) Charge Pump
(4) Hydrostatic Transmission
(HST)
(5) Relief Valve
(6) Valve (for Mower Life Cylinder)
(7) Valve (for Grass Collector
Cylinder)
(8) Filter Relief Valve
(9) Control Valve
(10) Oil Filter Cartridge
(11) Mower Lift Cylinder
A : Up
B : Down
(a) Open
(b) Close
(c) Up
(d) Down
(e) Out
(f) Return
