6-S6
G2160, WSM
HYDRAULIC SYSTEM

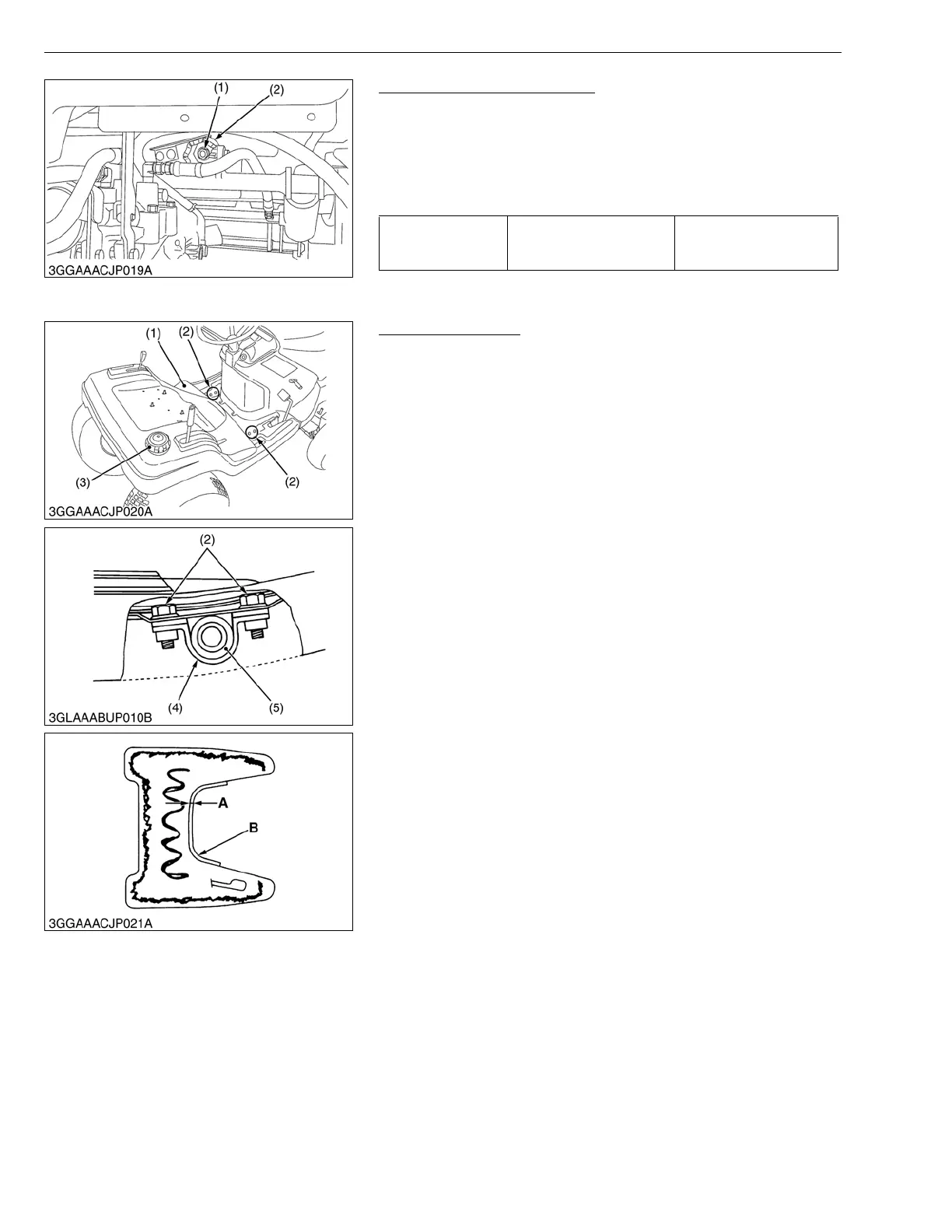

Cutting Height Adjusting Dial
1. Lift the mower to the highest position.
2. Remove the cam mounting nut (1).
3. Remove the cutting height adjusting dial, plain washer and cam
(2).
(When reassembling)
• Apply grease to the outside of cam.
W1012416
Separating Fender
1. Remove the speed change pedal.
2. Peel the step sheet (1) halfway.
3. Remove the step support mounting screws (2).
4. Remove the step support (5) and rubber bushing (6).
5. Remove the fuel cap (4).
6. Separate the fender from the frame.
(When reassembling)
• Apply grease to the inside of rubber bushing.
• Clean up the step sheet and the step. Apply instantaneous
adhesive on the step sheet as shown in the figure.
• Position the step sheet so that the clearance between the step
sheet and the panel is less than 2.0 mm (0.079 in.) as shown in
the figure.
W1012693
Tightening torque Cam mounting nut
39.2 to 45.1 N·m
4.0 to 4.6 kgf·m
28.9 to 33.3 ft-lbs
(1) Cam Mounting Nut (2) Cam
(1) Step Sheet
(2) Step Support Mounting Screws
(3) Fuel Cap
(4) Step Support
(5) Rubber Bushing
(A) Less than 2.0 mm
(0.079 in.)
(B) Panel
