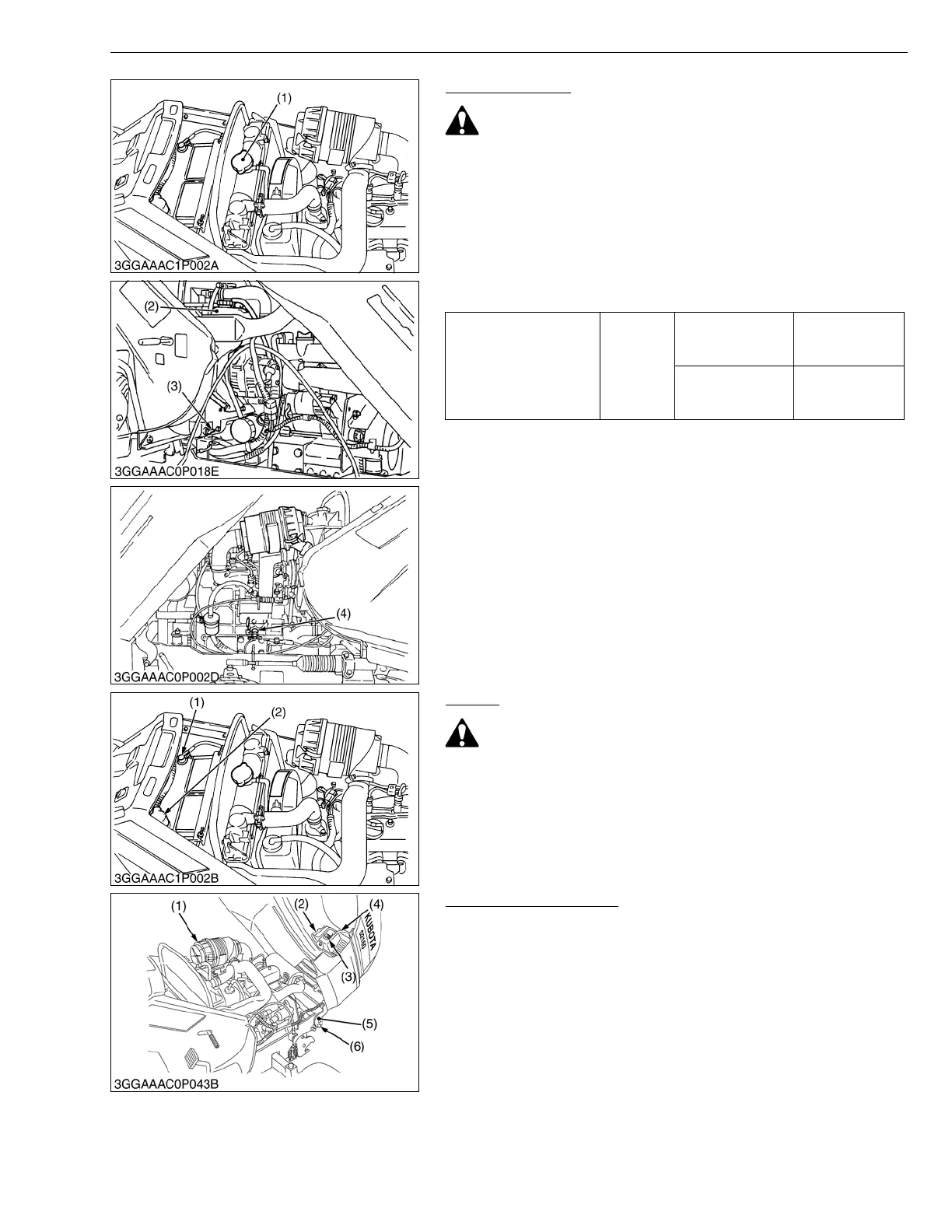

1-S13
G2160, WSM
ENGINE
Draining Coolant
CAUTION
• Never open the radiator cap while operating or immediately
after stopping. Otherwise, hot water will spout out from the
radiator. Wait for more than ten minutes to cool the radiator,
before opening the cap.
1. Stop the engine and let cool down.
2. Remove the radiator coolant drain plug (3) and engine coolant
drain plug (4) to drain the coolant.
3. Remove the radiator cap (1) to completely drain the coolant.
4. After all coolant is drained, close the drain plugs.
W1019510
Battery
CAUTION
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Disconnect the negative cable (1) from the battery.
2. Disconnect the positive cable (2) from the battery.
W1019788
Bonnet and Air Cleaner
1. Disconnect the 1P connectors (3) from the head light (2).
2. Remove the wiring (4) from the bonnet.
3. Remove the bonnet stay mounting screws (6).
4. Remove the bonnet with the bonnet bracket (5) from the frame.
5. Loosen the air cleaner hose clamp.
6. Remove the air cleaner (1) with air cleaner hose.
W1019921
Coolant Capacity
Radiator
2.1 L
2.2 U.S.qts
1.8 lmp.qts
Recovery tank
0.25 L
0.26 U.S.qts
0.22 lmp.qts
(1) Radiator Cap
(2) Recovery Tank
(3) Radiator Coolant Drain Plug
(4) Engine Coolant Drain Plug
(1) Negative Cable (2) Positive Cable
(1) Air Cleaner
(2) Head Light
(3) 1P Connectors
(4) Wiring
(5) Bonnet Bracket
(6) Bonnet Stay Mounting Screws
To Next Page
