(7) Starter
Electromagnetic Drive Type
1. Remove the C terminal nut (7), and disconnect the connecting lead (12).
2. Remove the solenoid switch mounting nuts (1), and remove the solenoid switch (5).
3. Remove the end frame cap (17).
4. Remove the brake shoe (16), brake spring (15) and gasket (14).
5. Remove the through bolts (22), and remove the rear end frame (13).
6. Remove the brush from the brush holder while holding the spring up.
7. Remove the brush holder (21).
8. Draw out the yoke (19) from the starter drive housing (2).
9. Draw out the armature (10) with the drive lever (3).
NOTE
• Do not damage to the brush and commutator.
(When reassembling)
• Apply grease (DENSO.CO.LTD. No. 50 or equivalent) to the parts indicated in the figure.
– Joint of solenoid switch (a)
– Bushing (b)
– Drive lever (c)
– Collar (d)
– Teeth of pinion gear (e)
– Armature shaft (f)
9Y1211607ENS0063US0

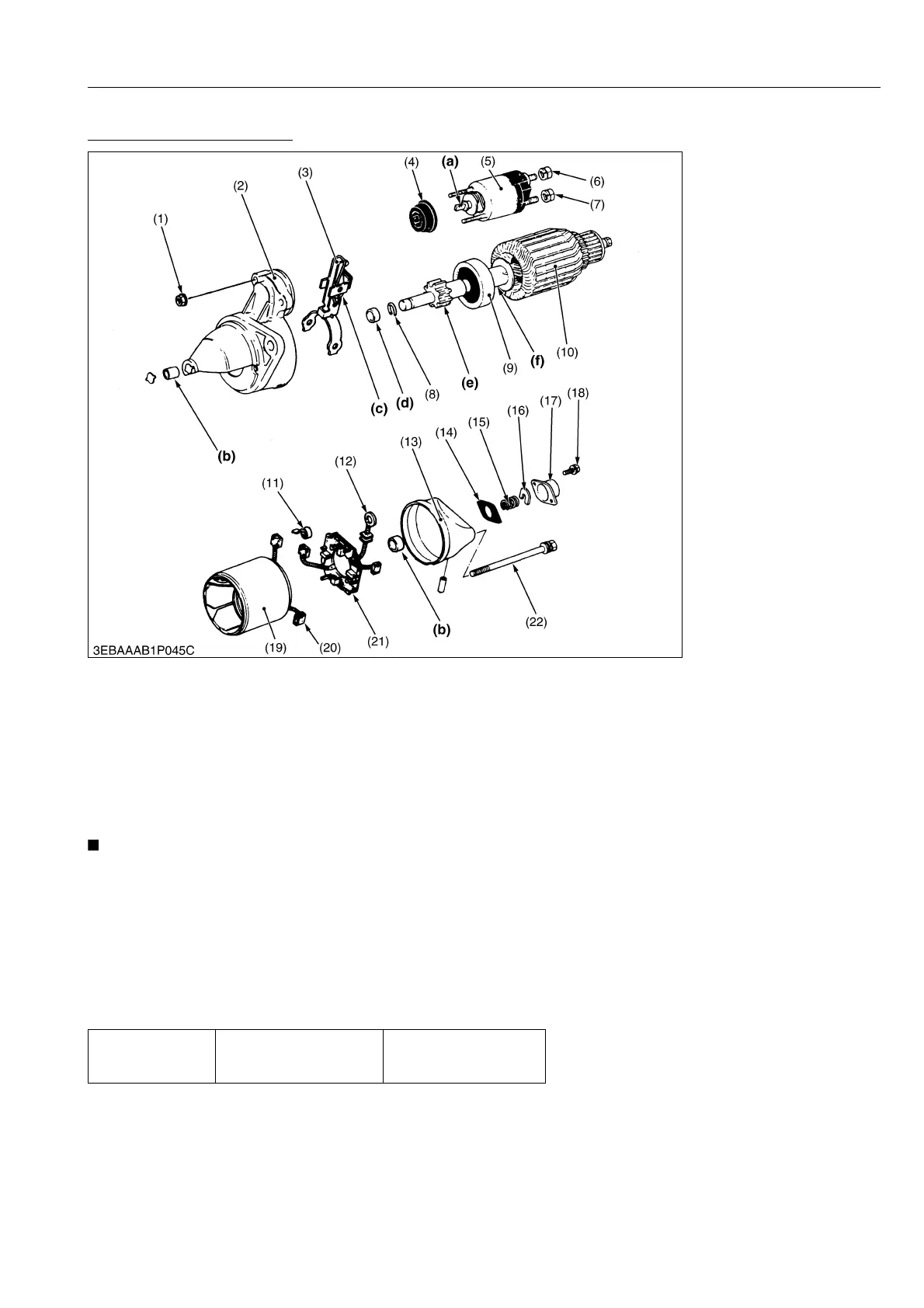

(1) Solenoid Switch Mounting
Nut
(2) Starter Drive Housing
(3) Drive Lever
(4) Gasket
(5) Solenoid Switch
(6) B Terminal Nut
(7) C Terminal Nut
(8) Snap RIng
(9) Overrunning Clutch
(10) Armature
(11) Brush Spring
(12) Connecting Lead
(13) Rear End Frame
(14) Gasket
(15) Brake Spring
(16) Brake Shoe
(17) End Frame Cap
(18) Screw
(19) Yoke
(20) Brush
(21) Brush Holder
(22) Through Bolt
Tightening torque B terminal nut
7.9 to 9.8 N·m
0.80 to 1.0 kgf·m
5.8 to 7.2 lbf·ft
