GENERATOR
GL6000A-AU-B, GL6000D-AU-B,GL9000A-AU-B, GL9000D-AU-B, WSM
2-M7
5. DIGITAL CONTROL PANEL
To avoid personal injury:
• When the controller is in "Auto" mode, and remote start/auto start is connected, the generator can start
at any time without warning. Do not conduct servicing, fit up, or maintenance unless the generator has
been switched off, key removed, and battery and external power isolated.
The GL6000D-AU-B and GL9000D-AU-B are fitted with a deep sea electronics 4520 digital control panel. The
following information pertains to the controller in its standard GL series configuration. For custom configurations
please see your local KUBOTA dealer.
9Y1211607GRM0008US0
Description of Controls
Control of the panel is via push-buttons mounted on
its face. The main buttons are stop reset mode, auto
mode, and manual/start mode. For normal operation,
these are the only controls on the panel that need to be
operated. Further functionality/information can be found
using the menu navigation buttons.
9Y1211607GRM0009US0

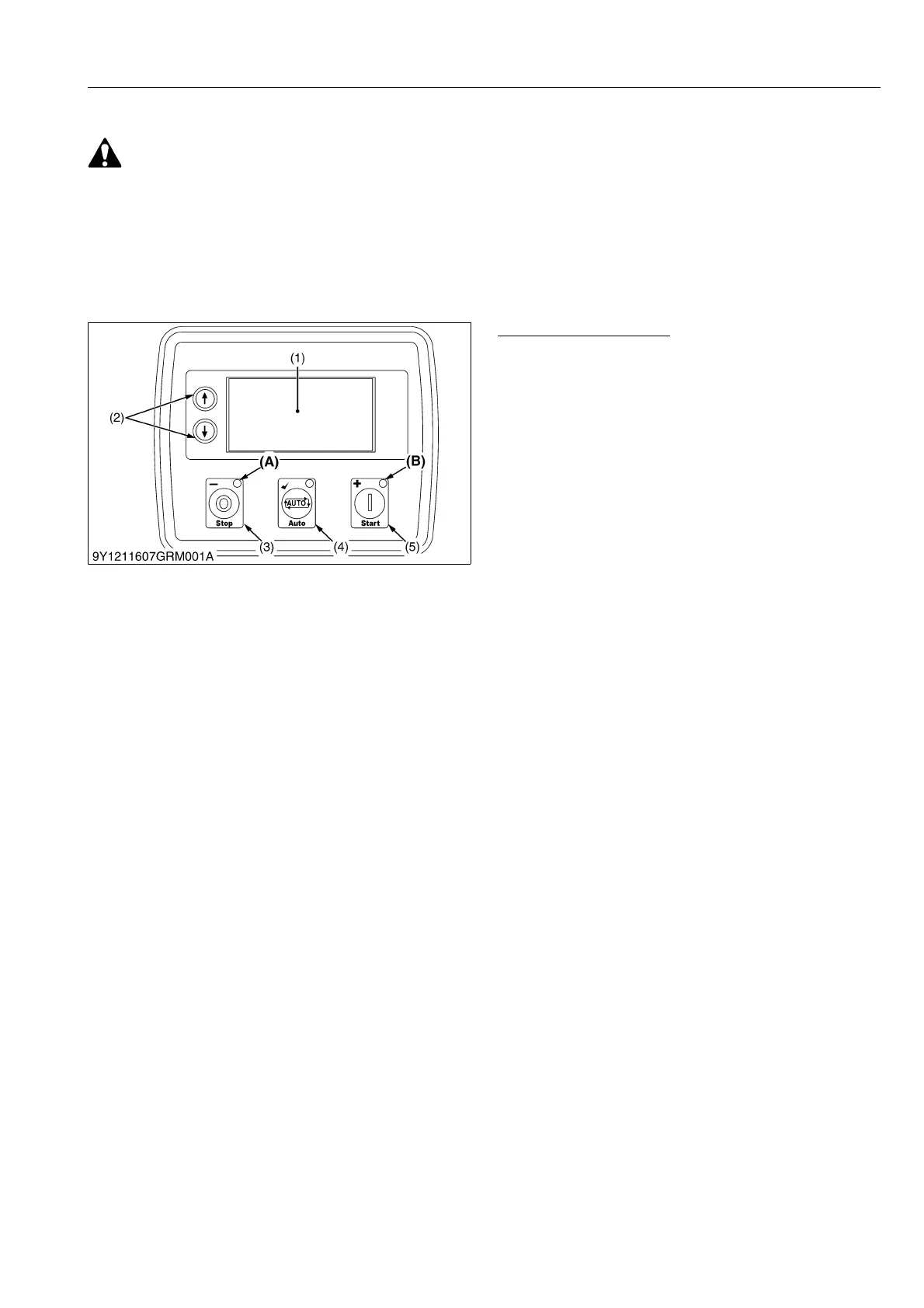

(1) Module Display
(2) Menu Navigation
(3) Stop / Reset Mode Button
(4) Auto Mode Button
(5) Manual / Start Mode Button
(A) Stop / Reset Mode LED.
(B) Manual / Start Mode LED.
