Kubota GL9000D-AU-B User Manual

GENERATOR
GL6000A-AU-B, GL6000D-AU-B,GL9000A-AU-B, GL9000D-AU-B, WSM
2-S20
[2] DISASSEMBLING AND ASSEMBLING
(1) External Components
Panel, Cover, Control Panel
1. Close the fuel valve and remove the fuel hose.
2. Remove the hanger (2), the engine roof (3) and the generator
roof (1) with fuel tank.
3. Remove the front frame (6) and rear cover (4) and side cover
(5).
4. Remove the cleaner cover (8).
5. Disconnect the connector between the generator (10) and
control panel (12).
6. Disconnect the ground cables (7).
7. Remove the control panel (12) with battery isolator switch (11).
8. Remove the cooling air port cover (9).

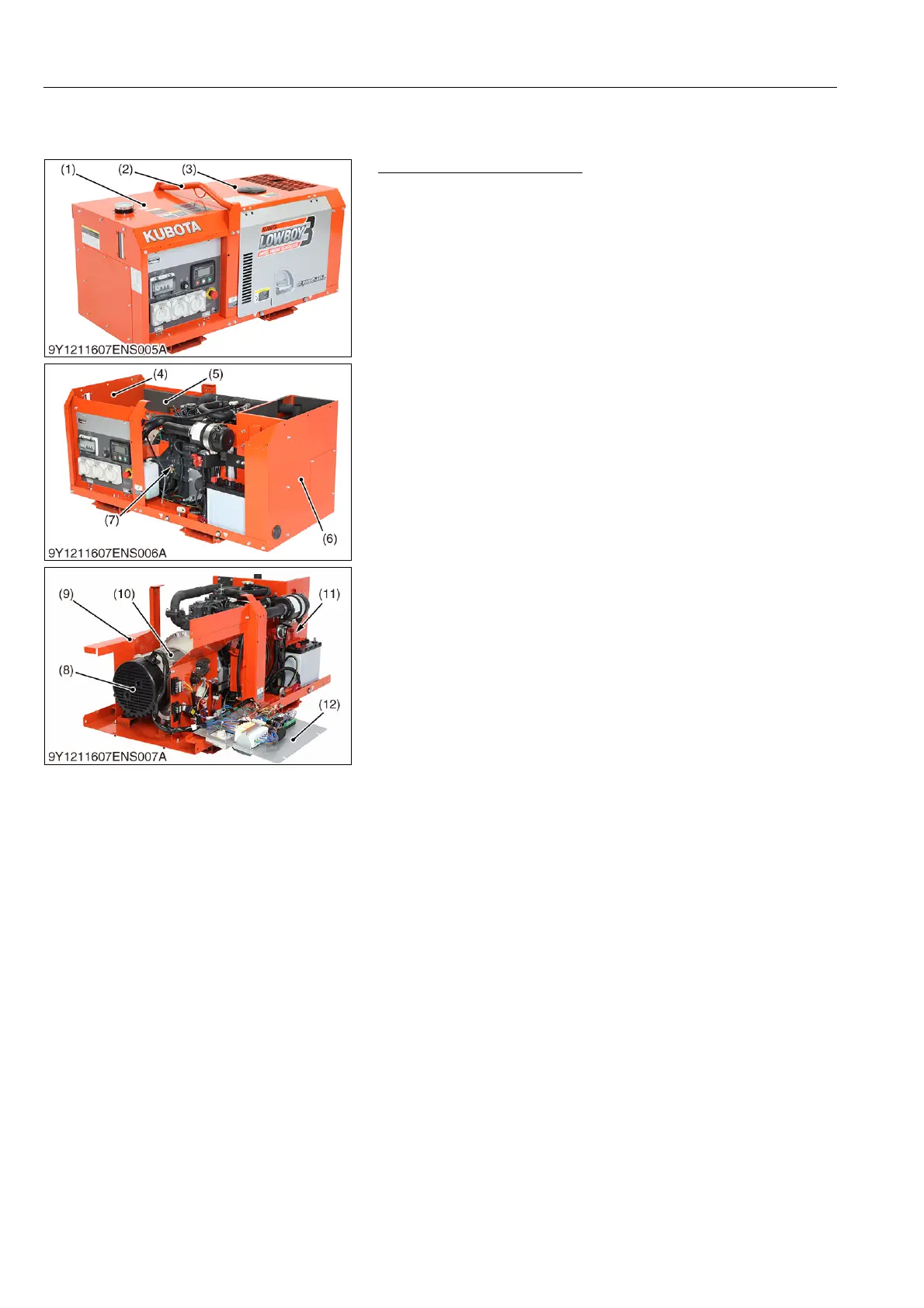

9Y1211607GRS0025US0
(1) Generator Roof
(2) Hanger
(3) Engine Roof
(4) Rear Frame
(5) Side Cover
(6) Front Frame
(7) Ground Cables
(8) Cleaner Cover
(9) Cooling Air Port Cover
(10) Generator
(11) Battery Isolator Switch
(12) Control Panel
KiSC issued 06, 2016 A
