19OPERATING THE TRACTOR
BAdjustment of Foldable ROPS
A Adjust the free fall of the ROPS upper frame regularly.
A If you feel less friction in folding the ROPS, remove the
cotter pin (1), tighten the nut (2) until you feel the right
friction in the movement and then replace the cotter
pin.
STARTING
A The seat and suspension should be adjusted to
ensure that the controls are comfortably at hand for the
operator, ensuring that the operator maintains a good
posture and minimizes risks from whole body
vibration.
BOperator's Seat
To avoid personal injury:
A Make adjustments to the seat only while the
tractor is stopped.
A Make sure that the seat is completely secured
after each adjustment.
A Do not allow any person other than the
operator to ride on the tractor.
C Travel adjustment
Unlock the travel adjust lever and slide the seat backward
or forward, as required. The seat will lock in position when
the lever is released.
C Weight adjustment
Turn the weight adjust lever to achieve the optimum
suspension setting.
C Height adjustment
Pull up with your hands the seat pan to the desired height
of the three available positions.
Once it has reached the highest level, it will return to the
lowest level.
C Tilt adjustment
Pull the backrest tilt adjust lever and tilt the backrest to the
desired position.
C Arm rest
Armrest may be set at upright position if desired.
A After adjusting the operator's seat, be sure to check to
see that the seat is properly locked,

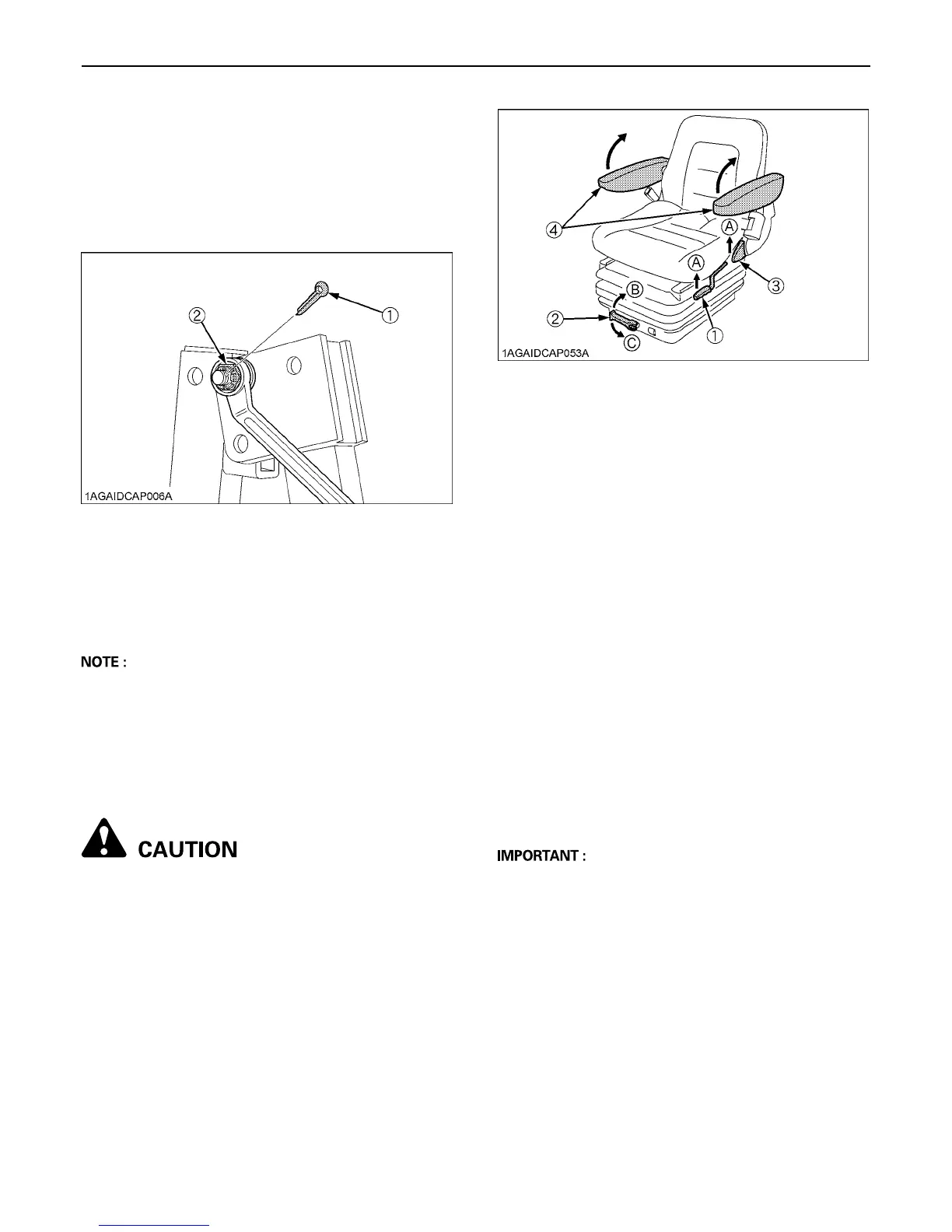

(1) Cotter pin
(2) Nut
1. Adjusting the Operator's Position.
(1) Travel adjust lever
(2) Weight adjust lever
(3) Backrest tilt adjust lever
(4) Arm rest
(A) "UNLOCK"
(B) "TO INCREASE TENSION"
(C) "TO DECREASE TENSION"
To Next Page
