34
OPERATING THE TRACTOR
B
Entering the Travel Speed Coefficient
When optional different-diameter tires are fitted on the machine,
the travel speed display mode must be changed.
Otherwise the travel speed will not get correctly displayed. Such mode switching is also needed when the original tires are
back on the machine.
C

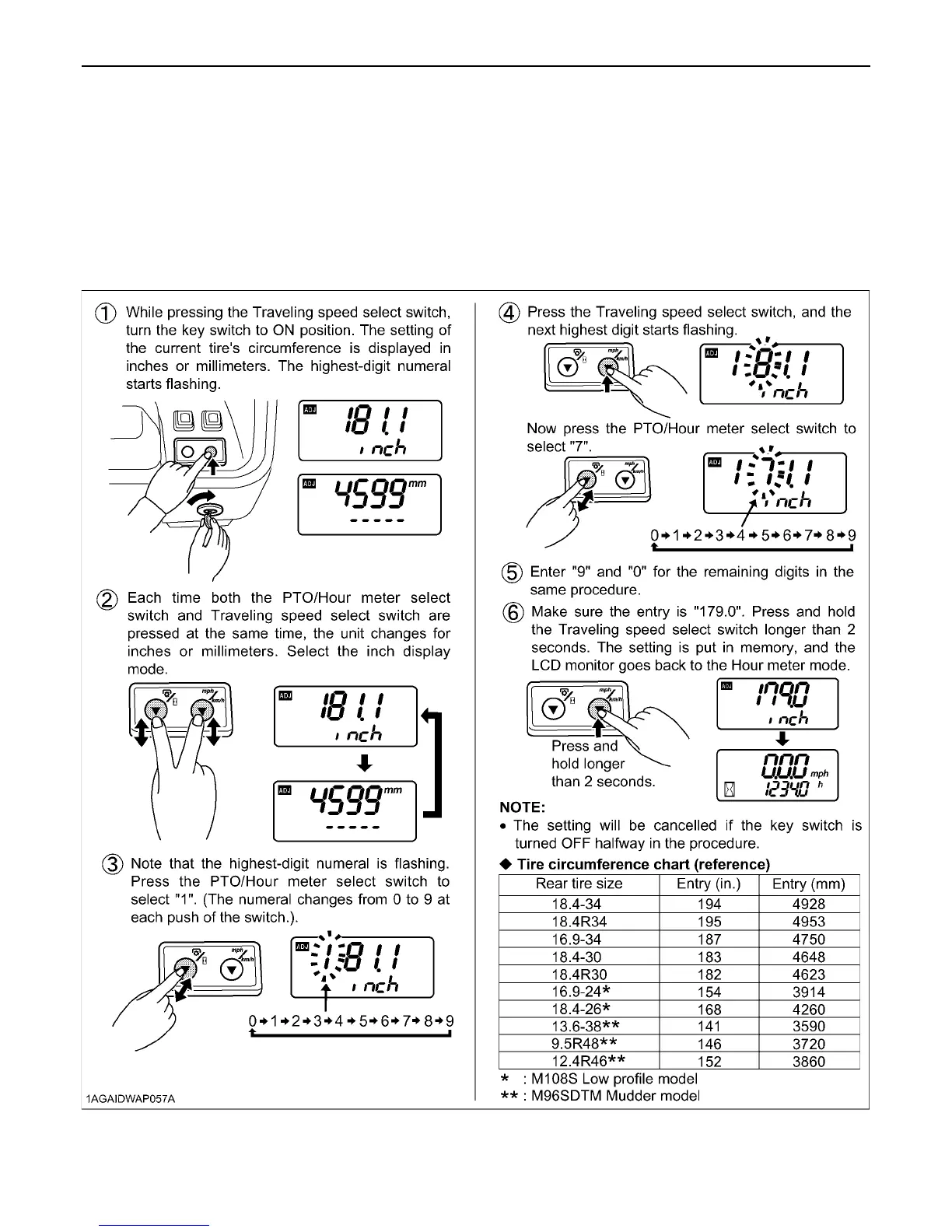

How to enter the tire cir
cumference
Example: Entering 179.0 inch.
55
57
