TIRES, WHEELS AND BALLAST54
A The front tread width for the front loader application on
2WD models should not be greater than 1640 mm
(64.6 in.).
BFront Wheels (with four wheel drive)
Front tread width can be adjusted as shown with the
standard equipped tires.
To change the tread width
1. Remove the wheel rim and disk mounting bolts.
2. Change the position of the rim and disk (right and left)
to the desired position, and tighten the bolts.
3. Adjust the toe-in [2 to 8mm (0.1 to 0.3 in.)]
See "Adjusting Toe-in" in "EVERY 200 HOURS" in
"PERIODIC SERVICE" section.
A Always attach wheels as shown in the drawing.
A If not attached as illustrated, transmission parts may
be damaged.
A When re-fitting or adjusting a wheel, tighten the bolts
to the following torques then recheck after driving the
tractor 200m (200 yards) and thereafter according to
service interval. (See "MAINTENANCE" section.)
A Wheels with beveled or tapered holes: Use the
tapered side of lug nut.

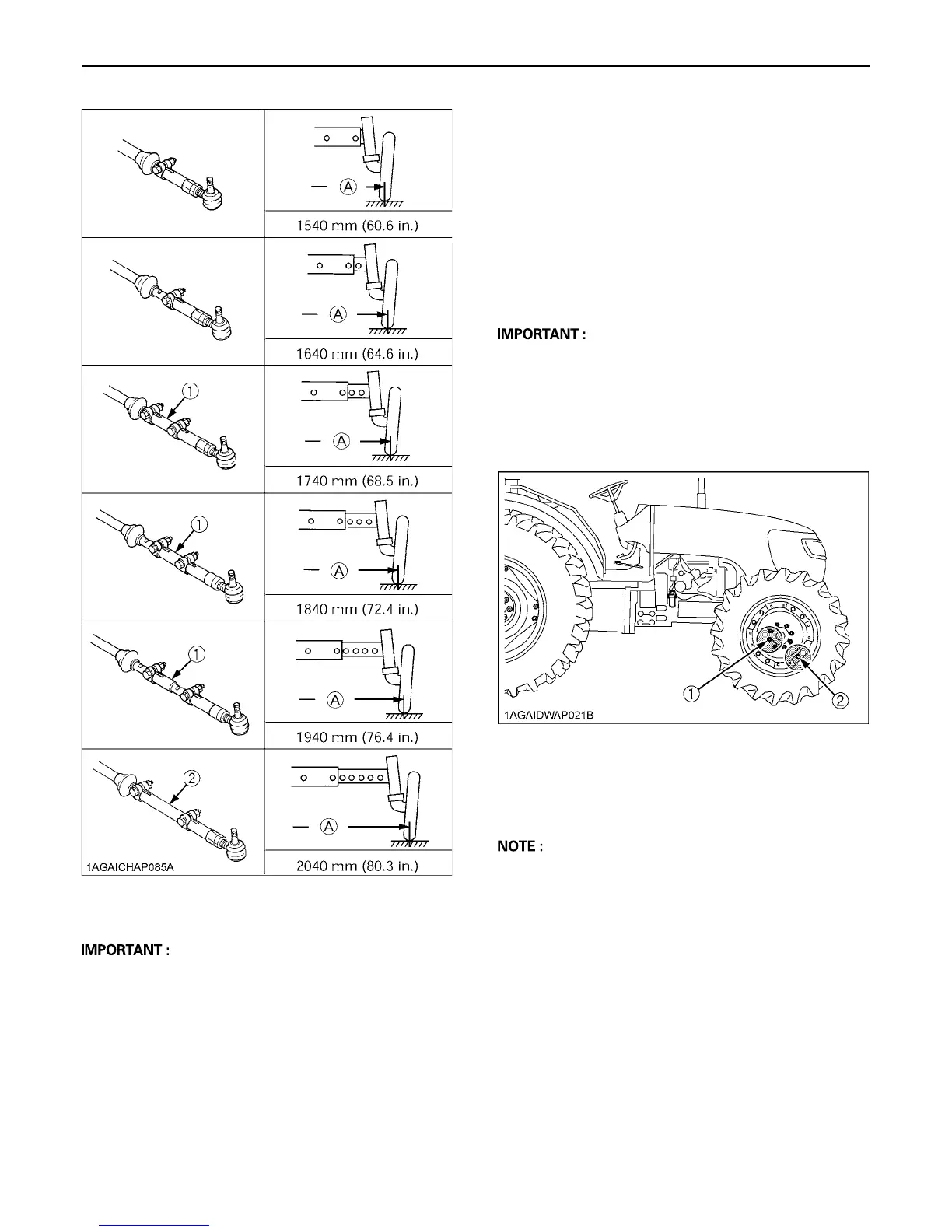

(1) Extension1 (short spacer)
(2) Extension2 (long spacer)
(A) "TREAD"
(1) 260 to 304 N-m (26.5 to 31 kgf-m) (192 to 224 ft-lbs)
(2) [Waffle wheel]
298 to 366 N-m (30.4 to 37.3 kgf-m) (220 to 270 ft-lbs)
[Except waffle wheel]
244 N-m (34.9 kgf-m) (180 ft-lbs)
To Next Page
