69PERIODIC SERVICE

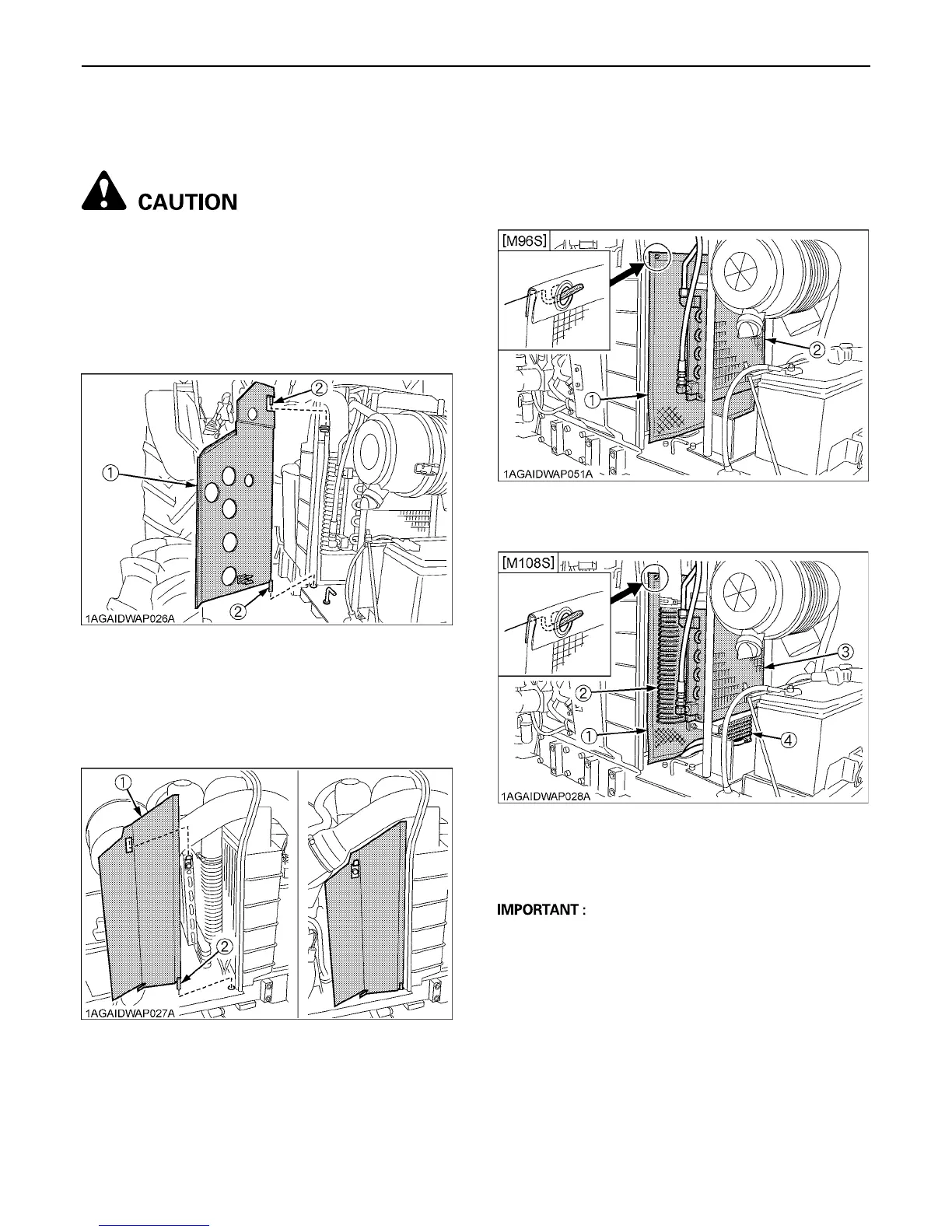

BCleaning Grill, Radiator Screen,
Intercooler and Oil Cooler
To avoid personal injury:
A Be sure to stop the engine before removing the
screen.
C Detaching the Panel [RH]
1. To open the panel (RH), pull its front outward.
2. Lift the panel until pin (A) clears the hole.
3. Pull the panel.
4. Attaching the panel is performed vice versa.
C Detaching the Panel (LH)
1. Lift the panel (LH) until pin (A) clears the hole.
2. Pull the panel (LH).
3. Attaching the panel is performed vice versa.
C Cleaning
1. Check front grill to be sure it is clean from debris.
2. Detach the radiator screen and remove all foreign
materials.
3. Check oil cooler and intercooler to be sure they are
clean from debris.
A Grill and screen must be clean from debris to prevent
engine from overheating and to allow good air intake
for air cleaner.
(1) Panel (RH)
(2) Pin (A)
(1) Panel (LH)
(2) Pin (A)
(1) Radiator screen
(2) Oil cooler
(1) Radiator screen
(2) Intercooler
(3) Oil cooler
(4) Fuel cooler
