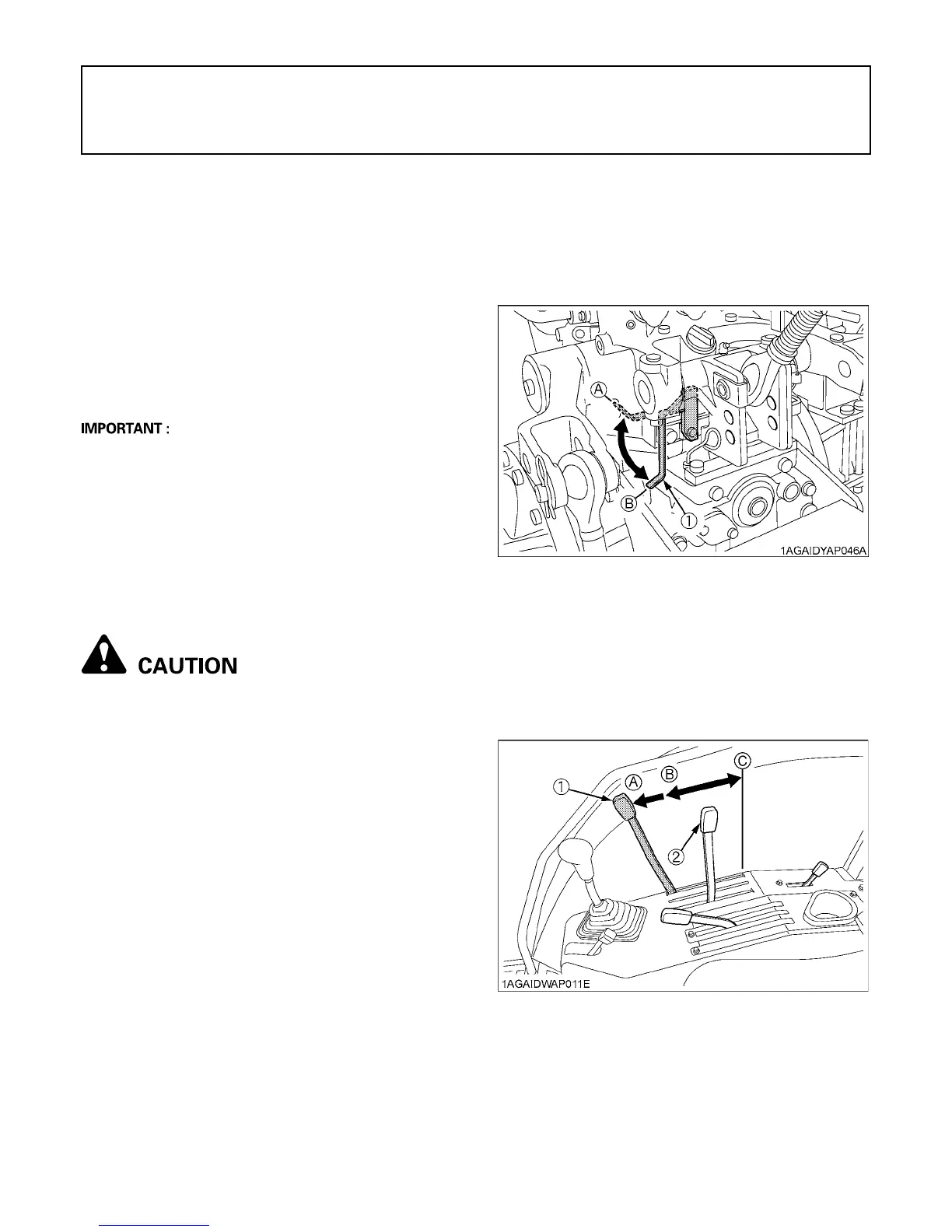

47HYDRAULIC UNIT
HYDRAULIC UNIT
The standard tractor has 5 hydraulic control systems as
shown below. Therefore, use the most appropriate
system for the implement you are using.
C 3-Point Hitch Control System
1. Position Control
2. Draft Control
3. Mixed Control
4. Float Control
C Remote Hydraulic Control System
5. Combined Flow Control
A Do not operate until the engine is warmed up. If
operation is attempted when the engine is still cold, the
hydraulic system may be damaged.
A If noises are heard when implement is lifting after the
hydraulic control lever has been activated, the
hydraulic mechanism is not adjusted properly. Unless
corrected, the unit will be damaged. Contact your
KUBOTA Dealer for adjustment.
3-POINT HITCH CONTROL SYSTEM
To avoid personal injury:
A Before using the 3-point hitch controls, ensure
that no person or object is in the area of the
implement or 3-point hitch. Do not stand on or
near the implement or between the implement
and tractor when operating the 3-point hitch
controls.
BDraft Stopper
To reduce the vibrations of attachments, set the draft
stopper to the "LOCK" position.
When using the draft control for plowing and similar
works, set the draft stopper to the "UNLOCK" position.
BPosition Control
This will control the working depth of 3-point hitch
mounted implement regardless of the amount of pull
required.
(1) Draft stopper (A) "LOCK"
(B) "UNLOCK"
(1) Position control lever
(2) Draft control lever
(A) "FLOAT"
(B) "DOWN"
(C) "UP"
