PTO40
B1000 rpm PTO Shaft
[if equipped]
To avoid personal injury:
A Be sure to observe the PTO shaft speed
prescribed for the individual implements. It is
extremely dangerous to run an implement at
high speed that is meant to be operated at low
speed. Use only when this higher rpm is
specifically recommended by the implement
manufacturer.

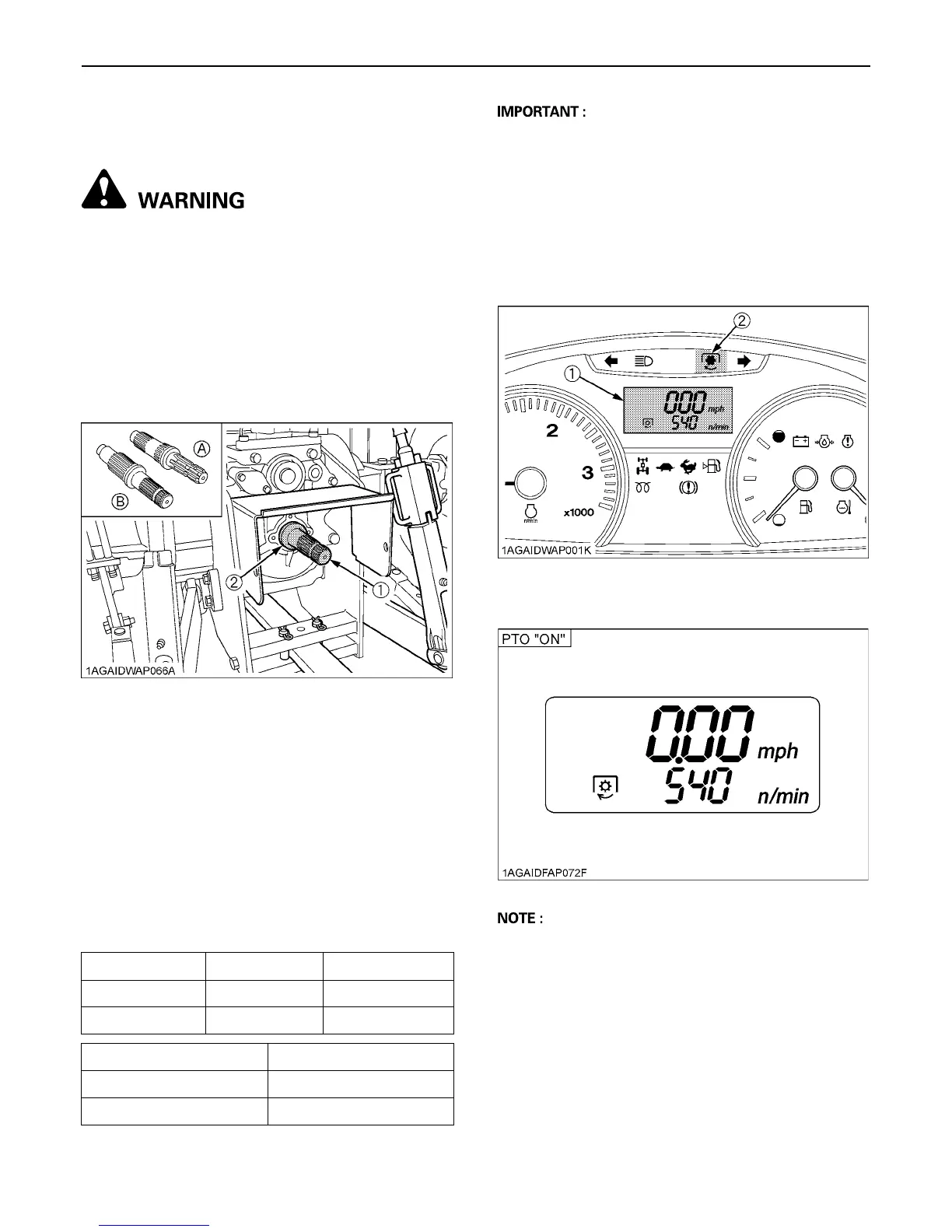

By interchanging the PTO shafts, two different PTO shaft
speeds can be obtained.
C PTO shaft interchanging procedure
1. The 6-spline 540 rpm PTO shaft is standard
equipment.
2. Place an oil pan under the PTO shaft to catch oil
spillage. Remove the snap ring, and then the PTO
shaft.
3. Install the 21-spline PTO shaft (1000 rpm). To ensure
that it is tight, push it in by turning.
4. Reinsert the snap ring.
5. Set the distance from drawbar pin hole to the rear end
of PTO shaft according to the following instructions.
A For maximum PTO shaft speeds of various
implements, see the implement Operator's Manual.
BLCD Monitor Message
1. The PTO rpm can be checked in the LCD monitor.
(See "PTO RPM / TRAVEL SPEED MONITOR" in
"OPERATING THE TRACTOR" section.)
2. When the PTO system gets engaged (ON), the
indicator lights up.
A When the PTO speed is changed from 540 rpm to
1000 rpm, it is necessary to switch the PTO speed
display mode. Otherwise the PTO speed will not get
correctly displayed in the LCD monitor. Such mode
switching is also needed when returning to the 540
rpm PTO speed.
(See "PTO RPM / TRAVEL SPEED MONITOR" in
"OPERATING THE TRACTOR" section.)
(1) PTO shaft
(2) Snap ring
(A) 540 rpm PTO shaft
(B) 1000 rpm PTO shaft
PTO Shaft Type Distance
540 rpm 6 - spline 355 mm (14 in.)
1000 rpm 21 - spline 406 mm (16 in.)
Engine speed rpm PTO speed rpm
2205 540
2210 1000
(1) LCD monitor
(2) PTO clutch indicator
To Next Page
